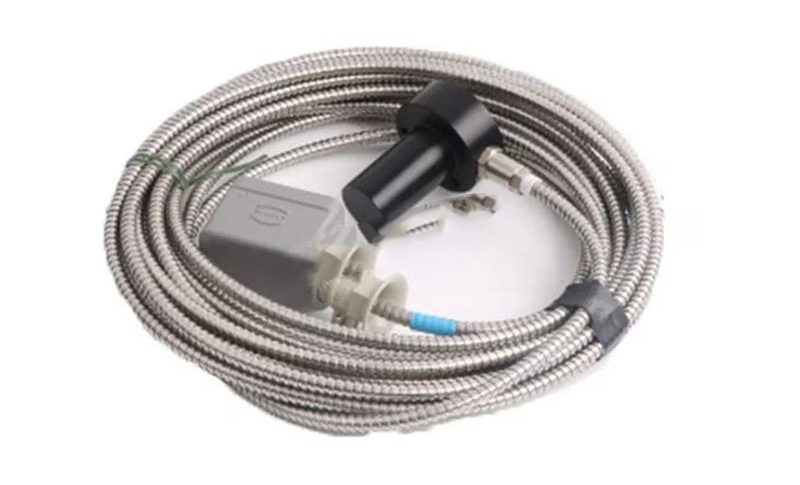

Epro PR9268/200-00 ElectroDynamic Velocity Sensor
Manufacturer:EPRO
Product No.:PR9268/200-00
Condition:Brand New & in Stock
Product Type:Electrodynamic Velocity Sensor
Product Origin:Germany
Payment:T/T, Western Union
Approvals:CE, UL, CSA
Warranty:12 months
Feature:Specification
Dimensions:4.1 cm × 15.9 cm × 10.8 cm
Weight:0.3 kg
Product Description
The EPRO PR9268/200-00 is an Electrodynamic Velocity Sensor designed for absolute vibration measurement. It ensures the reliability of turbomachinery in industries like power generation, oil and gas, and manufacturing.
Technical Specifications
Model Number: PR9268/200-00
Type: Electrodynamic Velocity Sensor
Measurement Type: Absolute vibration velocity
Sensitivity: 17.5 mV/mm/s
Frequency Range: 14 to 1000 Hz
Natural Frequency: 4.5 Hz ± 0.75 Hz @ 20°C (68°F)
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: 0% to 95% RH, non-condensing
Protection Rating: IP67
Material: Stainless steel
Mounting: M8-1.0 threaded stud
Measurement Direction: Vertical
Accuracy: ±5%
Linearity: < 2%
Protection Class: IP55
Humidity Range: 0-100% RH, non-condensing
