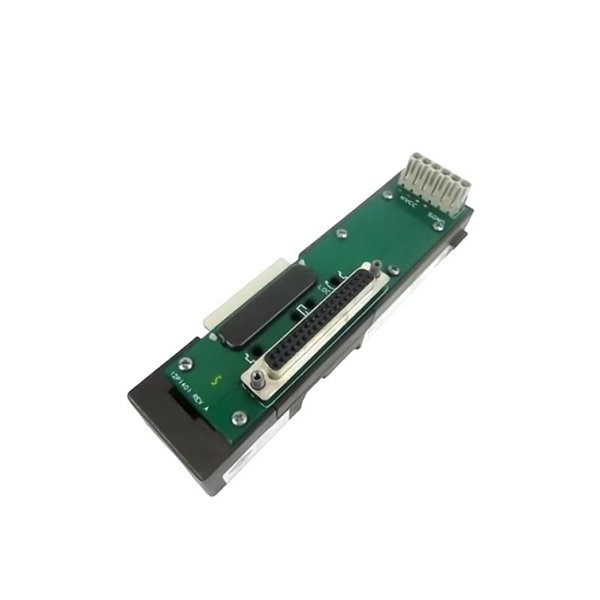

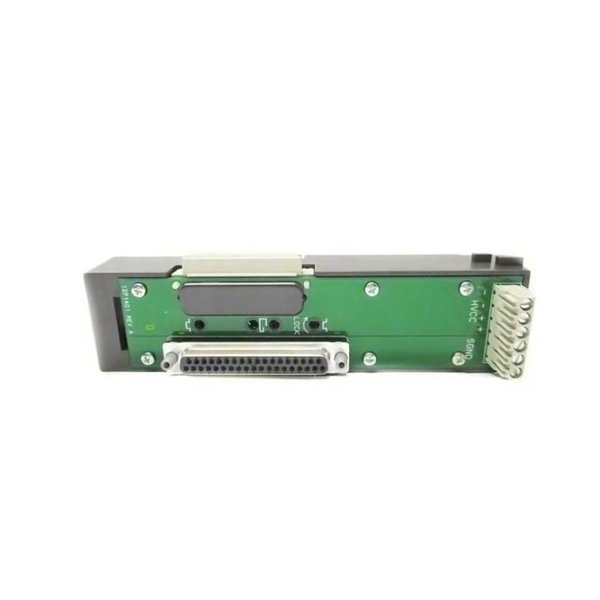

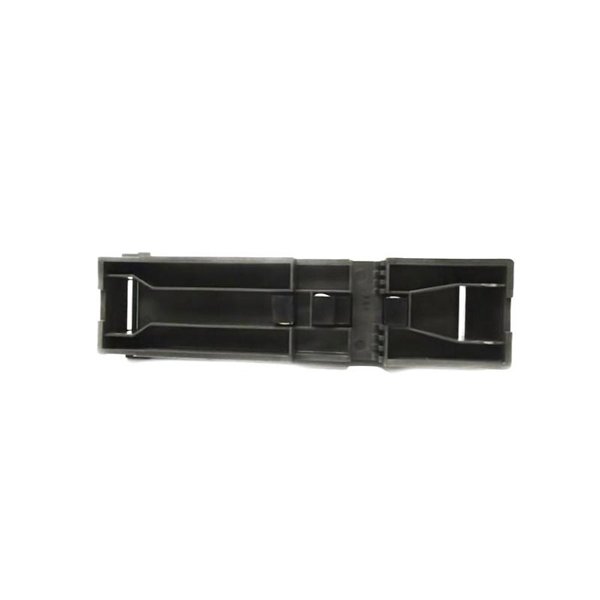

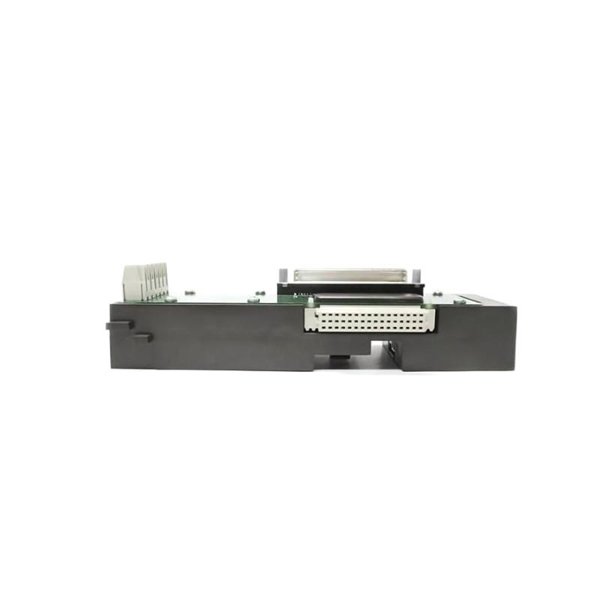

The Emerson KJ4001X1-HB1 Localbus Right Extender is a critical component within the Emerson DeltaV™ Distributed Control System (DCS) architecture. It functions as a Localbus extender, used to connect multiple I/O carriers or expansion carriers in larger and more distributed control environments. As its name suggests, the “Right Extender” is installed on the right side of an I/O carrier and provides a secure and high-speed communication link between adjacent carriers or system backplanes.

This model ensures the continuity of the DeltaV Localbus, which is Emerson’s proprietary internal high-speed bus that supports module-to-module communication within the system. The KJ4001X1-HB1 plays a vital role in achieving the scalability and modularity for which DeltaV systems are known.

Compact, rugged, and easy to install, the KJ4001X1-HB1 provides high availability and performance for mission-critical process control environments.

Technical Specifications

Product Applications

The Emerson KJ4001X1-HB1 is widely used in distributed control system infrastructures where extended modular connectivity is required. Its primary application environments include:

• Large-scale Distributed Process Automation: Facilitates the physical expansion of I/O in segmented layouts across plants.

• Oil and Gas Refineries: Ensures robust communication between multiple control nodes within modular DCS enclosures.

• Power Plants: Supports interconnection between different control and I/O racks.

• Chemical Manufacturing: Vital in I/O-dense environments requiring scalable system growth.

• Pharmaceutical Facilities: Aids in regulated environments where reliability and integrity of control signals are paramount.

• Water and Wastewater Plants: Ensures signal consistency across extended process areas.

Product Advantages

• DeltaV System Compatibility: Seamless integration with Emerson DeltaV control hardware.

• Compact and Lightweight: Takes minimal space inside control cabinets, allowing dense configurations.

• Plug-and-Play Design: Tool-free snap-on mounting minimizes installation time and human error.

• Reliable Bus Continuity: Ensures stable communication between baseplates for uninterrupted control.

• Wide Operating Range: Performs reliably in harsh industrial temperature and humidity conditions.

• Maintenance-Free: No moving parts or serviceable components, reducing downtime and cost.

• Environmentally Rugged: Tolerates vibration and shock from nearby machinery or industrial equipment.

• Standards Compliant: Complies with CE, UL, CSA, and relevant ATEX certifications.

• Improved System Scalability: Enables cost-effective expansion without redesigning control layouts.

• Long Service Life: Built with durable materials for extended use in industrial applications.

Frequently Asked Questions (FAQ)

1. What is the function of the Emerson KJ4001X1-HB1?

   It extends the DeltaV Localbus to the right, allowing the connection of additional I/O carriers or modules.

2. Can this extender be used independently?

   No, it must be used within the DeltaV control architecture, typically alongside I/O baseplates.

3. Where should I install the KJ4001X1-HB1?

   It is mounted on the right-hand side of a DeltaV I/O carrier or baseplate.

4. Is the installation process tool-free?

   Yes, it snaps into place without the need for tools, facilitating quick installation.

5. Does this unit provide electrical isolation?

   Yes, it is electrically insulated from field wiring to avoid interference.

6. Is this compatible with legacy DeltaV systems?

   It is compatible with DeltaV versions that support Localbus infrastructure, including most modern builds.

7. Can it operate in outdoor environments?

   Only when placed inside properly rated enclosures as it is not weatherproof by itself.

8. What if I install it incorrectly?

   Improper installation may cause a Localbus communication fault; always follow manufacturer guidance.

9. Does it require firmware or software configuration?

   No software configuration is required. It functions automatically upon correct hardware installation.

10. Can I use more than one KJ4001X1-HB1 in a system?

    Yes, multiple extenders can be used for each required I/O baseplate connection.
