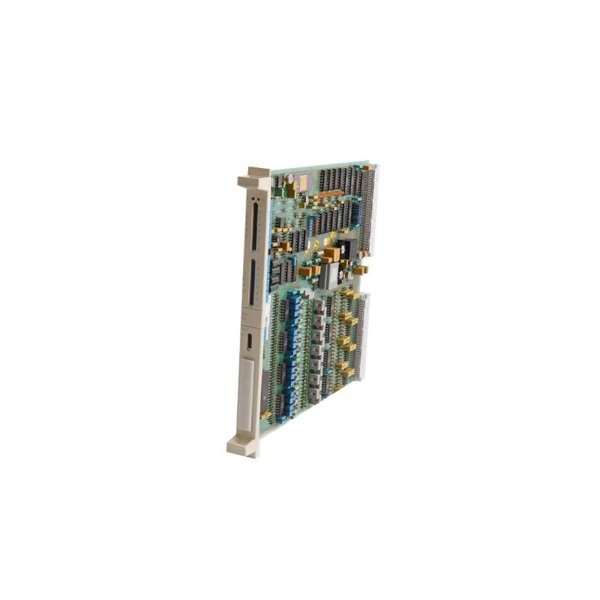

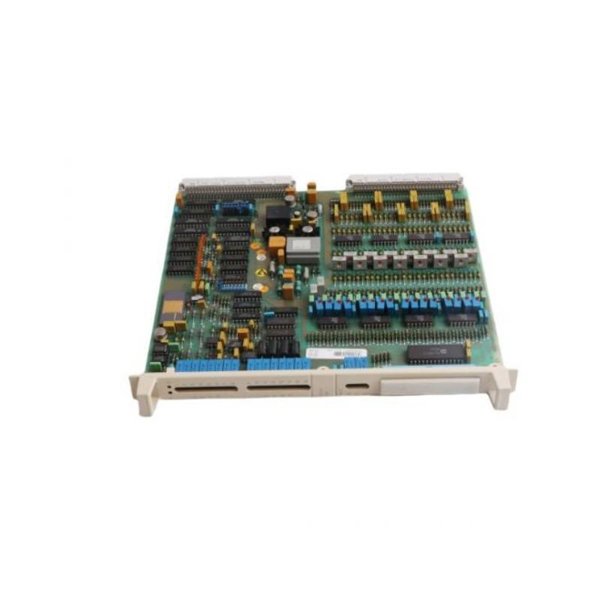

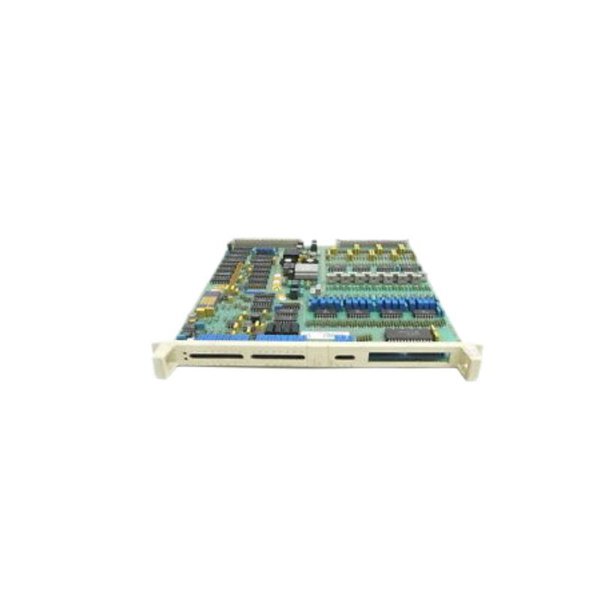

ABB DSAI 130 57120001-P DS analog Input unit
Manufacturer:ABB
Product Number:DSAI 130 57120001-P
Condition:DS analog input unit
Origin:Sweden
Dimensions:327.6 x 14.4 x 236.7mm
Weight:0.52 kg
Views:47
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
Its compact form factor, rugged build quality, and compatibility with legacy as well as modern systems make it a highly versatile component in ABB’s extensive automation product lineup.
Product Features
Multi-channel analog input capability
High-resolution signal conversion for precise data acquisition
Noise-resistant design for industrial environments
Seamless integration with ABB Advant Master and Symphony DCS platforms
Long operational life and reduced maintenance requirements
DIN-rail mountable for easy installation
Field-proven reliability in continuous process industries
Robust diagnostic features for simplified troubleshooting
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | DSAI 130 57120001-P |
| Manufacturer | ABB |
| Module Type | Analog Input Module |
| Input Channels | 8 Analog Channels |
| Signal Range | 0–20 mA, 4–20 mA (configurable) |
| Resolution | 12-bit |
| Input Impedance | > 250 Ohms |
| Isolation | Galvanic Isolation per Channel |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | < 5 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Mounting Type | DIN Rail |
| Dimensions | 327.6 x 14.4 x 236.7mm |
| Weight | 0.52 kg |
Product Applications
Chemical and petrochemical processing plants
Power generation and distribution networks
Water and wastewater treatment facilities
Metallurgical and mining operations
Pulp and paper manufacturing lines
Food and beverage industrial control
Oil and gas instrumentation systems
Pharmaceutical production monitoring
Product Advantages
High signal integrity with galvanic isolation
Durable industrial-grade design for 24/7 operations
Backward compatibility with legacy ABB systems
Precise signal processing ensures better control decisions
Low power consumption reduces operational costs
Compact design saves panel space
Quick replacement and field installation-friendly
Trusted quality from ABB’s engineering excellence
Frequently Asked Questions (FAQ)
Q1: What type of signals can ABB DSAI 130 process?
A1: It can process standard analog current signals like 0–20 mA and 4–20 mA, commonly used in industrial sensors.
Q2: Is this module compatible with ABB Advant Master systems?
A2: Yes, the DSAI 130 is designed specifically for use with ABB Advant Master and Symphony DCS platforms.
Q3: How is the module mounted?
A3: It is DIN-rail mountable, simplifying installation and system expansion.
Q4: Does the module offer input channel isolation?
A4: Yes, each input channel is galvanically isolated to prevent cross-interference.
Q5: Can it be used in high-humidity environments?
A5: Yes, it operates reliably in humidity levels up to 95% non-condensing.
Q6: What diagnostic features does the DSAI 130 provide?
A6: The module includes built-in diagnostic functions to detect signal faults and wiring errors.
Q7: Is it hot-swappable?
A7: No, for safety and system integrity, power should be removed before replacing the module.
Q8: What is the expected lifespan of the DSAI 130?
A8: Under normal conditions, it can function reliably for over 10 years.
Q9: What certifications does the module carry?
A9: The module meets standard industrial certifications for safety and EMC compliance.
Q10: Can the module operate in outdoor enclosures?
A10: It is designed for indoor panels but can be used in sealed outdoor enclosures with temperature and humidity control.
