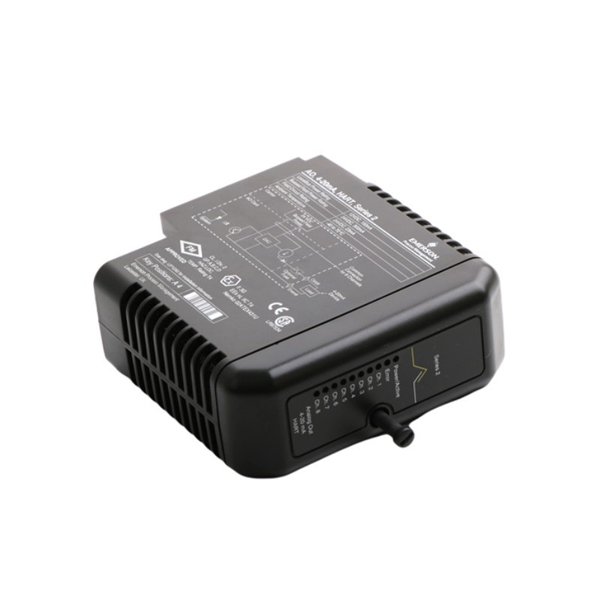

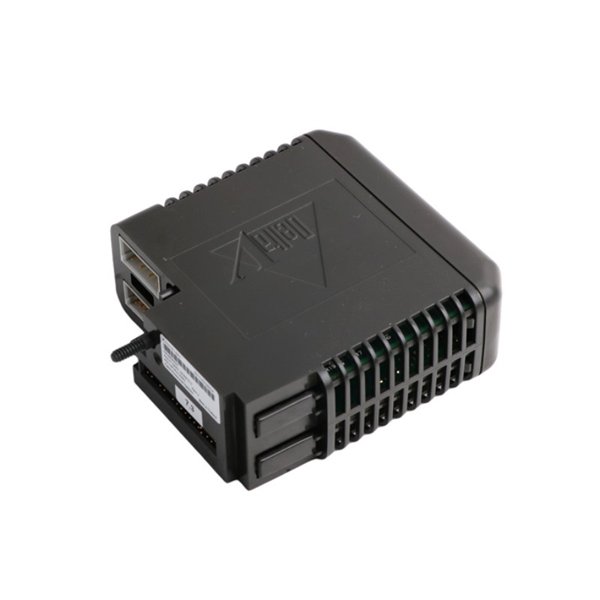

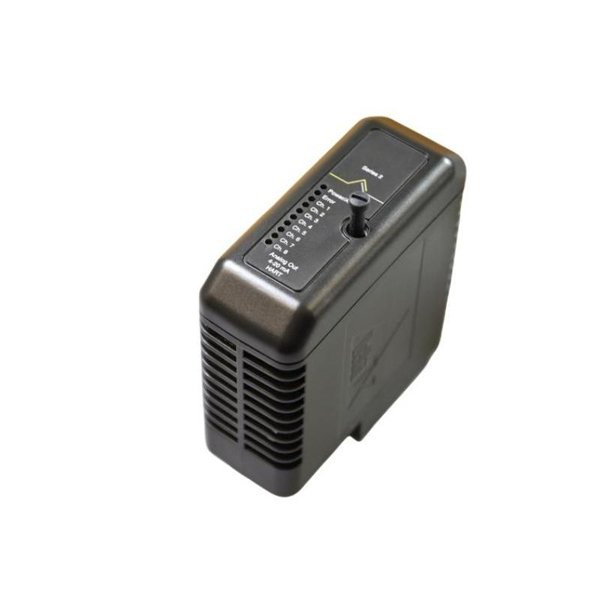

Emerson KJ3221X1-BA2 Analog Output Module

The Emerson KJ3221X1-BA2 Analog Output Module is a high-performance I/O module designed for DeltaV distributed control systems (DCS). It provides precise and reliable analog signal outputs to actuators, control valves, and other field devices. With advanced diagnostics, redundancy support, and hot-swappable functionality, the module ensures operational reliability and minimizes system downtime. It is widely applied in critical process automation industries requiring accurate and stable analog control.

Key Features

• Provides multiple isolated analog output channels

• Supports both current (mA) and voltage (V) output ranges

• High accuracy and stable signal generation

• Integrated self-diagnostics for enhanced system reliability

• Redundant configuration support for mission-critical applications

• Hot-swappable for quick replacement without downtime

• LED indicators for status and fault monitoring

• Designed for seamless integration with DeltaV DCS systems

Technical Specifications

Industry Applications

• Oil & Gas – precise control of valves and actuators in process plants

• Petrochemical – reliable output for critical process operations

• Power Generation – control of turbines, generators, and field devices

• Pharmaceuticals – regulated control outputs for batch and continuous processes

• Water & Wastewater – analog control for pumps, motors, and treatment systems

Advantages

• High accuracy and stable analog output performance

• Supports both current and voltage output signals

• Built-in diagnostics reduce downtime and maintenance costs

• Hot-swappable for uninterrupted plant operation

• Compact design optimized for DeltaV control systems

Frequently Asked Questions (FAQ)

Q1: What is the function of the KJ3221X1-BA2?

It provides accurate analog output signals for control valves, actuators, and other field devices.

Q2: How many channels does the module support?

It provides 8 isolated analog output channels.

Q3: What signal types does it support?

It supports current (4–20 mA, 0–20 mA) and voltage (±10 V) outputs.

Q4: What is the resolution of the analog output?

It offers 16-bit resolution for precise control.

Q5: Can it be configured for redundancy?

Yes, it supports redundant operation for critical applications.

Q6: Does the module support hot-swapping?

Yes, it can be replaced online without shutting down the system.

Q7: How is module health monitored?

It has built-in self-diagnostics and LED indicators for status and faults.

Q8: What is the maximum load resistance for current output?

It supports up to 750 Ω load resistance.

Q9: What environment can it operate in?

It operates from 0 °C to +60 °C and can be stored from -40 °C to +85 °C.

Q10: Is the module compliant with industrial standards?

Yes, it complies with CE, UL, RoHS, and IEC standards.
