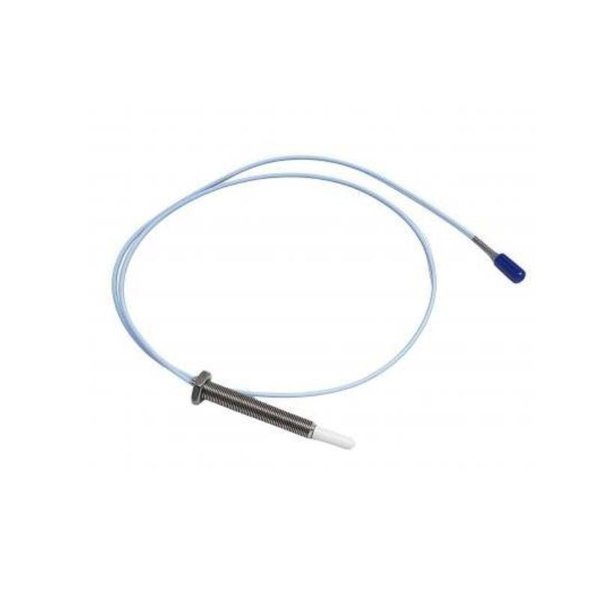

The Bently Nevada 330171-00-12-10-01-CN 3300 5mm Proximity Probe is an advanced industrial sensor designed for accurate measurement of displacement and vibration in rotating machinery components. As part of Bently Nevada’s trusted 3300 series, this probe offers high-performance capabilities, ideal for a wide variety of industrial applications.

This model features a 5mm sensing range, allowing it to detect minute displacements with high precision. It is typically used in machinery condition monitoring systems where early detection of issues such as misalignment, imbalance, or wear is essential. By accurately monitoring the position of shafts and other rotating components, the probe helps operators identify potential issues before they lead to more serious failures, thus minimizing downtime and repair costs.

The 3300 5mm Proximity Probe is designed for integration into both existing and new monitoring systems, providing real-time, continuous data on the health of machinery. Its robust design and high resistance to industrial environments make it suitable for use in various sectors, including power generation, petrochemical, oil and gas, and manufacturing.

Product Parameters

Product Applications

The Bently Nevada 330171-00-12-10-01-CN 3300 5mm Proximity Probe is highly versatile and is used in various applications where precise measurements of shaft displacement and vibrations are required. Key applications include:

• Turbine Monitoring: The probe plays a critical role in monitoring the condition of turbine shafts. It helps detect misalignments, imbalances, and other faults early, preventing costly downtime.

• Compressor Systems: In compressors, the probe measures shaft displacement, enabling operators to monitor alignment and vibration, which ensures long-term operational efficiency.

• Electric Motor Monitoring: The proximity probe tracks shaft displacement and vibrations in electric motors, helping identify early signs of wear or misalignment and improving motor performance.

• Pump Systems: The 3300 5mm Proximity Probe is used to monitor pump shafts, detecting displacement and potential issues such as misalignment, which can affect the pump’s performance.

• Conveyor Systems: It ensures the correct operation of conveyor systems by monitoring shaft displacement and alignment, preventing unexpected stoppages and minimizing maintenance costs.

• General Rotating Equipment: The probe is also used in other rotating machinery like fans, blowers, and mixers to monitor displacement, vibration, and overall health, ensuring optimal performance and early failure detection.

Advantages of the Product

1. High Precision: The 3300 5mm Proximity Probe offers extremely accurate displacement measurements, ensuring that even the smallest changes in machinery performance are detected early.

2. Compact Size: With a sensing range of 5mm and a total length of 1.0 meter, the probe is suitable for installation in spaces where larger probes would not fit, offering flexibility in various machinery setups.

3. Durability: The probe is built to withstand harsh industrial environments, including high levels of vibration (up to 50 g) and shock (up to 100 g), as well as a wide operating temperature range from -40°C to +85°C.

4. Cost-Effective Maintenance: By providing early warnings of potential faults such as misalignment or imbalance, the probe enables predictive maintenance, helping to avoid costly emergency repairs and downtime.

5. Versatile Integration: The 4-20 mA analog output ensures the probe can be easily integrated into existing condition monitoring systems for real-time data collection and analysis.

6. Long Lifespan: The probe’s rugged construction and high-quality materials contribute to its long lifespan, requiring minimal maintenance over time.

7. Wide Frequency Response: The probe offers a frequency response range of up to 50 kHz, capturing detailed displacement and vibration data for more precise diagnostics and performance tracking.

8. Enhanced Safety: By detecting mechanical issues before they lead to catastrophic failures, the probe helps improve safety in industrial operations by minimizing the risk of equipment breakdowns.

9. Flexible Mounting: The probe can be mounted in various ways, either threaded or bolt-on, allowing for easy installation in different machinery types and configurations.

10. Trusted Brand: As part of the Bently Nevada 3300 series, the probe benefits from the reputation of a leading brand in machinery monitoring, known for producing reliable and accurate products.

FAQs

1. What is the sensing range of the 3300 5mm Proximity Probe?

   • The sensing range of the probe is 5mm, which makes it suitable for high-precision measurements of small displacements in rotating machinery.

2. What is the total length of the Bently Nevada 3300 5mm Proximity Probe?

   • The total length of the probe is 1.0 meter, allowing it to be used in various machine configurations with adequate reach.

3. What type of power supply is required for the 3300 5mm Proximity Probe?

   • The probe requires a DC power supply in the range of 18-30 V to operate effectively.

4. How does the 3300 5mm Proximity Probe contribute to predictive maintenance?

   • By continuously monitoring shaft displacement and vibrations, the probe helps detect early signs of misalignment or imbalance, enabling proactive maintenance to avoid unexpected failures.

5. What is the vibration resistance of the 3300 5mm Proximity Probe?

   • The probe can resist vibrations up to 50 g within the frequency range of 20 to 2000 Hz, ensuring reliable performance in high-vibration environments.

6. What is the shock resistance of the Bently Nevada 3300 5mm Proximity Probe?

   • The probe can withstand shock levels of up to 100 g (1 ms), making it highly durable even in environments prone to mechanical shocks.

7. What is the output signal of the 3300 5mm Proximity Probe?

   • The probe provides a 4-20 mA analog output signal, which is commonly used in machinery monitoring systems for real-time performance tracking.

8. What is the operating temperature range of the Bently Nevada 3300 5mm Proximity Probe?

   • The probe operates in temperatures ranging from -40°C to +85°C, making it suitable for use in both cold and hot industrial environments.

9. In which industries can the 3300 5mm Proximity Probe be used?

   • The probe is widely used in industries such as power generation, oil & gas, petrochemical, manufacturing, and more for machinery health monitoring.

10. How does the 3300 5mm Proximity Probe integrate into existing systems?

    • The 4-20 mA analog output signal allows the probe to be easily integrated into existing condition monitoring and control systems for continuous real-time monitoring.
