Manufacturer:Schneider
Product Number:TM5ACLPR1
Product Type:Right Side
Origin:France
Dimensions:16 x 53 x 105 mm
Weight:0.025 kg
Views:82
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

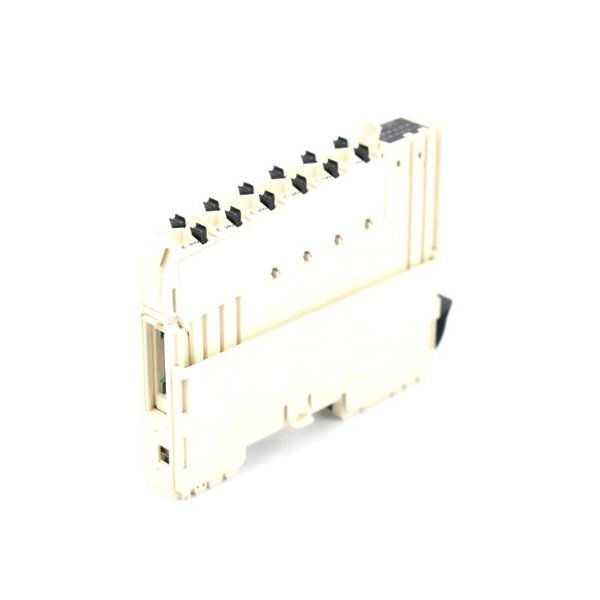

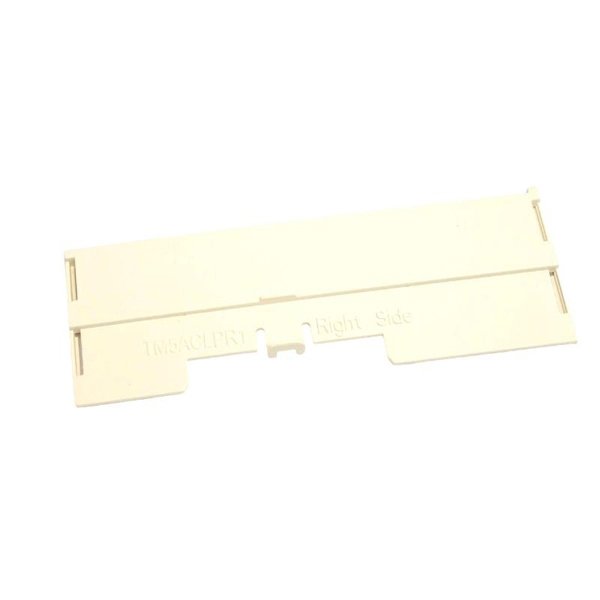

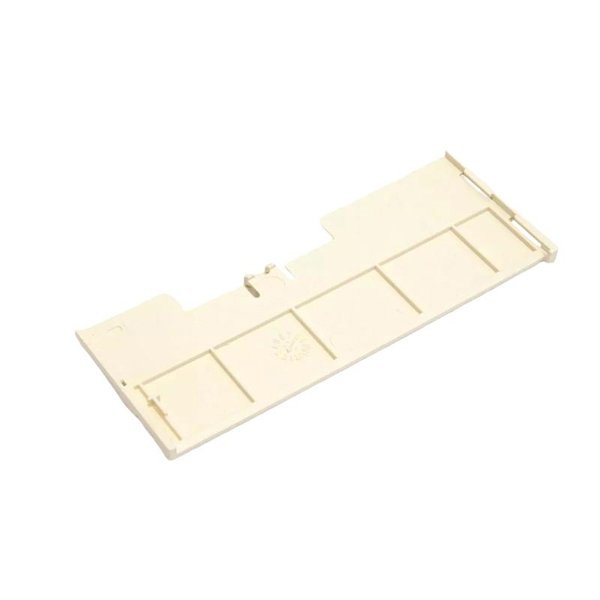

The Schneider TM5ACLPR1 is a Right Side Connector Module from the TM5 modular I/O system. It is designed to provide secure and efficient termination of the I/O bus at the rightmost end of the configuration. Compact and lightweight, it ensures a clean and reliable installation in automation and machine control environments.
| Parameter | Description |
|---|---|
| Product Type | Right Side Connector Module |
| Series | Modicon TM5 |
| Mounting Type | DIN Rail |
| Function | Terminates TM5 I/O Bus |
| Compatibility | TM5 System Modules |
| Dimensions (W x H x D) | 16 x 53 x 105 mm |
| Weight | 0.025 kg |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
Modular machine control systems
Distributed I/O configurations
Packaging and material handling equipment
Industrial automation enclosures
Automotive production lines
Food and beverage machinery
Compact Design: Saves space in control cabinets
Ease of Installation: Simple clip-on to DIN rail
Reliable Bus Termination: Ensures signal integrity
Modular Flexibility: Supports scalable architecture
Robust Construction: Operates in harsh industrial environments
Q1: What is the function of the TM5ACLPR1 module?
A1: It acts as a termination point on the right side of a TM5 I/O configuration to close the bus system properly.
Q2: Is it necessary to use TM5ACLPR1 in every TM5 system?
A2: Yes, it must be installed at the end of the I/O configuration to ensure correct communication and termination.
Q3: Can TM5ACLPR1 be used with TM7 modules?
A3: No, TM5ACLPR1 is specifically designed for the TM5 system and is not compatible with TM7 modules.
Q4: What type of environment is TM5ACLPR1 suitable for?
A4: It’s suitable for industrial environments, within temperature ranges from -25°C to +55°C.
Q5: Does TM5ACLPR1 require power supply?
A5: No, it does not require power as it functions only as a passive bus terminator.
Q6: Is the installation tool-free?
A6: Yes, it can be installed and removed without tools using a DIN rail mounting system.
Q7: Can the module be reused in a new setup?
A7: Yes, if undamaged, it can be reused in another TM5 configuration.
Q8: What material is the housing made of?
A8: The housing is made of industrial-grade plastic suitable for standard cabinet environments.
Q9: What is the IP rating of this module?
A9: It has an IP20 rating, meaning it’s protected from solid objects greater than 12mm but not from liquids.
Q10: Does TM5ACLPR1 provide surge protection?
A10: No, this module does not include surge protection—it only serves as a physical termination.
