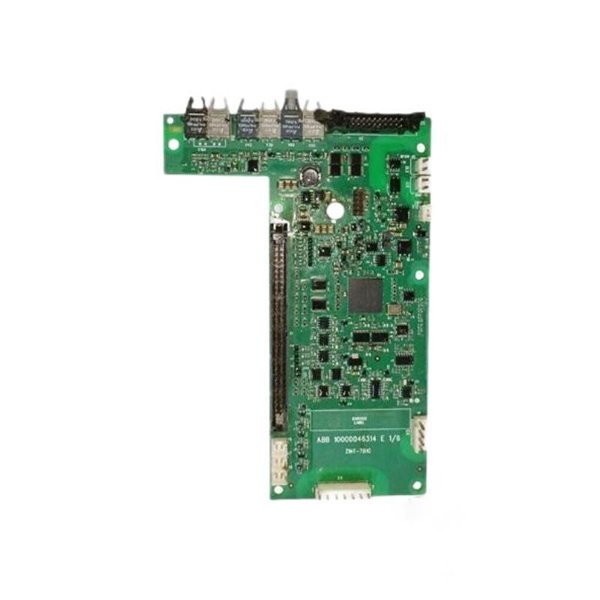

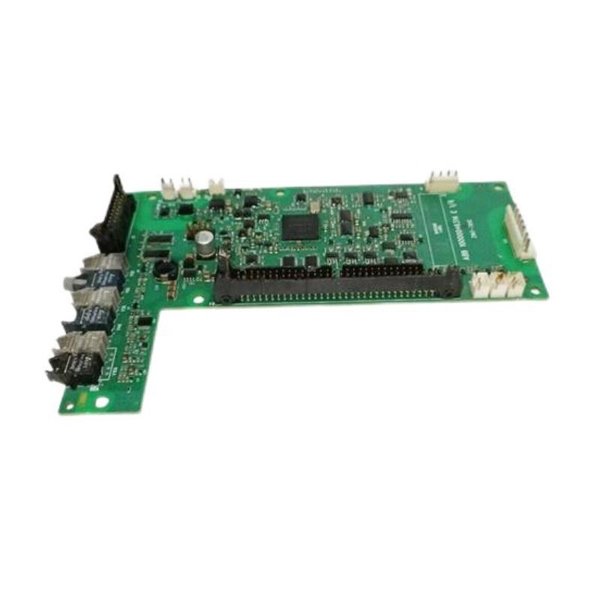

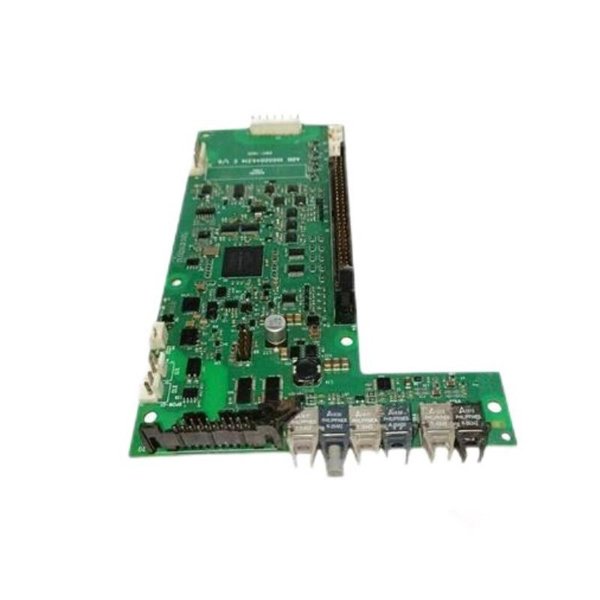

The ABB ZINT-7B1C 3AUA0000119630 Interface Board is an advanced, high-performance signal interface module designed to enhance communication and signal processing within ABB inverter and drive systems. Serving as a vital link between ABB control platforms and field devices, this board ensures accurate, stable, and secure signal transmission in demanding industrial environments.

Engineered according to ABB’s rigorous industrial standards, the ZINT-7B1C enables seamless integration, supports diverse signal types, and provides robust electrical isolation for enhanced system protection. Its compact design, durability, and compatibility with ABB’s inverter systems make it an ideal choice for industries where reliable signal management is critical.

Key Features

• High-reliability interface for signal transmission and processing

• Compatible with ABB inverter platforms and automation systems

• Supports both analog and digital signal connections

• Galvanically isolated channels for enhanced safety

• Industrial-grade electromagnetic compatibility (EMC)

• Real-time system status indication via diagnostic LEDs

• Space-saving, compact design for easy installation

• Built to operate in harsh environmental conditions

Technical Specifications

Product Advantages

• Reliable Signal Integration: Provides stable and accurate signal processing for ABB inverter systems

• Enhanced Safety: Galvanic isolation protects devices and operators from electrical faults

• Versatile Signal Compatibility: Supports both analog and digital signals for broad industrial use

• Compact Footprint: Efficient design fits within tight control cabinets or inverter enclosures

• Simplified Diagnostics: Integrated LEDs allow quick visual system status monitoring

• Industrial Durability: Withstands vibrations, temperature fluctuations, and harsh operating environments

• Flexible Application: Suitable for diverse automation systems, ensuring seamless control integration

• Efficient Installation: Plug-and-play compatibility reduces system setup and maintenance time

Typical Applications

• Process Automation: Signal interfacing for precise control of motors, drives, and process equipment

• Power Generation: Integration within turbine control and energy management systems

• Oil & Gas Sector: Reliable signal transmission for upstream, midstream, and downstream operations

• Water Treatment Facilities: Stable signal processing for pump, valve, and monitoring systems

• Manufacturing Industries: Supports production lines, conveyors, and automated machinery

• HVAC Systems: Enhances control for ventilation, heating, and cooling operations

• Marine and Offshore Applications: Robust communication for shipboard and offshore equipment

Frequently Asked Questions (FAQ)

1. What is the primary function of the ABB ZINT-7B1C Interface Board?

   It enables reliable communication and signal processing between ABB control systems and field devices.

2. Is the ZINT-7B1C compatible with all ABB inverter platforms?

   It is compatible with a wide range of ABB low-voltage inverters and drives; specific compatibility depends on system configuration.

3. Does the board support both analog and digital signals?

   Yes, it supports analog (voltage/current) and digital (discrete) signal connections.

4. What type of electrical isolation is provided?

   The board offers galvanic isolation for all signal channels, enhancing safety and system reliability.

5. Are diagnostic features included?

   Yes, integrated LEDs provide real-time system status and fault detection.

6. What is the recommended installation environment?

   The module is designed for mounting inside control cabinets or inverter enclosures with IP20 protection.

7. What is the operating temperature range of the ZINT-7B1C?

   It operates reliably between -25°C to +70°C.

8. How is the board powered?

   It draws power directly from the inverter’s internal control circuitry.

9. Can the ZINT-7B1C be used in environments with electrical noise?

   Yes, the board complies with IEC 61000-4 EMC standards for reliable operation in high-noise environments.

10. What are the dimensions and weight of the module?

    The module measures 100 x 120 x 25 mm and weighs approximately 0.15kg.
