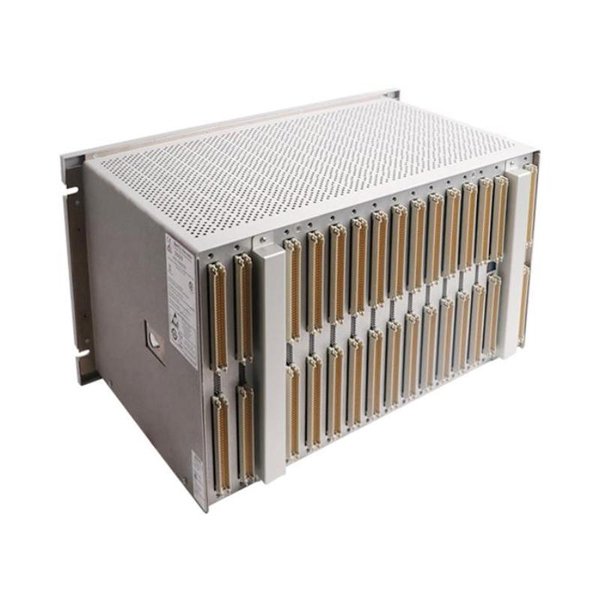

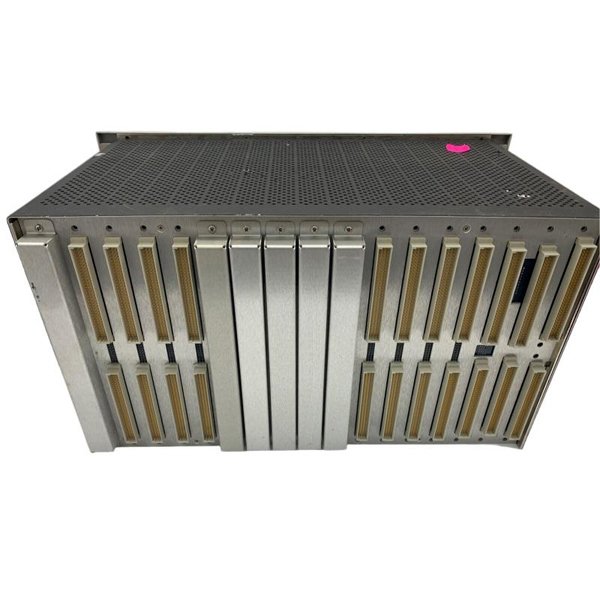

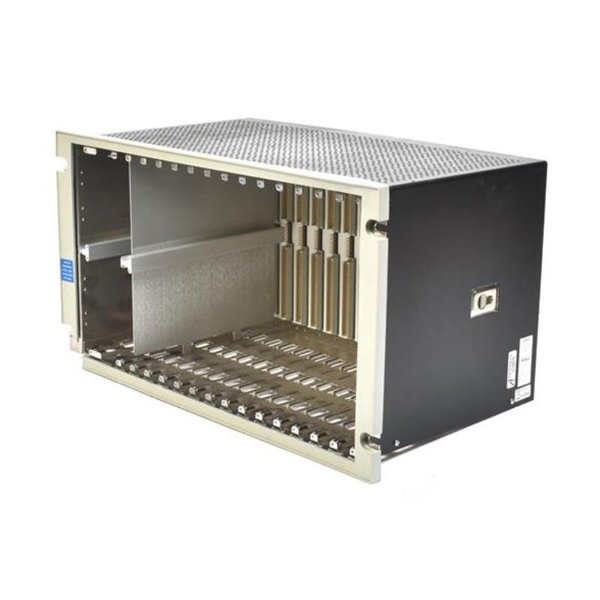

Bently Nevada 3500/05-02-04-01-00-01 3500/05 System Rack

The model number 3500/05-02-04-01-00-01 identifies specific configuration details such as rack size, mounting type, I/O module type, and grounding configuration. This model is designed for panel mounting with an internal barrier and low-voltage ground.

Its modularity, reliability, and compatibility with various 3500 Series modules make it suitable for use in a wide range of industries, including power generation, oil & gas, petrochemical, and heavy manufacturing.

Technical Specifications

Product Applications

The Bently Nevada 3500/05-02-04-01-00-01 System Rack is widely deployed across industries for critical equipment protection and real-time condition monitoring. Typical application areas include:

• Gas and steam turbines

• Centrifugal compressors

• Pumps and fans

• Electric motors and generators

• Gearboxes and rolling mills

• Marine propulsion systems

• Petrochemical rotating assets

By hosting various vibration and process modules, the rack plays a central role in ensuring operational reliability, maintenance planning, and asset longevity.

Product Advantages

• Modular Design: Supports up to 14 modules, enabling customized protection and monitoring solutions.

• High System Availability: Redundant power and communication options minimize the risk of failure.

• Flexible Mounting: Panel mount configuration allows for installation in different control cabinets.

• Integrated Safety: Internal barriers improve electrical isolation and protect sensitive systems.

• Standard Compliance: Compatible with industrial standards, including API 670 machinery protection.

• Seamless Integration: Easily connects with control systems via TDI modules and Ethernet.

• Durable Build: Designed to withstand harsh industrial conditions with robust chassis and finish.

• Scalable System: Suitable for both small-scale and large-scale machine setups.

• Fast Module Replacement: Hot-swappable modules reduce downtime during maintenance.

• Long Service Life: Proven reliability in continuous operation environments.

FAQ

Q1: What is the maximum number of modules supported in this rack?

A1: The rack can support up to 14 modules, including monitoring, power supply, and communication modules.

Q2: Is this rack compatible with redundant power supply configurations?

A2: Yes, it can support dual 3500/15 Power Supply Modules for redundancy.

Q3: What type of mounting does this specific model use?

A3: Model 3500/05-02-04-01-00-01 is designed for panel mounting.

Q4: What kind of grounding configuration does this rack offer?

A4: It uses a low-voltage ground setup, suitable for systems with dedicated grounding needs.

Q5: Can this rack be used in hazardous environments?

A5: Yes, when used with certified modules and internal barriers, it supports use in hazardous locations.

Q6: What is the recommended ambient temperature range for operation?

A6: The rack operates best within -30°C to +65°C.

Q7: What communication interfaces are supported?

A7: The rack supports TDI modules, which allow Ethernet and System 1 connectivity.

Q8: Is this rack backward compatible with older 3300 series modules?

A8: No, the 3500 rack and modules are not compatible with the older 3300 series.

Q9: Does it come pre-wired, or is wiring required during installation?

A9: Wiring must be completed during installation based on the specific module configuration.

Q10: What kind of maintenance does the 3500 rack require?

A10: Periodic dust cleaning and ensuring solid module contacts are the primary maintenance tasks. Modules themselves are hot-swappable and easy to inspect.
