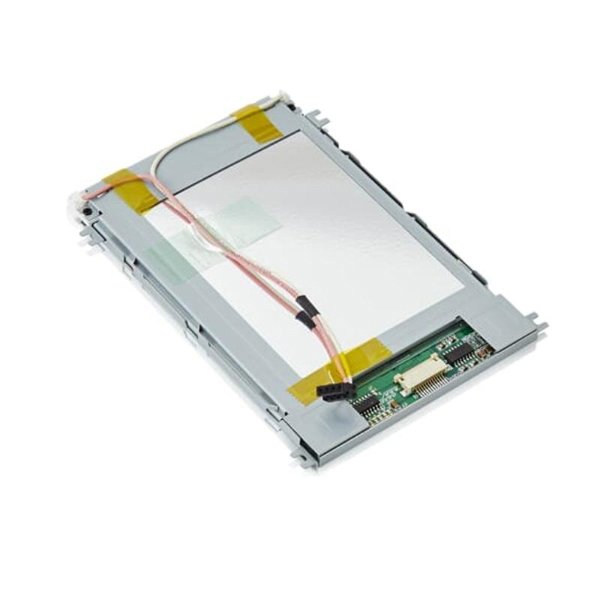

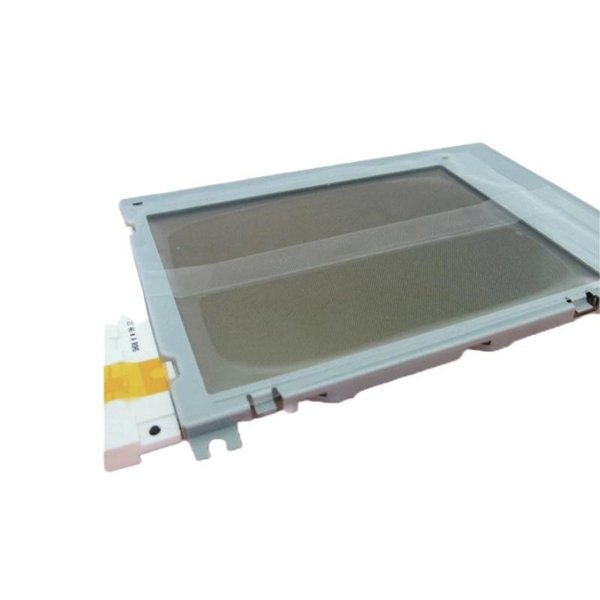

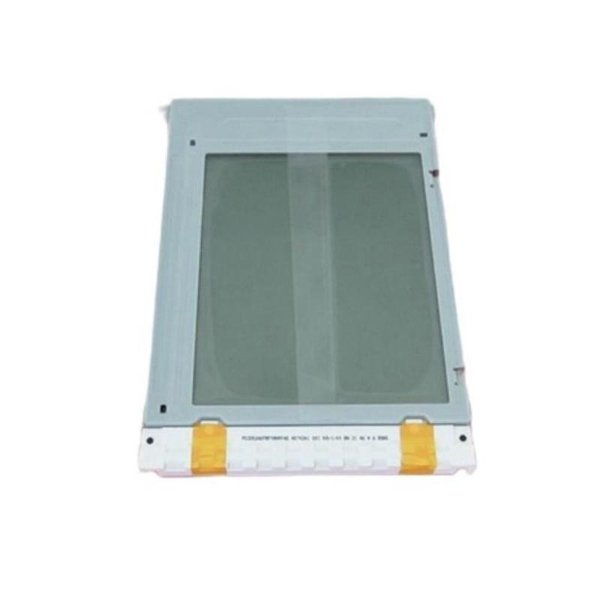

ABB PG320240FRF YNNHY4Q 3HNP04014-1 LCD Display Panel

The ABB PG320240FRF YNNHY4Q 3HNP04014-1 is a high-performance monochrome LCD display panel designed for use in ABB’s automation and control systems. Built for durability and reliability, this industrial-grade display panel ensures crisp, high-contrast visuals even in harsh operating environments. It is commonly integrated into control terminals, HMIs, and diagnostic interfaces within process automation, robotics, and discrete manufacturing systems.

With a display resolution of 320×240 pixels and a robust construction capable of withstanding vibration and thermal variations, this module serves as a key interface component in both new equipment and legacy ABB system maintenance.

Key Features

• 320×240 pixel monochrome LCD resolution

• High-brightness display for clear readability

• Robust construction for industrial environments

• Compact and lightweight for easy integration

• Long operational life with stable backlight performance

• Excellent visibility under various lighting conditions

• Compatible with ABB HMI and control panels

• Wide viewing angle for better operator readability

• Simple connection interface for plug-and-play use

• Vibration and shock-resistant for factory use

Technical Specifications

Industry Applications

• Process Automation Systems: Visual interface for process status monitoring

• Industrial HMIs: Integrated into operator panels for machine interaction

• Factory Automation: Real-time display of sensor data and alerts

• Robotics Interfaces: Used in robot controllers for diagnostics

• CNC Equipment: Screen for settings, alarms, and user input

• Power Management Systems: Status display in power distribution units

• Packaging Lines: Monitor cycle counters and production metrics

• Legacy ABB System Maintenance: Replacement module for older ABB HMIs

Product Advantages

• Clarity in Harsh Environments: High brightness and contrast ensure readability in factory conditions

• Compact Form Factor: Easy to fit into tight enclosures or retrofit projects

• Reliable and Durable: Built to withstand vibration, shock, and extended use

• ABB-Compatible: Direct replacement for specific ABB modules and HMIs

• Low Power Consumption: Efficient LED backlight conserves energy

• Wide Operating Range: Functions reliably across a broad temperature range

• User-Friendly Interface: Simple electrical interface for fast integration

• Minimal Maintenance: Long-life backlight and rugged housing reduce failure points

• Multi-Angle Viewing: Optimal for operators working at different positions

• Supports Long-Term Use: Designed for consistent performance in continuous operations

Frequently Asked Questions (FAQ)

1. What is the resolution of the PG320240FRF YNNHY4Q display panel?

   It offers a 320 x 240 pixel QVGA resolution.

2. Is this LCD panel backlit?

   Yes, it features a high-efficiency LED backlight.

3. Can this panel be used in high-temperature environments?

   Yes, it operates reliably between -20°C and +70°C.

4. Is it suitable for use with ABB HMI panels?

   Yes, it is specifically designed to integrate with ABB HMI/control systems.

5. What is the expected backlight life?

   The LED backlight has a typical life of over 50,000 hours.

6. Does it support touch input?

   No, this model is a display-only unit and does not include a touch interface.

7. What type of interface does it use?

   It uses a parallel data interface for signal communication.

8. Can it be used in robotics control systems?

   Yes, it is often used in ABB robotic controller panels.

9. How is the module mounted?

   It is designed for panel mounting or integration into enclosures.

10. Is this a color display?

    No, it is a monochrome display.
