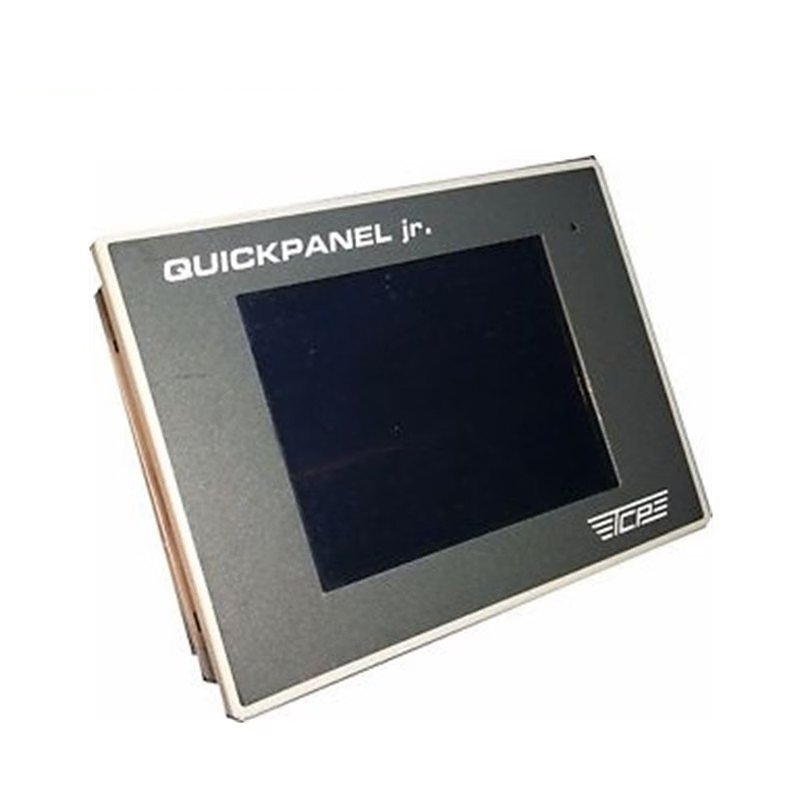

The QPJ-2D101-L2P is a 5-inch touch screen module from the GE QuickPanel Junior series. This HMI (Human-Machine Interface) module features a monochrome LCD display and is designed as a cost-effective alternative to modules with physical push buttons and indicator LED lights. It supports integration with major PLC models and communication networks, offering flexibility in industrial automation applications. The compact design, low power consumption, and reliable memory make it ideal for smaller-scale applications.

Technical Specifications

• Manufacturer: GE Fanuc Total Control
• Series: QuickPanel Junior
• Part Number: QPJ-2D101-L2P
• Screen Size: 4.7 inches (Monochrome LCD Display)
• Resolution: 320 x 240 pixels
• Input Voltage: 24 VDC
• Power Consumption: 12 watts
• Memory: 256 KB Flash EPROM
• Dimensions:
  • Width: 6.75 inches (172 mm)
  • Height: 5 inches (127 mm)
  • Depth: 2.125 inches (54 mm)
• Weight: 1.7 lbs (0.8 kg)
• NEMA Rating: Type 4X/12, IP65
• Software Version: QuickDesigner Version 3.7
