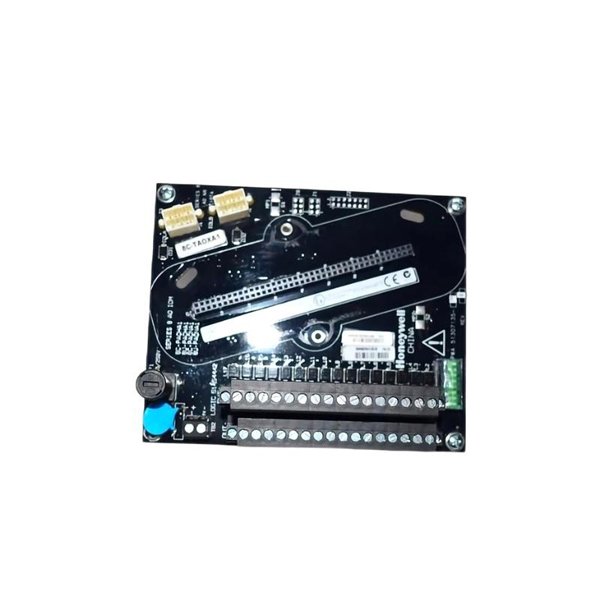

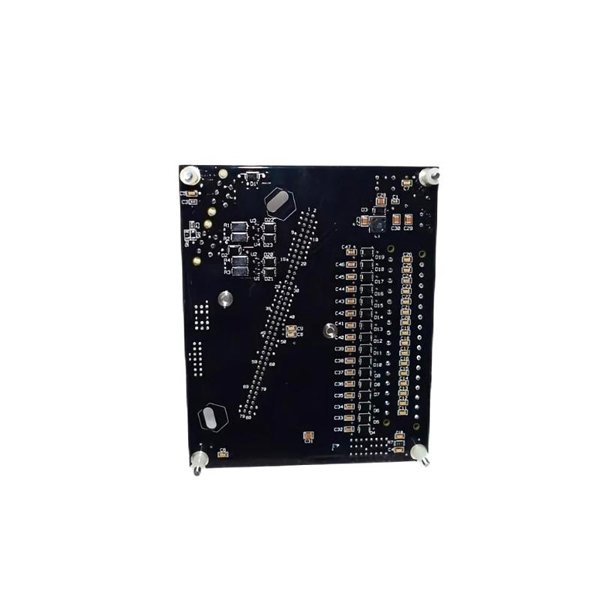

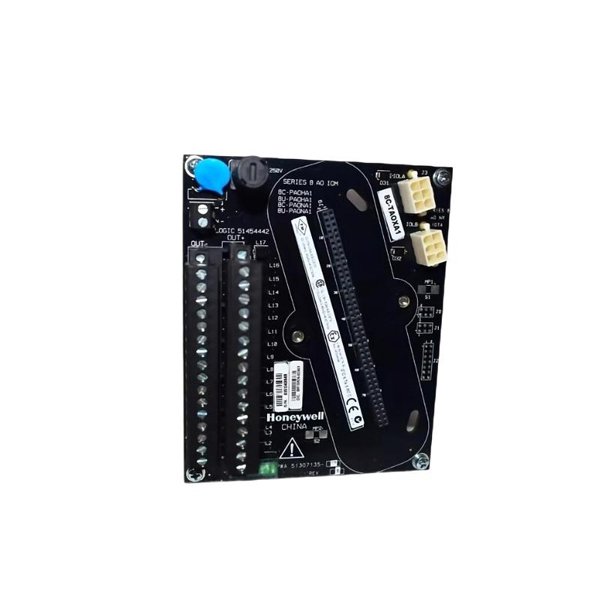

The Honeywell 8C-TAOXA1 Analog Output Module, part number 51307135-175, is a high-quality, industrial-grade device designed for reliable analog output signal generation in process control systems. This module is engineered to convert digital instructions from a central controller into analog signals, which in turn operate field devices such as valves, actuators, and other analog instrumentation.

As part of Honeywell’s renowned 8C series, the 8C-TAOXA1 stands out for its precision, durability, and adaptability in various industrial automation scenarios. The module offers excellent performance in demanding environments, delivering stable output signals that ensure tight process control. It is ideal for integration with Honeywell control platforms, providing seamless communication and control within large-scale automation setups.

Product Specifications

Product Applications

• Industrial Process Control: Converts digital control signals into precise analog outputs to regulate field devices in process automation systems.

• Oil & Gas Industry: Controls actuators and valves in pipelines, refineries, and production facilities to maintain safety and efficiency.

• Chemical Manufacturing: Regulates flow, pressure, and temperature control valves, ensuring consistent product quality.

• Power Plants: Interfaces with turbine controls, boiler feedwater systems, and other critical plant components.

• Water and Wastewater Treatment: Drives dosing pumps and other equipment to maintain water quality and regulatory compliance.

• General Manufacturing: Controls actuators and motor drives in assembly lines, packaging machines, and other production equipment.

Product Advantages

• High Accuracy and Stability: Maintains precise analog output signals essential for consistent process control.

• Rugged Construction: Designed to operate reliably under extreme temperature and humidity conditions.

• Seamless Integration: Fully compatible with Honeywell control platforms such as TDC and Experion, facilitating system upgrades and expansions.

• Compact Design: Small form factor simplifies installation in dense control panels.

• Modular Setup: Allows for easy replacement or upgrade of individual modules without disrupting overall system operation.

• Flexible Output Ranges: Supports multiple analog signal configurations to meet diverse field device requirements.

• Compliance and Certification: Meets global safety and performance standards, ensuring dependable operation.

• Low Power Usage: Efficient operation minimizes overall system energy consumption.

• Built-in Diagnostics: Provides early fault detection to reduce downtime and maintenance efforts.

• Long Lifecycle: Manufactured with high-quality components for extended service life and low total cost of ownership.

Frequently Asked Questions (FAQ)

1. What output signals are available on the 8C-TAOXA1 module?

   It supports both 4-20 mA and 0-20 mA output signals, configurable depending on the application.

2. Is this module compatible with all Honeywell control systems?

   It is designed for compatibility with Honeywell’s major process control systems, including TDC and Experion.

3. How many analog outputs does this module provide?

   The module has four independent analog output channels.

4. What environmental conditions can this module withstand?

   It operates reliably within temperatures from -40°C to +85°C and tolerates up to 95% relative humidity, non-condensing.

5. Can the module be mounted on a DIN rail?

   Yes, it supports DIN rail mounting as well as rack mounting.

6. Does the module support hot swapping?

   No, the module should not be removed or inserted while the system is powered on.

7. Are there any diagnostic features available?

   Yes, it offers built-in diagnostics for output channel integrity and communication errors.

8. What safety certifications does the module have?

   The module is CE and UL certified, ensuring compliance with safety and electromagnetic compatibility standards.

9. How fast does the module respond to input changes?

   The response time is under 100 milliseconds, suitable for real-time process control.

10. What is the typical service life of the 8C-TAOXA1 module?

    With proper maintenance, it typically offers more than 10 years of reliable operation.
