Manufacturer:Schneider
Product Number:TM3DI8G
Product Type:Discrete Input Module
Origin:France
Dimensions:90 x 84.6 x 27.4 mm
Weight:0.085 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

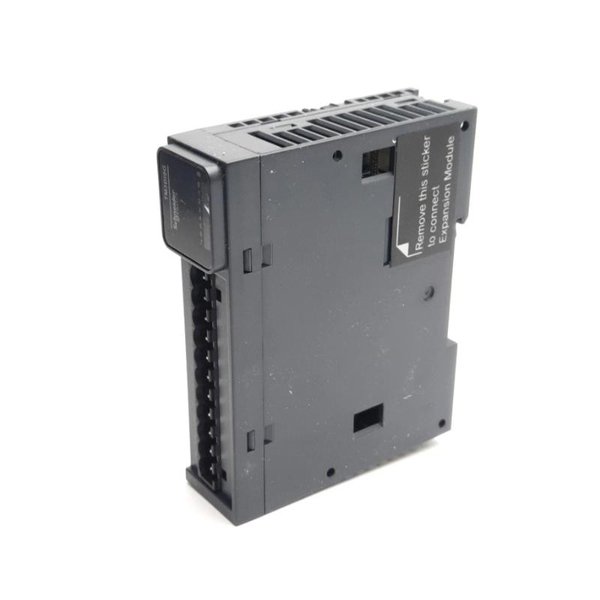

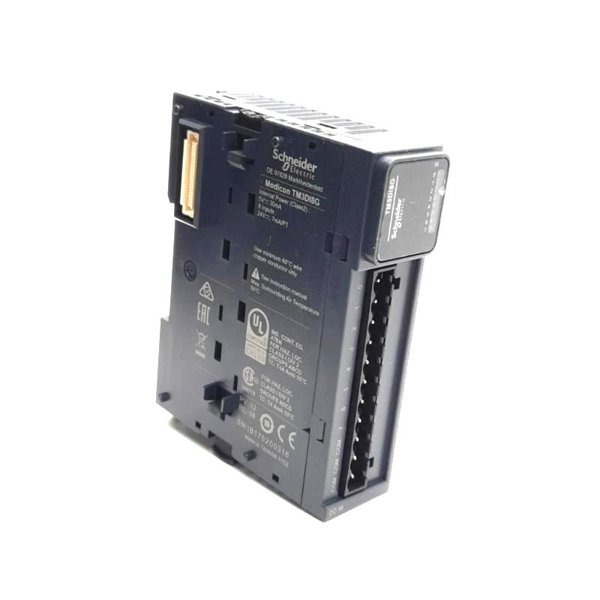

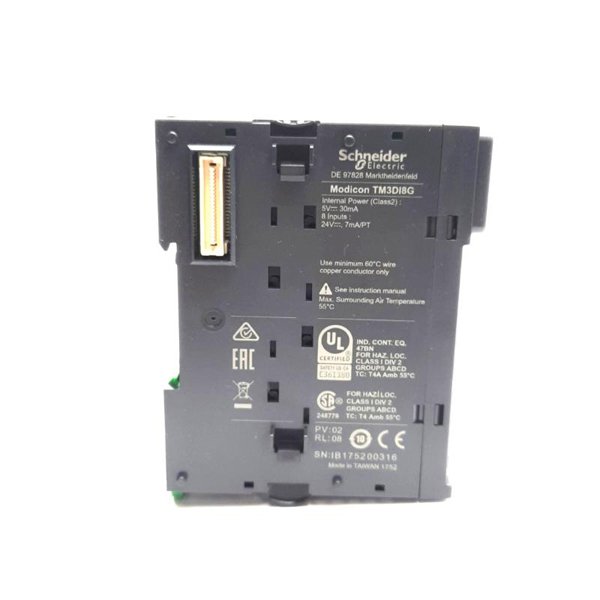

The Schneider TM3DI8G is a compact and efficient discrete input module designed for the Modicon TM3 expansion family. It is used for monitoring digital signals in automation systems and offers reliable input processing for a wide range of applications in industrial control environments.
| Parameter | Description |
|---|---|
| Model | TM3DI8G |
| Product Type | Discrete Input Module |
| Number of Inputs | 8 |
| Input Type | Sink or Source (24 V DC) |
| Input Voltage | 24 V DC |
| Input Current | 3 mA |
| Input Signal Type | Discrete |
| Input Frequency | 0–100 Hz |
| Isolation | 500 V AC between input and logic |
| Connection | Removable screw terminal block |
| Status Indicators | LED per channel |
| Mounting | DIN rail |
| Protection Index | IP20 |
| Dimensions (W x H x D) | 90 x 84.6 x 27.4 mm |
| Weight | 0.085 kg |
| Operating Temp. | -10°C to +55°C |
| Storage Temp. | -25°C to +70°C |
The TM3DI8G module is ideal for industrial automation tasks requiring digital signal acquisition. Common applications include:
Machine control systems
Packaging lines
Conveyor systems
Building automation
Water treatment systems
Compact Design: Space-saving dimensions suitable for small control panels.
Flexible Wiring: Supports sink/source input types for wiring versatility.
Easy Integration: Seamless connection with Modicon M221, M241, and M251 PLCs.
LED Diagnostics: Instant input status via dedicated LED indicators.
Modular Expansion: Quick connection with other TM3 modules.
Q1: What type of signals does the TM3DI8G accept?
A1: It accepts 24 V DC discrete (on/off) signals.
Q2: Is the module compatible with Modicon M221 PLC?
A2: Yes, it is fully compatible with M221, M241, and M251 controllers.
Q3: Can I use both sink and source wiring configurations?
A3: Yes, it supports both sink and source input types.
Q4: Does it have individual LED indicators per channel?
A4: Yes, each of the 8 inputs has a corresponding LED for status indication.
Q5: What is the mounting method?
A5: It is mounted on DIN rail.
Q6: What is the maximum operating temperature?
A6: The maximum operating temperature is +55°C.
Q7: Is it hot-swappable?
A7: No, the module must be powered down before replacement.
Q8: Can it be used in outdoor environments?
A8: No, it has an IP20 rating and is designed for indoor use only.
Q9: Does it require external power for input sensing?
A9: No additional power is needed; it uses 24 V DC signals.
Q10: What is the typical use case for this module?
A10: Monitoring and reading digital inputs such as sensor signals, limit switches, and push buttons.
