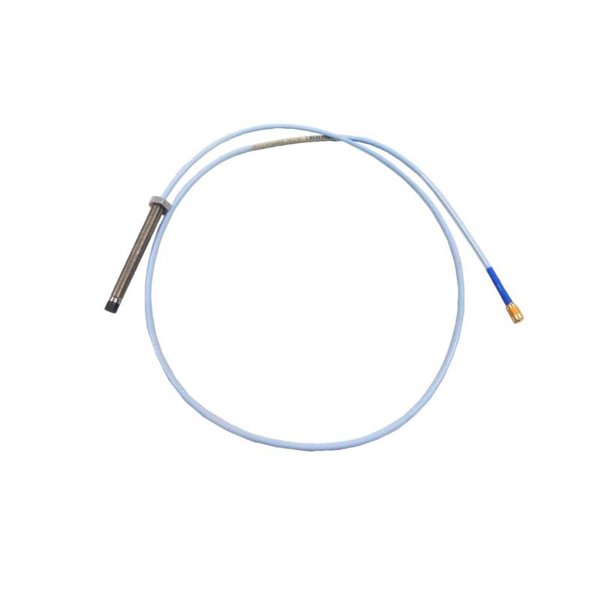

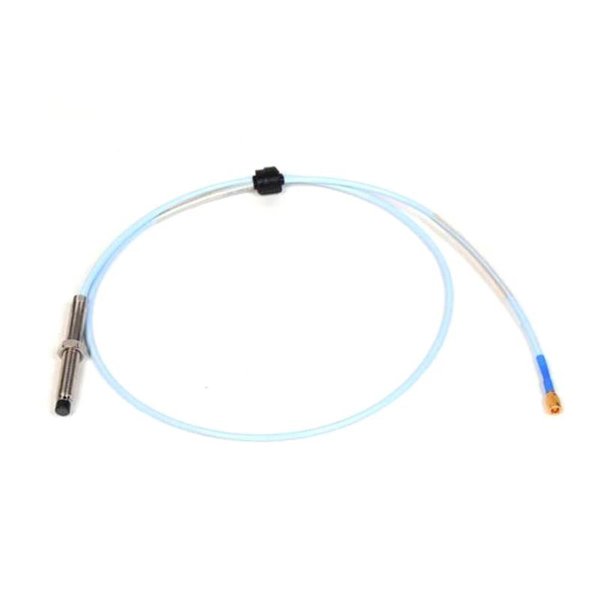

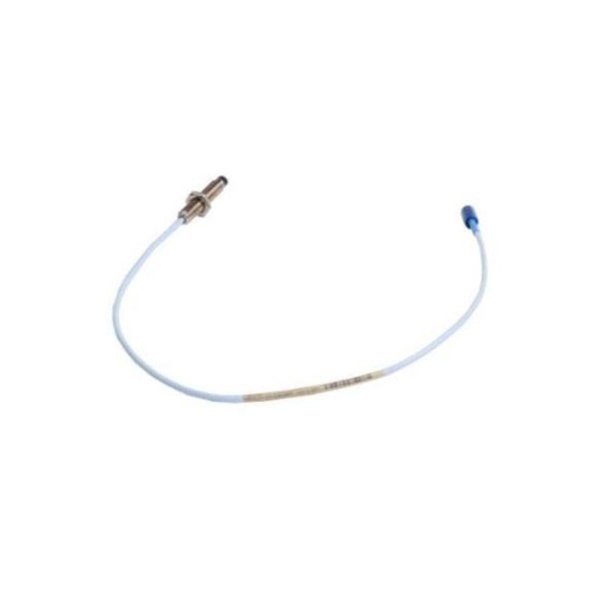

The Bently Nevada 330103-11-16-10-12-05 is a premium 3300 XL 8 mm proximity probe specifically designed for vibration monitoring, shaft position detection, and rotor dynamic measurements in rotating machinery. As part of the 3300 XL Series, this probe delivers unparalleled reliability, high accuracy, and long-term stability in harsh industrial environments.

Engineered for compatibility with the 3300 XL Proximitor sensor system, this probe ensures precise measurement of shaft vibration and displacement across various industrial applications such as turbomachinery, compressors, and pumps. Its rugged construction and metric design make it a trusted choice in global industries requiring continuous online monitoring of critical assets.

Technical Specifications

Applications

• Turbomachinery Monitoring

  Ideal for turbines, compressors, and generators to monitor shaft vibration and axial displacement.

• Pumps and Motors

  Used in critical pump systems for real-time condition monitoring and fault detection.

• Gearbox Systems

  Ensures reliable vibration feedback to prevent mechanical damage in gear-driven systems.

• Industrial Compressors

  Tracks rotor movement and detects early-stage failures, minimizing downtime.

• Power Plants and Refineries

  Supports high-value assets in energy production and oil and gas sectors by ensuring operational safety.

• Condition-Based Maintenance Programs

  Enables predictive maintenance strategies by integrating with advanced monitoring systems.

Advantages

• High Accuracy and Reliability

  Provides precise vibration and position measurements under various operating conditions.

• Rugged Design

  Built to withstand high temperatures, harsh environments, and mechanical stress.

• Global Standard Compliance

  Fully meets API 670 standards, ensuring compatibility with global industrial systems.

• Enhanced Signal Integrity

  Delivers stable, interference-free signals over extended cable lengths.

• Easy Installation and Maintenance

  Threaded design allows quick and secure installation in tight spaces.

• Long-Term Stability

  Maintains performance consistency over extended operational periods, reducing recalibration needs.

• Versatile Application

  Supports a wide range of rotating machinery applications, making it a flexible monitoring solution.

• Proven Performance

  Extensively field-tested and adopted worldwide for critical machinery protection.

FAQ

Q1: What is the main function of the 330103-11-16-10-12-05 probe?

A1: It measures shaft vibration and position in rotating machinery to ensure accurate condition monitoring and protection.

Q2: What type of sensor system is this probe compatible with?

A2: It is specifically designed for use with the 3300 XL Proximitor Sensor System.

Q3: What is the linear range of this proximity probe?

A3: The probe provides a linear range of 2 mm (80 mils) for precise vibration measurement.

Q4: Does this probe comply with API standards?

A4: Yes, it complies fully with API 670 standards, ensuring reliability and accuracy for critical monitoring systems.

Q5: What is the maximum operating temperature for the probe tip?

A5: The probe tip operates effectively in temperatures up to +177°C, making it suitable for high-heat environments.

Q6: Can the probe be used for long cable applications?

A6: Yes, it maintains signal stability even over 10 meters of cable length.

Q7: What is the frequency response range of this probe?

A7: It supports a frequency range from DC to 10 kHz, suitable for high-speed machinery applications.

Q8: Is the probe resistant to environmental stress?

A8: Absolutely. Its rugged construction provides resistance to vibration, heat, and chemical exposure.

Q9: Can this probe be integrated into condition monitoring systems?

A9: Yes, it integrates seamlessly with Bently Nevada monitoring platforms for real-time asset diagnostics.

Q10: What industries most commonly use this probe?

A10: It is widely used in oil and gas, power generation, petrochemical, and heavy manufacturing industries.
