Manufacturer:Schneider
Product Number:140CPU42402C
Product Type:CPU Module
Origin:France
Dimensions:103.9 × 40.3 × 250 mm
Weight:0.63 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

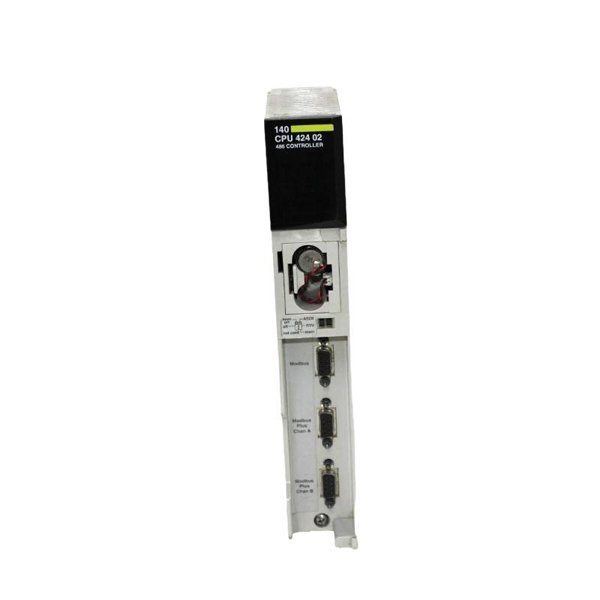

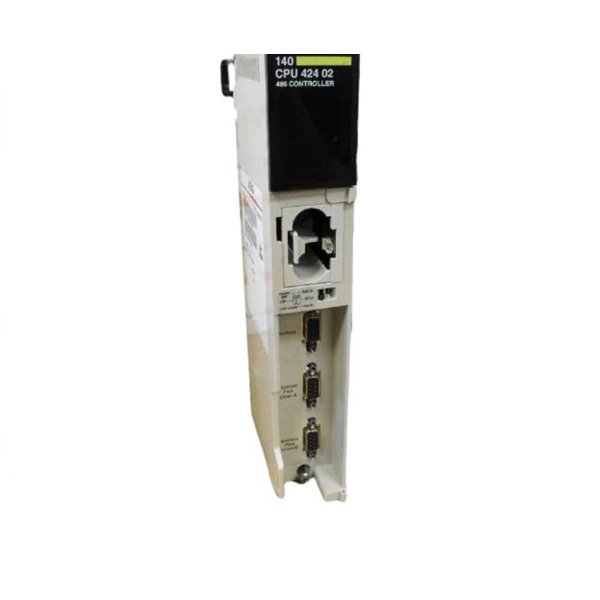

The Schneider 140CPU42402C CPU Module is a powerful and versatile central processing unit designed for use within the Modicon M221 series of programmable logic controllers (PLCs). This CPU module serves as the brain of automation systems, managing data processing, control logic execution, and communication between various field devices and supervisory systems.
Engineered to provide fast execution speeds and reliable performance, the 140CPU42402C offers enhanced memory capacity and advanced communication capabilities. It supports flexible programming and easy integration into industrial automation networks, making it an ideal choice for small to medium-sized machine control and process automation.
With a focus on robustness, the CPU module is suitable for deployment in challenging environments where uptime and precision are critical.
| Parameter | Specification |
|---|---|
| Model | Schneider 140CPU42402C |
| Product Type | CPU Module (PLC Controller) |
| Series | Modicon M221 |
| Processor | 32-bit Microprocessor |
| Program Memory | 40 KB |
| Data Memory | 4 KB |
| Communication Ports | 2 x RJ45 Ethernet ports (Modbus TCP/IP, Ethernet/IP) |
| Expansion Slots | Supports M221 expansion modules |
| Input Voltage | 24 V DC |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.63 kg |
| Programming Software | EcoStruxure Machine Expert – Basic (formerly SoMachine Basic) |
| Compliance | CE, UL, CSA, RoHS |
The Schneider 140CPU42402C CPU Module is widely used across various automation and control applications, including but not limited to:
Machine Automation
Controls manufacturing equipment, assembly lines, and packaging machinery with high reliability.
Manages sensors, actuators, and control loops in chemical, water treatment, and food processing industries.
Building Automation
Integrates HVAC, lighting, and security systems for efficient facility management.
Material Handling Systems
Operates conveyors, sorters, and robotic arms in warehouses and logistics centers.
Energy Management
Supports monitoring and control of energy distribution systems and renewable energy plants.
The CPU module’s small footprint allows installation in limited spaces and easy expansion with other M221 modules.
Fast Processing Power
The 32-bit processor ensures quick execution of complex logic, enhancing machine throughput and responsiveness.
Advanced Communication Options
Dual Ethernet ports support multiple protocols, enabling seamless integration into modern industrial networks.
User-Friendly Programming Environment
Compatible with EcoStruxure Machine Expert software, providing intuitive and efficient development tools.
Robust Operating Range
Designed to withstand industrial temperature ranges and humidity, ensuring reliable operation under harsh conditions.
Energy Efficient
Low power consumption supports sustainable operation and reduces operational costs.
1. What programming languages are supported by the 140CPU42402C?
It supports IEC 61131-3 standard languages such as Ladder Logic (LD), Structured Text (ST), Function Block Diagram (FBD), and Instruction List (IL).
2. Can this CPU module be used in networked control systems?
Yes, it features dual Ethernet ports supporting Modbus TCP/IP and Ethernet/IP protocols for easy network integration.
3. What is the maximum program size for this CPU?
The program memory capacity is 40 KB, sufficient for small to medium automation projects.
4. Is the module compatible with other Modicon M221 expansion modules?
Yes, it supports a range of M221 I/O and function modules for flexible system configuration.
5. What power supply is required?
The module operates on a 24 V DC power supply, standard in industrial automation.
6. How does it handle fault detection and diagnostics?
It includes built-in diagnostic tools and supports event logging, which can be accessed via programming software.
7. What are the environmental limits for operation?
The CPU module operates between 0°C and +55°C, with humidity tolerance from 5% to 95% non-condensing.
8. How is the CPU module programmed and configured?
Using Schneider Electric’s EcoStruxure Machine Expert – Basic software, offering drag-and-drop programming and debugging.
9. Is it suitable for safety-critical applications?
While reliable, this CPU module is not safety certified for SIL-rated applications; dedicated safety modules should be used in such cases.
10. What certifications does the module hold?
It complies with CE, UL, CSA, and RoHS standards, ensuring safety and environmental compliance.
