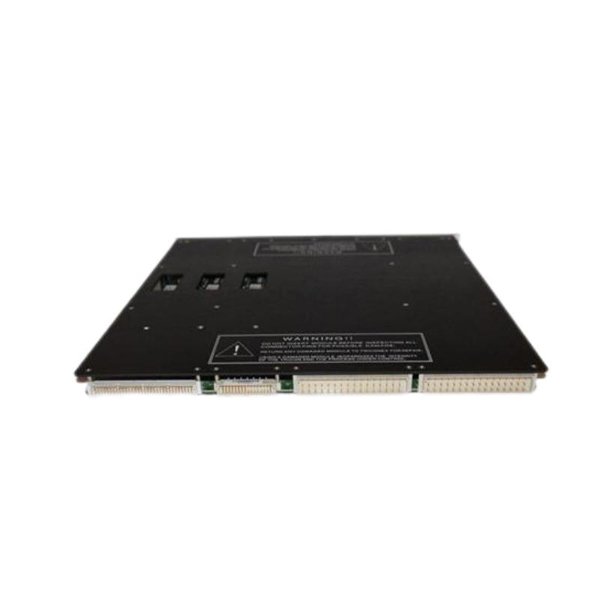

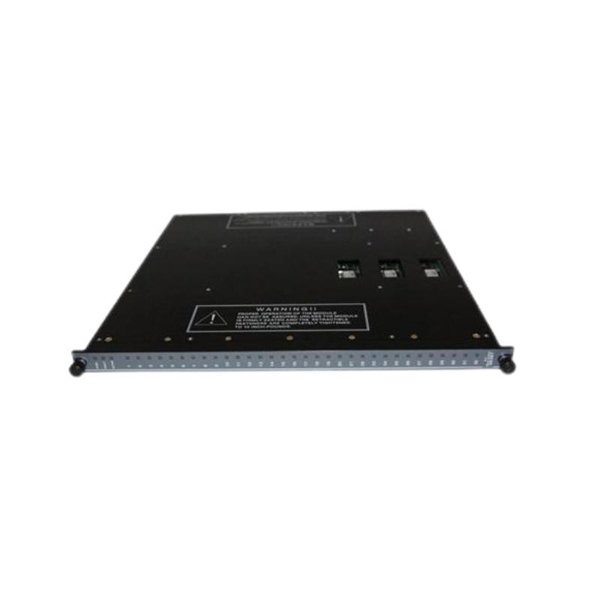

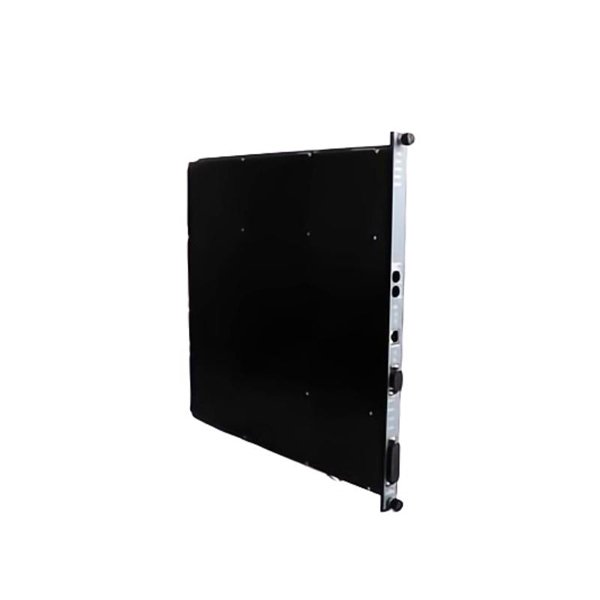

The Triconex 3636A Relay Output Module is a safety-critical component designed for use within the Tricon™ fault-tolerant safety and control system. Developed by Triconex, a trusted brand under Schneider Electric, this module serves as a high-integrity output interface in a wide array of process industries, particularly where reliability, safety compliance, and deterministic response are non-negotiable.

The 3636A is a 32-channel relay output module, capable of switching field devices with electrical isolation and mechanical robustness. It provides normally open (NO) dry contacts and is suitable for controlling actuators, solenoids, alarms, and other final elements in Safety Instrumented Systems (SIS). This module is certified for use in SIL 3 applications according to IEC 61508 and is frequently used in emergency shutdown (ESD), fire and gas (F&G), and turbine protection systems.

Its modular design ensures hot-replaceability, field diagnostics, and seamless integration with Tricon system architecture.

Product Specifications

Product Applications

The 3636A Relay Output Module is a fundamental element in various mission-critical control and safety systems. Its applications span across:

• Oil & Gas Processing Plants: ESD valve actuation, motor shutdown, gas detectors.

• Chemical & Petrochemical Facilities: SIS control loops, relief system triggering, alarm interface.

• Power Generation Units: Turbine protection, auxiliary systems interlocking, fan cutoffs.

• Pharmaceutical Industry: Batch processing safety and equipment interlock systems.

• Marine and Offshore Platforms: Ballast control systems, fire suppression actuation.

• Mining and Metals: Emergency stop systems and conveyor safety logic output.

Each of these applications demands high-reliability outputs under variable and often harsh operating conditions—an area where the 3636A excels.

Product Advantages

1. Safety Integrity Level 3 Certified: Ideal for use in high-risk safety applications in accordance with global standards.

2. Field-Proven Reliability: Designed to operate in challenging environments with high uptime requirements.

3. Hot-Swap Ready: Supports online replacement without system downtime, reducing operational interruptions.

4. Triple Modular Redundancy (TMR): Seamlessly integrates into TMR architecture, ensuring fault tolerance.

5. Per-Channel Isolation: Reduces fault propagation and enhances safety diagnostics.

6. Mechanical Relay Output: Provides safe, galvanically isolated switching for AC and DC loads.

7. Fast Response Time: Sub-10 ms switching enables real-time safety action and event responses.

8. Diagnostic LEDs: Clear, per-channel indication simplifies maintenance and fault isolation.

9. Broad Compatibility: Integrates smoothly into existing Tricon systems and third-party SCADA/DCS interfaces.

10. Global Certification: Approved for hazardous environments, including explosive atmospheres and offshore use.

FAQ

1. What type of outputs does the 3636A module provide?

   The 3636A offers 32 Form A (normally open) dry contact mechanical relay outputs.

2. Can this module be hot-swapped during operation?

   Yes, it supports hot replacement, allowing field technicians to swap the module without shutting down the system.

3. What is the maximum current each output can handle?

   Each output can handle up to 2 Amps at 30 VDC or 250 VAC resistive.

4. Is this module suitable for SIL 3 applications?

   Yes, the Triconex 3636A is fully certified for SIL 3 systems under IEC 61508.

5. Can this module be used in hazardous areas?

   Yes, it is ATEX Zone 2 certified and CSA-approved for use in hazardous environments.

6. How do I monitor the status of each output?

   Each channel has a corresponding status LED for real-time indication of its ON/OFF state.

7. Does the module provide any diagnostic features?

   Yes, it has built-in loopback diagnostics and self-test functions for continuous health monitoring.

8. How is the module mounted?

   It is plug-in type, mounted directly onto the Tricon system backplane.

9. What kind of loads can it switch?

   It is ideal for resistive loads, such as indicators, solenoids, and alarms, in both AC and DC configurations.

10. What is the operating temperature range?

    The 3636A operates reliably between -20°C and +60°C.
