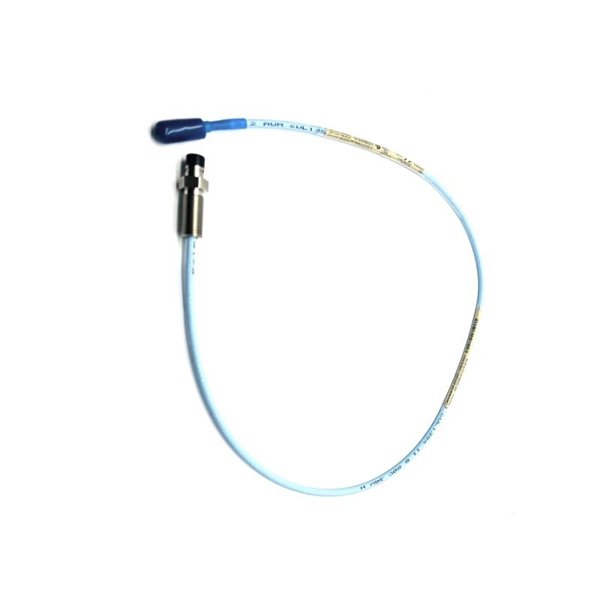

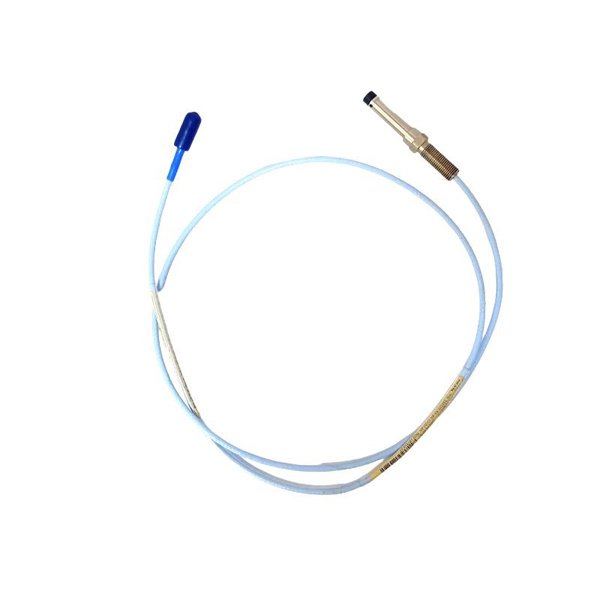

Bently Nevada 330105-02-12-05-02-05-BR 3300 XL 8 mm Reverse Mount
Manufacturer:Bently Nevada
Product Number:330105-02-12-05-02-05-BR
Product Type:3300 XL 8 mm Reverse Mount Probe
Origin:USA
Total Length:0.5 meter
Weight:0.162 kg
Views:34
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330105-02-12-05-02-05-BR is a reverse mount, non-contact proximity probe from the 3300 XL 8 mm series. It is designed for measuring vibration and position in rotating machinery with fluid-film bearings. This probe is especially suited for limited mounting spaces and applications requiring a reverse installation configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330105-02-12-05-02-05-BR |
| Probe Type | Reverse Mount Proximity Probe |
| Probe Tip Diameter | 8.0 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 0.5 meter |
| Cable Type | Standard ClickLoc coaxial cable |
| Material (Probe Case) | AISI 303 or 304 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Temperature Range (Standard) | –52°C to +177°C |
| Temperature Range (Cable) | –52°C to +177°C |
| Operating Pressure | Sealed with Viton® O-ring |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Linear Range | 2 mm (80 mils) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Shaft Diameter (Min. Recommended) | 76.2 mm (3 in) |
| Total Length | 0.5 meter |
| Weight | 0.162 kg |
Applications
-
Radial vibration monitoring of turbines and compressors
-
Shaft position monitoring in rotating machinery
-
Keyphasor speed and phase reference detection
-
Ideal for confined spaces requiring reverse mounting
-
Suitable for API 670 compliant systems
Key Advantages
Reverse Mount Design: Ideal for limited-access installations
Robust Construction: High-strength cable retention (up to 330 N pull strength)
ClickLoc Connectors: Secure, tool-free connections
FluidLoc Option: Prevents oil migration through cables (optional)
Temperature Resilience: Operates up to 177°C with standard configuration
No Calibration Required: Fully interchangeable with other 3300 XL components
API 670 Compliant: Meets industry vibration monitoring standards
Frequently Asked Questions (FAQ)
Q1: What does the “reverse mount” mean in this probe?
A1: It allows installation from the back side of the mounting surface, useful in tight spaces.
Q2: Can I use this probe in high-temperature environments?
A2: Yes, up to 177°C with the standard cable; extended temperature versions go higher.
Q3: Is the probe compatible with older Bently 3300 series systems?
A3: Yes, it’s backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q4: Is the probe suitable for underwater or oil-submerged installations?
A4: Yes, when properly sealed and with appropriate FluidLoc cable if needed.
Q5: What materials are used in the probe tip and body?
A5: The tip is PPS plastic; the body is stainless steel (AISI 303/304).
Q6: What is the maximum cable length I can order?
A6: Up to 9.0 meters; this model comes with 0.5 meter.

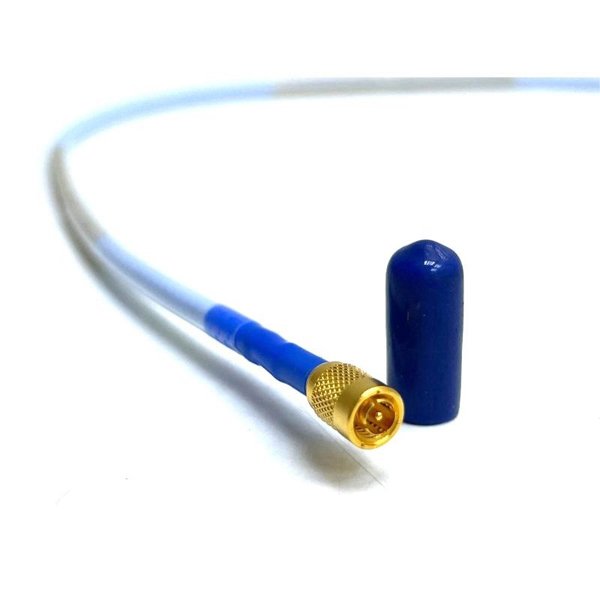

Q7: How does the ClickLoc connector work?
A7: It provides a secure connection that locks in place with a “click,” no tools needed.
Q8: Can I mix this probe with older non-XL extension cables?
A8: Yes, but the system performance will default to the lower-rated component.
Q9: What is the output voltage range?
A9: Output varies linearly from -1 to -17 Vdc over the 2 mm linear range.
Q10: Does it require field calibration?
A10: No, it comes factory calibrated for AISI 4140 steel and requires no bench calibration.
