Manufacturer:Schneider
Product Number:TSXPSY1610
Product Type:Power Module
Origin:France
Dimensions:Package size 55 ×180 ×260 mm
Weight:0.54kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

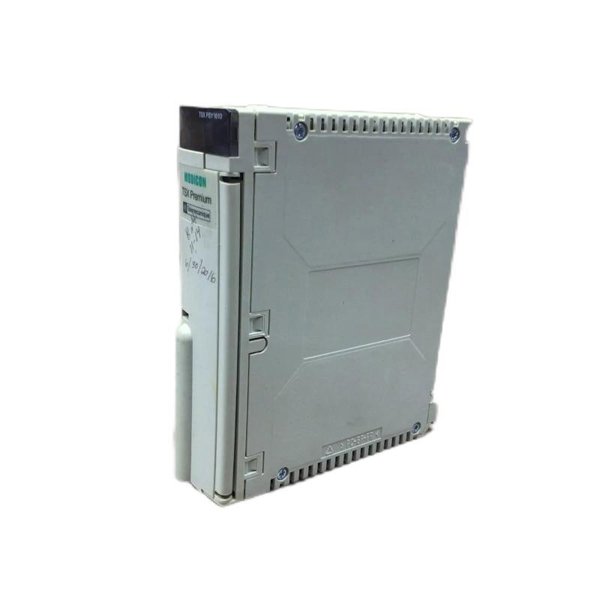

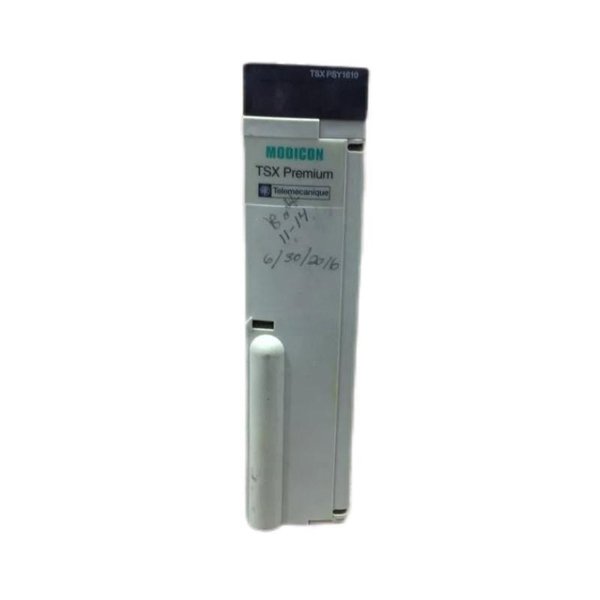

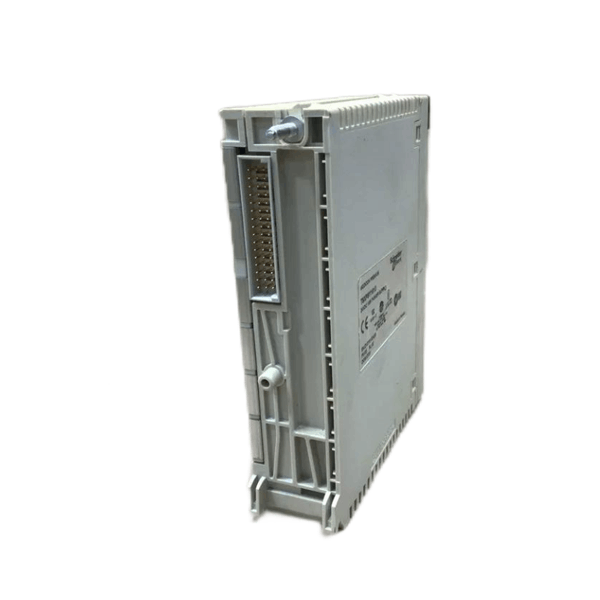

The Schneider TSXPSY1610 is a high-performance power supply module designed specifically for the Modicon Premium series of programmable logic controllers (PLCs). As a critical component of the automation architecture, the TSXPSY1610 ensures stable and regulated power to the CPU and I/O modules within the PLC rack. Engineered with Schneider’s industrial-grade design standards, it delivers both reliability and operational efficiency in demanding control applications.
This power module operates with a 100–240 VAC input and provides a regulated 5 VDC output necessary to power the entire PLC system. With overload and short-circuit protection built-in, the TSXPSY1610 supports safe operation and minimal downtime. Its compact form factor and modular installation make it an ideal solution for scalable automation environments.
Wide input voltage range: 100 to 240 VAC
Regulated 5 VDC output for Premium PLC backplane
Maximum output current up to 3 A
Overload, short-circuit, and overvoltage protection
Modular rack mounting for quick installation
LED indicators for diagnostics and power status
Industrial temperature tolerance for harsh environments
Designed specifically for Modicon Premium automation systems
| Parameter | Specification |
|---|---|
| Input Voltage Range | 100 – 240 VAC, 50/60 Hz |
| Inrush Current | ≤ 30 A |
| Output Voltage | 5 VDC |
| Maximum Output Current | 3 A |
| Maximum Output Power | 15 W |
| Efficiency | ≥ 70% |
| Protection Functions | Overload, short-circuit, overvoltage |
| LED Status Indicators | Power ON (green), Fault (red) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -25°C to +85°C (-13°F to 185°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Package size 55 ×180 ×260 mm |
| Weight | 0.54 kg |
| Mounting Type | Rack-mounted (Modicon Premium backplane) |
| Compliance Certifications | CE, UL, CSA, RoHS |
High Stability: Provides consistent 5 VDC output to ensure stable PLC operation.
Robust Design: Built to withstand industrial noise, voltage spikes, and harsh temperature ranges.
Built-in Protection: Safeguards both the power supply and the connected automation equipment.
Plug-and-Play Installation: Seamless integration into existing Modicon Premium racks.
Energy Efficient: Optimized internal design helps reduce energy consumption and heat output.
Status Indicators: Onboard LEDs offer immediate visual feedback on module status.
Compact & Lightweight: Saves space in dense control cabinets and simplifies maintenance.
Machine control systems in manufacturing
Building management and automation infrastructure
Water and wastewater treatment plants
Power distribution and substation monitoring
Food and beverage production lines
Packaging and material handling systems
Q: What PLC series is the TSXPSY1610 compatible with?
A: It is designed specifically for the Schneider Modicon Premium PLC system.
Q: Can it be used with 24VDC input?
A: No, it only supports 100–240 VAC input voltage.
Q: How much current can it provide?
A: The TSXPSY1610 delivers up to 3 A of output current at 5 VDC.
Q: Does this power supply require external cooling?
A: No, it is designed for passive convection cooling under normal operating conditions.
Q: Is this module hot-swappable?
A: No, it must be powered down before installation or replacement to ensure safety.
Q: Are there LEDs for diagnostics?
A: Yes, it has Power ON (green) and Fault (red) status LEDs.
Q: What type of mounting does it support?
A: It mounts directly onto the Modicon Premium PLC rack backplane.
Q: Can it operate in high humidity environments?
A: Yes, it supports 5% to 95% non-condensing humidity.
Q: What happens in case of output overload?
A: The power module has built-in protection and will shut down output safely.
Q: What certifications does it meet?
A: It complies with CE, UL, CSA, and RoHS standards.
