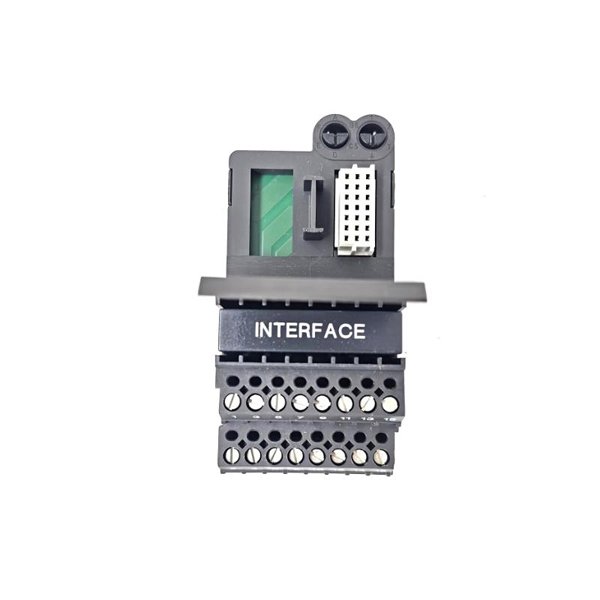

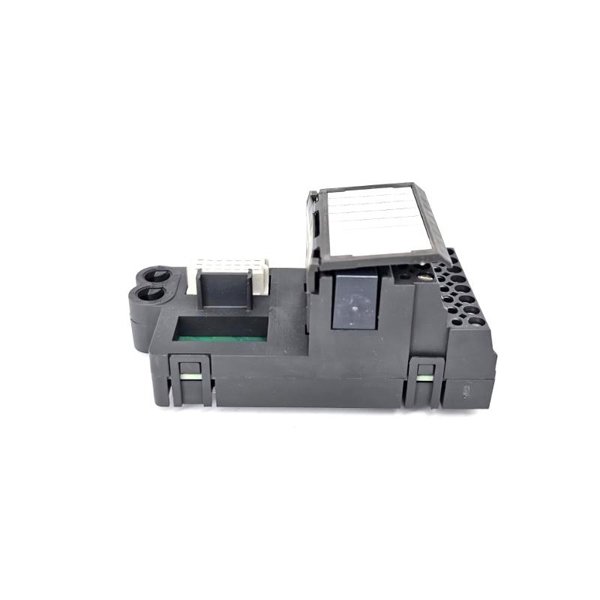

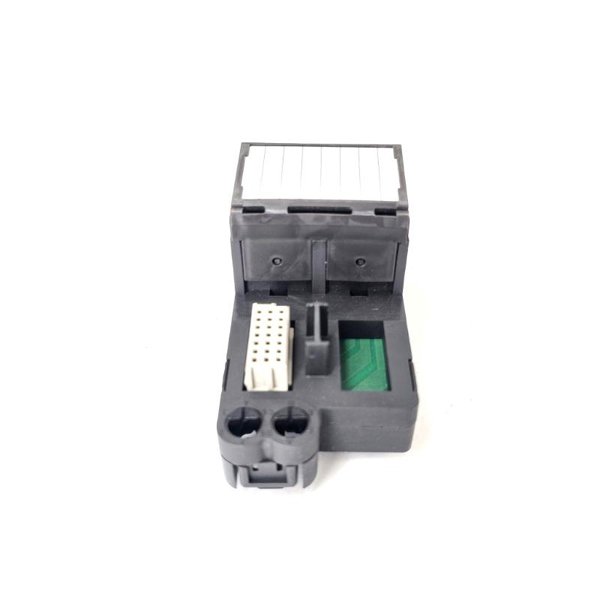

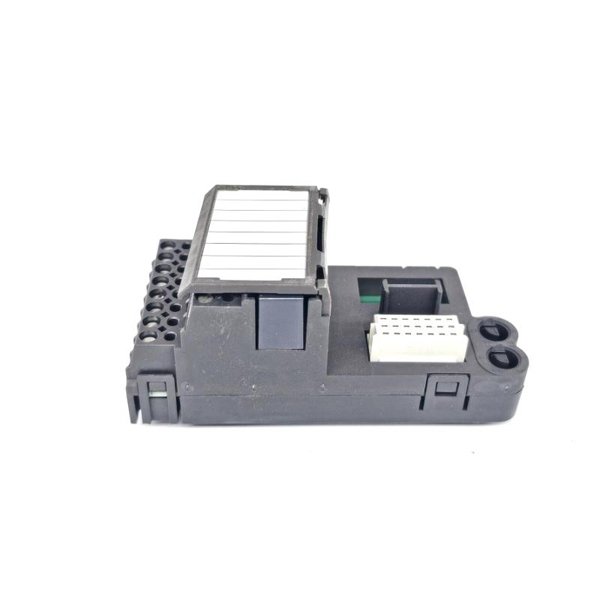

The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is an advanced component designed for industrial automation systems, particularly those that require precise and reliable data communication between field devices and control systems. This terminal block serves as a key interface, enabling easy and efficient serial communication with minimal wiring complexity. It is widely used in industries such as oil and gas, chemical processing, power generation, and other sectors where reliable control and monitoring are critical.

Product Specifications

The following table summarizes the key specifications of the KJ3003X1-EA1 Serial Interface Terminal Block:

Applications

The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is used in various industrial applications where efficient data transmission and reliability are essential. Some of the key use cases include:

• Industrial Automation: Used in systems for controlling PLCs, HMIs, and SCADA systems where serial communication is needed.

• Process Control: Ideal for systems in industries like petrochemical, food processing, and manufacturing for data collection and control.

• Data Acquisition: Used in real-time data collection from sensors, actuators, and other field devices.

• Remote Monitoring: Enables communication between remote terminals and central control systems in harsh or inaccessible environments.

The terminal block ensures that data is transmitted efficiently, reducing errors and increasing the overall reliability of industrial control systems.

Advantages

The Emerson KJ3003X1-EA1 Serial Interface Terminal Block comes with several advantages that make it a popular choice in industrial applications:

1. Robust Communication: The terminal block supports RS-232 and RS-485 communication protocols, offering versatility for various serial communication needs.

2. Ease of Installation: Designed for DIN rail mounting, this terminal block can be easily integrated into control panels and other field devices, reducing installation time and complexity.

3. High Durability: Built to withstand harsh industrial environments with a wide temperature range and high humidity tolerance, making it ideal for challenging industrial settings.

4. Compact and Efficient: Despite its small form factor, it offers reliable performance, ensuring optimal data transmission with minimal space requirements.

5. Cost-Effective: Provides a reliable and affordable solution for serial communication, reducing operational costs by improving system efficiency and reducing downtime.

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ3003X1-EA1 terminal block?

   • The KJ3003X1-EA1 serves as a serial communication interface between field devices and control systems.

2. What communication protocols does it support?

   • It supports RS-232 and RS-485 communication protocols.

3. What is the mounting type for this terminal block?

   • The terminal block is designed for DIN rail mounting.

4. What is the operating temperature range?

   • It operates in temperatures ranging from -20°C to +60°C.

5. What is the maximum current rating per channel?

   • The maximum current rating is 1 A per channel.

6. Is the KJ3003X1-EA1 suitable for use in hazardous environments?

   • Yes, the terminal block is built to withstand harsh industrial environments and can be used in a variety of sectors like oil and gas, chemical processing, and power generation.

7. Can the KJ3003X1-EA1 be used for remote monitoring?

   • Yes, it is ideal for remote monitoring and communication between field devices and central control systems.

8. How is this terminal block powered?

   • It operates on a 24 V DC nominal voltage.

9. What is the weight of the terminal block?

   • The weight is 0.09 kg.

10. How is the terminal block connected to the control system?

• It is connected using standard serial communication cables (RS-232 or RS-485) to the control system.
