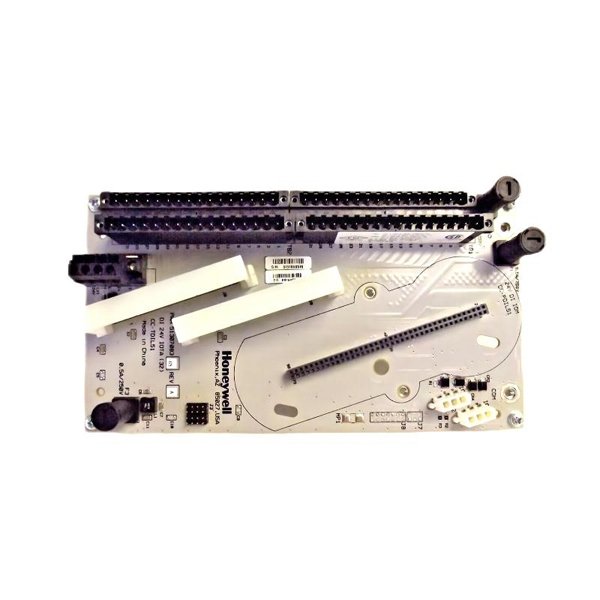

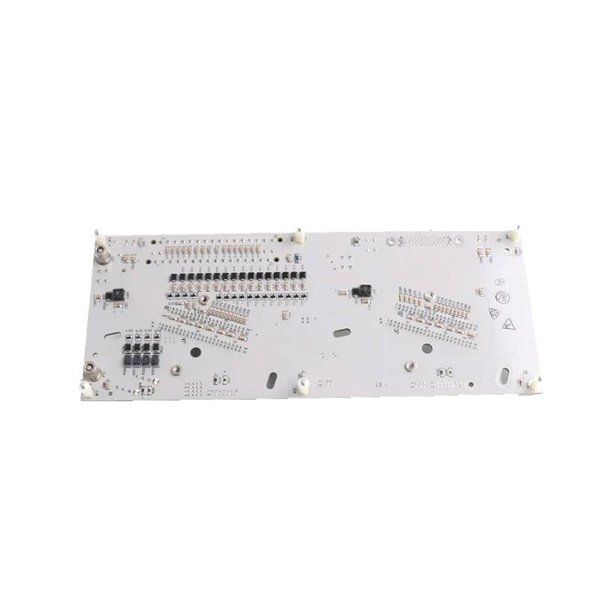

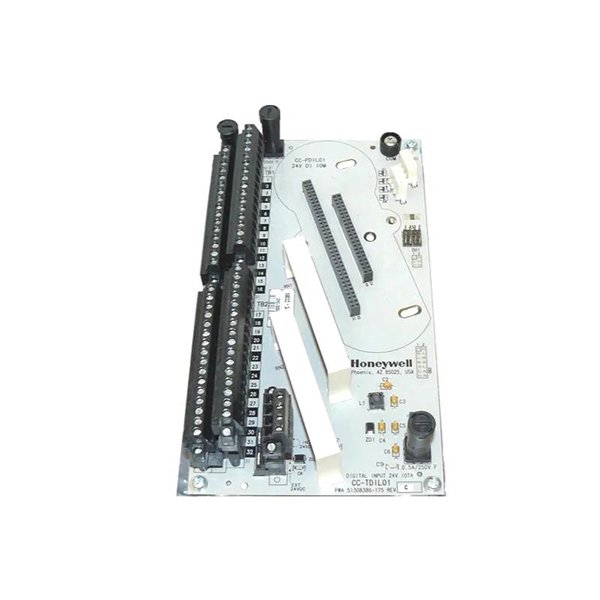

The Honeywell CC-TDIL51 51307083-175 Digital Input Module is part of Honeywell’s powerful Experion PKS system. The module is designed for integration into industrial automation systems that require robust and reliable digital input processing. It allows users to connect a variety of field devices, such as switches, sensors, and relays, to the control system, providing high-speed, high-reliability digital input data to the central processing unit.

This module is widely used in industries such as oil & gas, petrochemicals, power generation, pharmaceuticals, and water treatment, where system reliability and real-time performance are essential. The CC-TDIL51 module is ideal for environments that require precise, fail-safe data collection from numerous digital field devices.

Product Specifications

Product Applications

The Honeywell CC-TDIL51 Digital Input Module is designed for a wide range of industrial applications that require fast and reliable processing of digital signals. Here are some key use cases:

1. Oil and Gas Industry:

   Used for monitoring on/off signals from equipment such as pumps, valves, and emergency shutdown switches. The module provides secure input data to control systems in critical operations.

2. Power Generation:

   In power plants, it collects digital signals from temperature sensors, pressure switches, and other field devices that monitor equipment status, ensuring smooth operation and fault detection.

3. Chemical and Petrochemical Plants:

   Provides input for process controls, including alarms, safety devices, and automated switches. The CC-TDIL51 ensures reliable data transmission for process optimization.

4. Water Treatment Plants:

   Used for controlling water flow and monitoring system devices like motorized valves, sensors, and switches to maintain optimal treatment processes.

5. Pharmaceuticals:

   Ensures that digital inputs from batch process control, system alarms, and status indicators are precisely monitored for compliance with stringent industry standards.

6. Mining and Metals:

   The module supports safety systems that monitor critical plant conditions such as pressure, temperature, and power to prevent operational interruptions.

Product Advantages

1. High Reliability:

   Honeywell’s CC-TDIL51 module is designed to deliver superior performance in harsh industrial environments. Its robust build ensures that it operates reliably over long periods, even in challenging conditions.

2. Wide Operating Temperature Range:

   With an operating temperature range from -40°C to +70°C, it is suited for deployment in extreme environments such as offshore rigs or chemical plants with fluctuating temperatures.

3. Compact Design:

   Its compact size (63.5 x 124.46 x 307.34 mm) and DIN rail mounting make it easy to integrate into tight spaces within control panels, reducing the need for large, bulky installations.

4. Fast Signal Processing:

   The module processes digital input signals with minimal latency (10 ms per channel), ensuring real-time control and monitoring, which is essential in critical industrial applications.

5. Easy Integration:

   Designed to seamlessly integrate with Honeywell’s Experion PKS system, it simplifies system design and reduces engineering time.

6. Built-in Diagnostics:

   The module features built-in LED status indicators that provide immediate feedback on the health of each channel, helping to quickly identify any potential faults or issues.

7. Flexible and Scalable:

   With up to 16 digital input channels, it can handle a variety of devices and can easily be expanded to meet the needs of growing industrial operations.

8. Cost-Effective Solution:

   Offering high performance at a competitive price point, it delivers exceptional value without compromising on quality.

Frequently Asked Questions (FAQ)

1. What is the main function of the Honeywell CC-TDIL51 Digital Input Module?

   • It processes digital ON/OFF signals from field devices, transmitting these to a central control system for further action.

2. How many digital input channels does the CC-TDIL51 module support?

   • The module supports a total of 16 input channels, with 8 channels per group.

3. What is the power supply requirement for the CC-TDIL51?

   • The module operates on a 24 V DC power supply.

4. Is the module suitable for use in hazardous environments?

   • Yes, it is certified for use in industrial applications, including those with challenging environmental conditions, but it should not be used in classified hazardous areas.

5. Can the module be used in extreme temperatures?

   • Yes, it can operate in temperatures ranging from -40°C to +70°C, making it suitable for a wide range of industrial settings.

6. How is the CC-TDIL51 module mounted?

   • The module is designed for DIN rail mounting, which makes installation in control cabinets easy and secure.

7. What is the signal processing time for each input channel?

   • The module processes signals in 10 ms per channel, ensuring quick data transmission.

8. What kind of protection does the module have?

   • It is IP20 rated, offering protection against dust and small particles but is not intended for direct exposure to water.

9. Can the CC-TDIL51 module be used with other Honeywell systems?

   • It is primarily designed for integration with Honeywell’s Experion PKS system, but can also be used with other Honeywell automation products if configured appropriately.

10. Does the module provide diagnostics and status feedback?

    • Yes, it features LED indicators to display input status and power, allowing for quick diagnostics.
