Manufacturer:Schneider
Product Number:TSXT3170
Product Type:Handheld Controller
Origin:France
Dimensions:220 × 130 × 60 mm
Weight:2.27 kg
Views:30
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

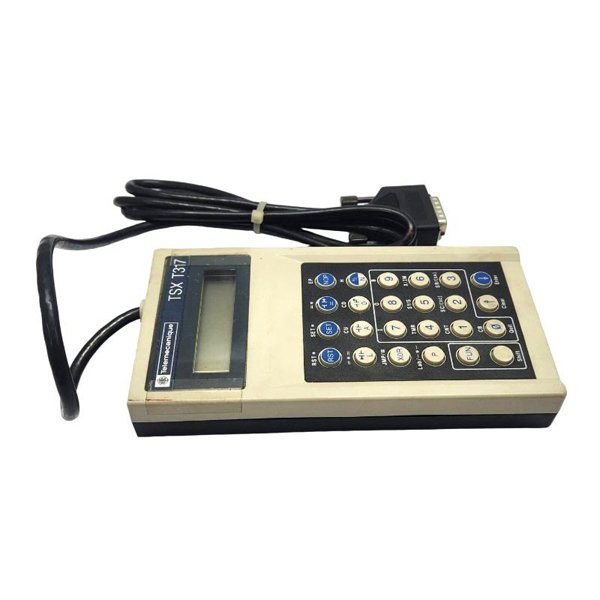

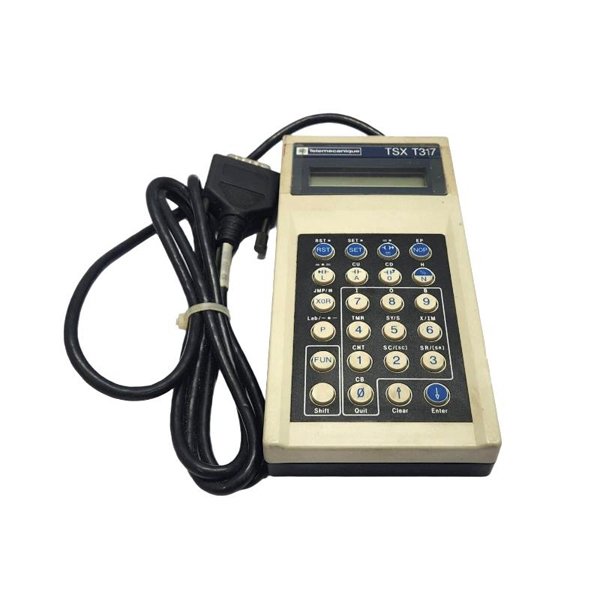

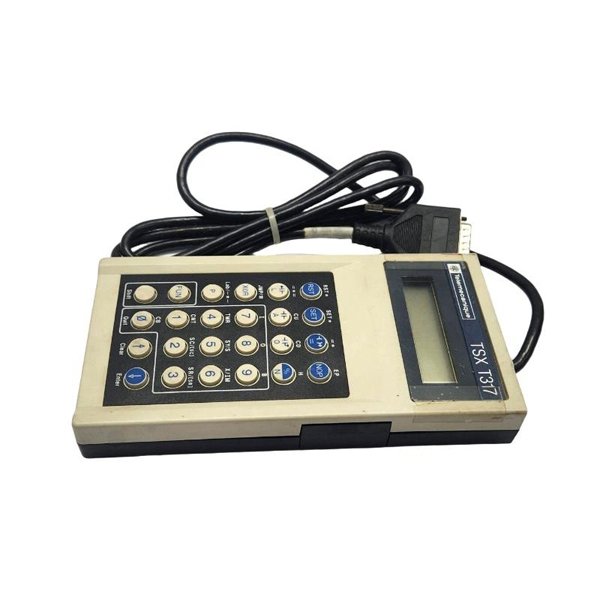

The Schneider TSXT3170 handheld controller is a portable industrial control device designed to provide operators and maintenance personnel with direct access to machine and process control systems. Part of the Schneider TSX series, this handheld device features a compact and ergonomic design, enabling real-time control, parameter adjustments, and system diagnostics directly from the shop floor or in the field.
Its rugged construction and reliable communications make it suitable for harsh industrial environments. The TSXT3170 enables technicians to perform system commissioning, troubleshooting, and operational control without the need for a fixed HMI or workstation. With its user-friendly interface and robust connectivity, it is a versatile automation maintenance and control tool.
| scope | value |
|---|---|
| model | TSXT3170 |
| Manufacturer | Schneider Electric |
| Product Type | Handheld controller |
| series | TSX Series |
| Display Type | Monochrome LCD with status indicator |
| Keyboard type | Tactile membrane keyboard |
| Communication interface | RS-232/RS-485 |
| Supported protocols | Modbus RTU, Schneider proprietary communication protocol |
| Control functions | Manual control, parameter setting, diagnosis |
| power supply | 24 VDC nominal (18–30 VDC) |
| Data Retention | Non-volatile memory |
| Operating temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Housing Material | Industrial-grade thermoplastic |
| Mounting Options | Handheld with optional panel-mount cradle |
| Safety Certifications | UL, CE, CSA |
| Compliance Standards | IEC 61131, EN 61000-6-2, EN 61000-6-4 |
| Dimensions (W × H × D) | 220 × 130 × 60 mm |
| Weight | 2.27 kg |
Machine Control: Provides operators with manual control over production equipment during setup and maintenance.
Commissioning Tool: Used to configure and test automation systems during installation.
Process Diagnostics: Allows quick access to system parameters and error codes for troubleshooting.
Portable HMI Alternative: Offers mobility for monitoring and control without a fixed panel HMI.
Parameter Adjustment: Enables fine-tuning of PLC or drive settings directly on-site.
Training and Testing: Ideal for operator training and simulation in industrial environments.
Maintenance Support: Reduces downtime by allowing technicians to perform adjustments on the spot.
Portable Design: Lightweight and ergonomic for easy handling during fieldwork.
Robust Communication: Supports RS-232/RS-485 interfaces for flexible device connection.
Non-Volatile Memory: Retains user settings and parameters even when powered off.
Industrial Durability: Designed to operate reliably in harsh factory environments.
Easy Integration: Compatible with Schneider TSX PLCs and automation systems.
User-Friendly Interface: Simple keypad and clear display for intuitive operation.
Reduced Downtime: Enables fast troubleshooting and system adjustments on-site.
Safety Certified: Meets international safety and EMC standards for industrial use.
Which Schneider PLCs are compatible with the TSXT3170 Handheld Controller?
It is compatible with Schneider TSX series PLCs and other devices supporting Modbus RTU.
What communication interfaces are available on the TSXT3170?
It supports RS-232 and RS-485 interfaces for device connectivity.
Can the TSXT3170 store configuration data?
Yes, it includes non-volatile memory to retain parameters when powered off.
Is the handheld controller suitable for outdoor use?
It is designed for industrial environments but should be used within specified temperature and humidity ranges.
What is the operating voltage of the TSXT3170?
It operates at a nominal 24 VDC with a range of 18–30 VDC.
Does the TSXT3170 support Modbus RTU communication?
Yes, it supports Modbus RTU and Schneider proprietary communication protocols.
Can it be used as a permanent HMI replacement?
It is primarily designed as a portable tool, but can be used as a temporary interface with the optional panel mounting bracket.
What type of display does the TSXT3170 use?
It uses a monochrome LCD display with integrated status indicators.
Is the TSXT3170 resistant to industrial vibration and shock?
Yes, it meets IEC standards for vibration and shock resistance.
Can the handheld controller perform firmware updates?
It is designed for control and diagnostics, not for uploading firmware to devices.
