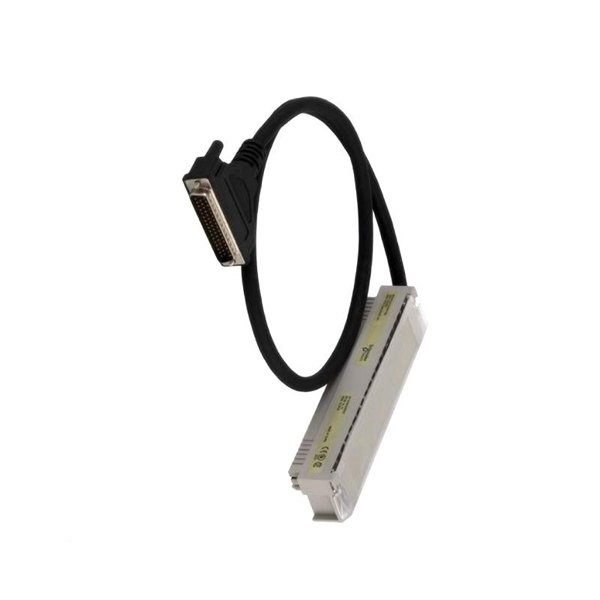

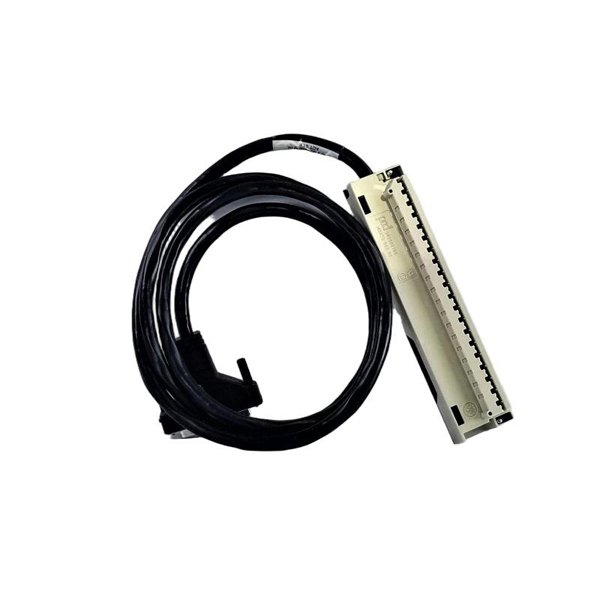

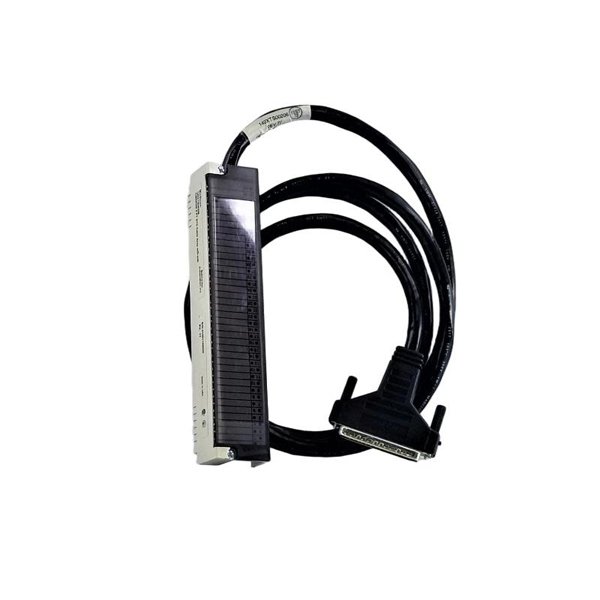

The Schneider 140XTS00212 is a premium CableFast system cable, designed as a critical interconnect component within Schneider Electric’s Modicon Quantum series automation platform. This cable streamlines system wiring by providing a direct and reliable interface between I/O base modules and field wiring terminals, thereby reducing installation time, minimizing wiring errors, and enhancing overall system integrity.

Engineered for robust industrial applications, the 140XTS00212 ensures a high-performance electrical connection with superior shielding and insulation for signal integrity. The cable is preassembled, fully tested, and optimized for Quantum I/O module integration, enabling a clean, professional, and maintenance-friendly setup.

Product Specifications

Applications

The Schneider 140XTS00212 CableFast System Cable is used in a broad range of industrial automation systems, particularly where space optimization, rapid deployment, and long-term reliability are required. Common use cases include:

• Manufacturing Plants: Automating machinery wiring with fast-disconnect capabilities.

• Food & Beverage: Clean installation with minimal wiring exposure.

• Water Treatment Facilities: Connecting remote I/O in distributed control architectures.

• Power Generation: Facilitating PLC wiring in turbine control systems.

• Oil & Gas: Modular connections in hazardous or remote locations.

• Pharmaceutical Automation: Reducing panel complexity for regulatory compliance.

Product Advantages

• Plug-and-Play Installation: Reduces wiring errors and minimizes commissioning time.

• High Signal Integrity: Shielded conductors ensure minimal electrical interference.

• Standardized Connection: Maintains uniformity across Modicon Quantum platforms.

• Industrial Durability: Engineered for harsh environments and frequent handling.

• Reduced Panel Clutter: Simplifies panel layout and eases future modifications.

• Time-Saving: Speeds up deployment in large-scale control system rollouts.

Frequently Asked Questions (FAQ)

1. Q: What systems is the 140XTS00212 compatible with?

   A: It is designed specifically for use with Schneider Electric’s Modicon Quantum I/O modules.

2. Q: Is the cable shielded?

   A: Yes, it features both foil and braid shielding for enhanced EMI protection.

3. Q: Can I cut the cable to a shorter length?

   A: No, the cable is factory-terminated and cutting it will void warranty and affect performance.

4. Q: Is this cable RoHS compliant?

   A: Yes, it complies with RoHS environmental standards.

5. Q: Can this be used outdoors?

   A: It is not rated for outdoor use unless enclosed in a suitable weatherproof cabinet.

6. Q: What is the maximum current per conductor?

   A: Each signal line can handle up to 1 A.

7. Q: How should the cable be stored?

   A: Store in a dry, temperature-controlled environment between -40°C and +85°C.

8. Q: Does it require additional grounding?

   A: The shielding provides effective grounding when connected properly to system ground.

9. Q: Is it compatible with older Quantum models?

   A: Yes, it maintains backward compatibility within the Modicon Quantum family.

10. Q: What is the warranty on this cable?

    A: We provide one year warranty.
