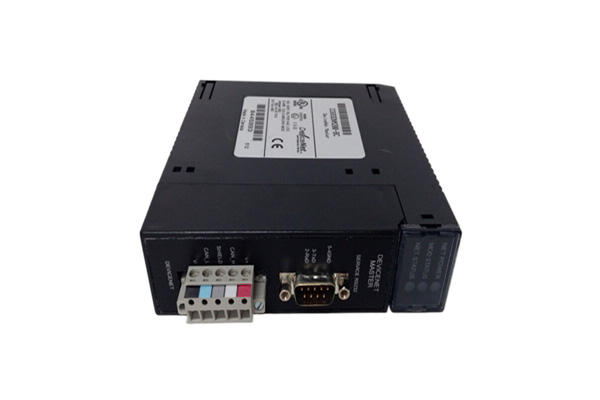

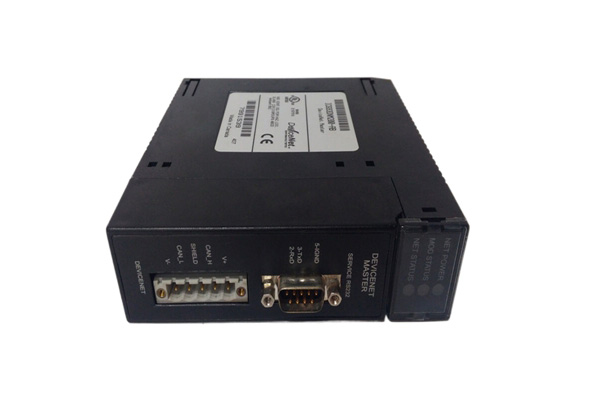

General Electric IC693DNM200 DeviceNet Master Module

Function: General Electric IC693DNM200 is a DeviceNet master module, which is part of the General Electric (GE) Programmable Logic Controller (PLC) system. It is mainly used in industrial automation and control systems to achieve communication and control between PLC and other devices on the DeviceNet network (such as frequency converters, sensors, actuators, etc.).

Technical parameters

Performance indicators:

Rated voltage: 12-24VDC positive logic

On state voltage drop: 0.3V DC

Switch response time: up to 0.5 milliseconds

Surge current: 5.4 amperes, lasting for 10 milliseconds

Output current: 0.5 amperes per point, 4 amperes per group, and a maximum current of 3 amperes per common pin per group

Interface type:

Communication interface: Supports DeviceNet communication protocol, allowing data exchange and control command transmission with other DeviceNet devices.

Physical interface: The module has two 20-pin connectors for connecting input signals and power.

Supported devices:

Can exchange I/O messages and custom explicit messages with up to 63 other DeviceNet devices on the network.

Widely used for connecting and controlling frequency converter modules, achieving precise speed adjustment of motors.

Application scenarios

The General Electric IC693DNM200 module is widely used in the following fields due to its powerful communication and control capabilities:

Industrial automation: used in the fields of manufacturing, factory automation, logistics, and transportation to connect and control various equipment and sensors, achieving automated control of production lines.

Process control: In the process control systems of industries such as chemical, petroleum, and natural gas, it is used to monitor and control key parameters to ensure the stability and safety of the production process.

Mechanical control: In the control system of machine tools, packaging machinery, and other equipment, it is used to accurately control the speed and position of motors, improve production efficiency and product quality.

Although the application of the General Electric IC693DNM200 module in medical devices and smart homes is relatively limited, its widespread use in industrial automation has fully demonstrated its reliability and efficiency.

Competitive advantage

Excellent Quality: As an internationally renowned provider of industrial automation solutions, GE’s IC693DNM200 module follows high standards in design, manufacturing, and testing, ensuring product reliability and durability.

Powerful performance: This module supports high-speed communication and real-time control, which can meet the needs of complex industrial applications. Meanwhile, its built-in multiple motor protection functions effectively prevent electrical faults such as motor overload and overheating.

Easy to integrate: As part of the General Electric Series 90-30 PLC system, the IC693DNM200 module can be easily integrated into PLC programs to achieve overall control and coordination of equipment and systems.

Complete service: General Electric provides comprehensive pre-sales consultation, in sales support, and after-sales service to ensure that users can receive timely solutions when encountering problems during use.

In summary, the General Electric IC693DNM200 module has a significant competitive advantage in the field of industrial automation due to its excellent quality, powerful performance, easy integration, and comprehensive service system.
