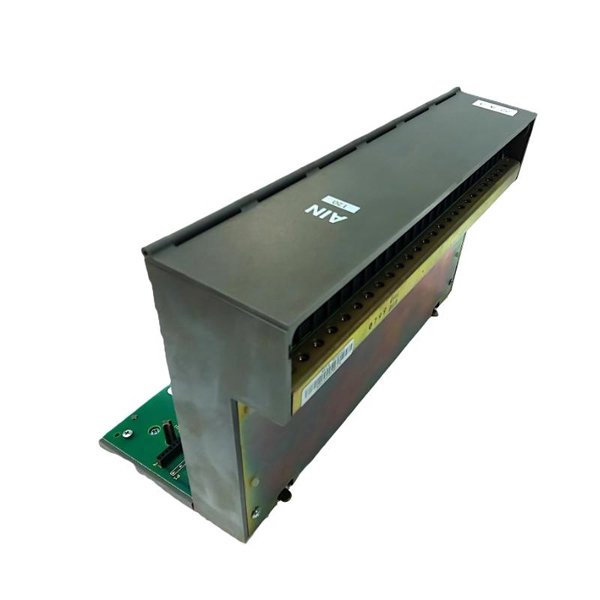

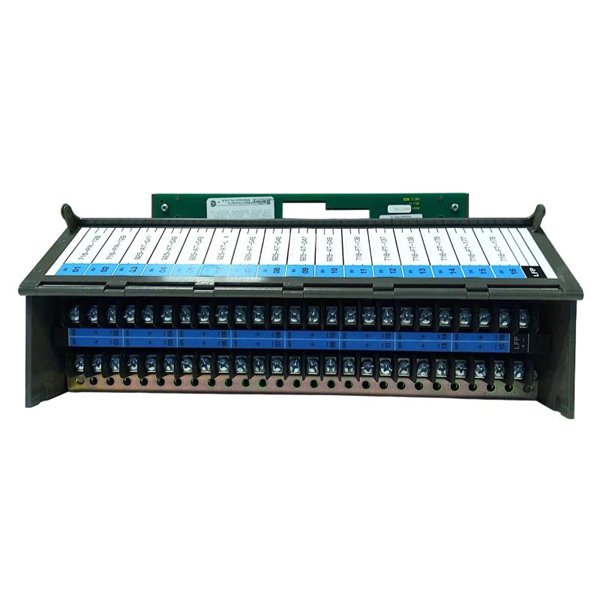

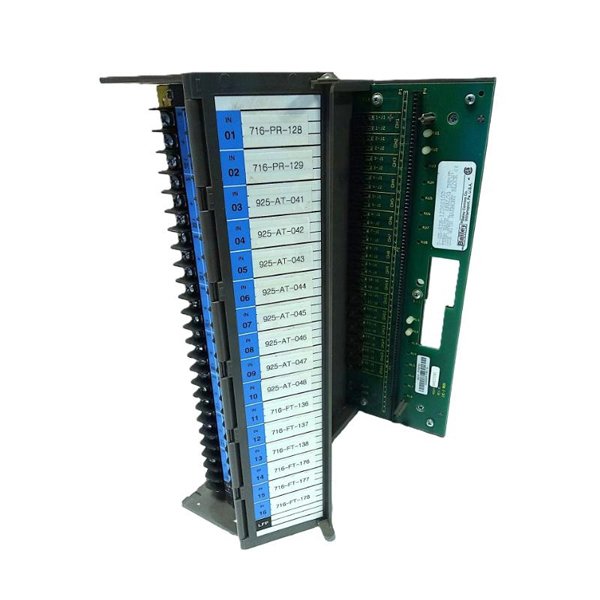

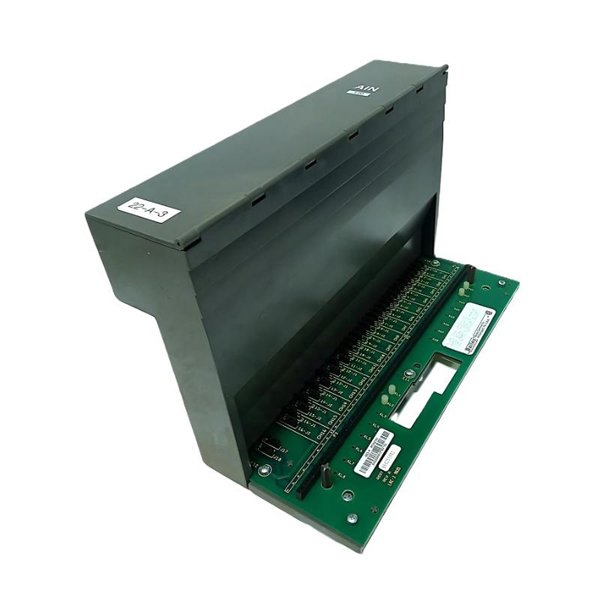

ABB Bailey PHBAIN1200S200 Analog Input Base

The ABB Bailey PHBAIN1200S200 is a high-performance analog input base module designed for use in distributed control systems (DCS), specifically within the INFI 90 control platform developed by Bailey Controls, now part of ABB. This base module provides the physical foundation for installing analog input modules, allowing for the transmission and acquisition of analog signals from field devices to the control system.

With its robust mechanical design and stable signal transmission capabilities, the PHBAIN1200S200 ensures dependable operation in critical industrial environments. It supports modular installation, simplifying system integration, expansion, and maintenance. It’s engineered to meet the high reliability and precision demanded in process automation sectors such as power generation, oil & gas, petrochemicals, and water treatment.

Product Specifications

Product Applications

The ABB PHBAIN1200S200 is widely used across industries that demand accurate and consistent analog signal acquisition. Some key applications include:

• Power Generation Plants – Monitoring pressure, temperature, flow, and other vital analog parameters.

• Oil & Gas Facilities – Acquiring data from field transmitters in hazardous environments.

• Chemical & Petrochemical Plants – Process variable monitoring for critical control loops.

• Water & Wastewater Treatment – Recording pH, flow rate, turbidity, and other analog measurements.

• Pulp and Paper – Monitoring moisture and material consistency.

Product Advantages

• Highly Reliable: Built to operate in demanding industrial environments with high signal integrity.

• Modular Design: Supports flexible installation and easy maintenance without full system shutdowns.

• Longevity: Proven stability in legacy systems; ideal for long-term operations in existing ABB/Bailey infrastructures.

• Signal Accuracy: Provides a clean interface between analog modules and the control backplane.

• System Compatibility: Seamless integration with ABB’s INFI 90 architecture and its input/output modules.

• Space Efficiency: Compact footprint with efficient wiring design for panel optimization.

Frequently Asked Questions (FAQ)

1. What is the main function of the PHBAIN1200S200?

The PHBAIN1200S200 serves as an analog input base, allowing analog input modules to interface with ABB’s INFI 90 distributed control system.

2. How many input channels can it handle?

The base itself doesn’t define the number of channels; this depends on the specific analog input module installed. Typically, it supports modules with 8 or 16 channels.

3. What types of analog signals are supported?

It supports both current (e.g., 4–20 mA) and voltage (e.g., 1–5 V) signals, depending on the input module used with the base.

4. Is any configuration software needed to use this module?

No dedicated software is required for the base. Configuration is usually done at the analog module or system level.

5. Is the PHBAIN1200S200 suitable for industrial environments?

Yes, it is designed for reliable operation in harsh environments, including those with high temperatures and vibrations.

6. How is the base mounted?

It can be mounted on a DIN rail or directly onto a panel, depending on the control cabinet design.

7. Does the base provide any visual indicators like LEDs?

No, the base itself does not include LEDs. Any signal or status indication is typically provided by the attached analog input module.

8. How does the base connect to other components in the system?

It connects via the system backplane, enabling communication between the analog input module and the INFI 90 controller.

9. Can the base be used with modules from newer ABB platforms?

No, it is specifically designed for use with the INFI 90 series and is not compatible with newer ABB systems without specialized adapters.

10. Should the system be powered down before installing or removing the base?

Yes, for safety and to prevent damage, the system should be powered off before installation or removal of the base unit.
