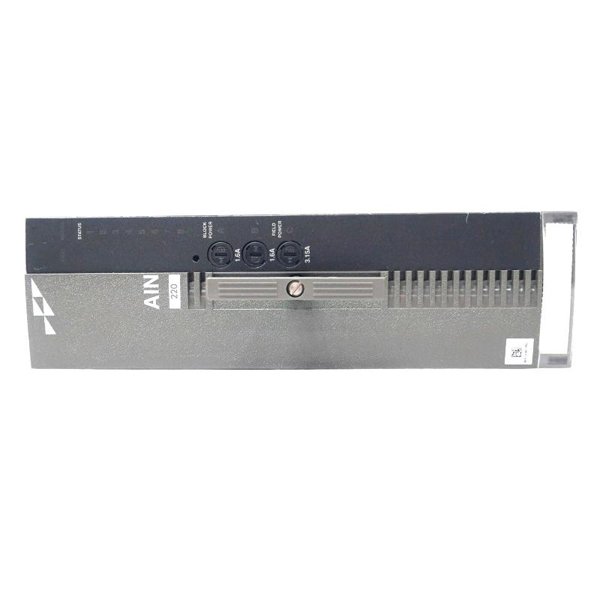

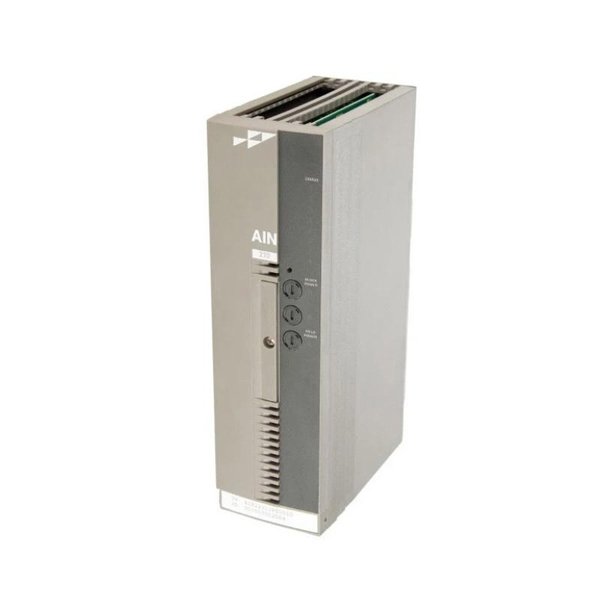

ABB Bailey PHBAIN2000C100 Analog Input Base

The ABB Bailey PHBAIN2000C100 is a high-performance Analog Input Base module designed to serve as a fundamental component within ABB’s widely recognized Bailey INFI 90 system. This unit functions as the backbone for analog input signal processing, providing a reliable platform for transmitting accurate and continuous analog signals to the control system.

With its robust design and excellent signal handling capabilities, the PHBAIN2000C100 ensures high integrity data acquisition for process monitoring and control in industrial automation environments. It is often used in critical systems that demand consistent analog input performance with minimal noise and interference.

As part of ABB’s legacy Bailey control system family, the PHBAIN2000C100 supports long-term stability, easy integration, and backward compatibility—making it ideal for modernization and plant extension projects.

Product Specifications

Applications

The PHBAIN2000C100 is widely used in a range of industrial applications where precision analog input data is crucial for monitoring and control processes. Common application fields include:

• Oil and Gas Processing

• Chemical and Petrochemical Plants

• Water Treatment Facilities

• Power Generation and Distribution

• Pharmaceutical Manufacturing

• Pulp and Paper Industry

• Food and Beverage Production

Product Advantages

• Stable Performance:

  Designed to deliver precise analog input readings with low drift and noise, even under challenging environmental conditions.

• High Integration:

  Seamlessly integrates with ABB Bailey’s INFI 90 system architecture for optimal data acquisition and signal processing.

• Modular Design:

  Enables easy replacement, upgrade, and maintenance without affecting other modules or system downtime.

• Diagnostic Capabilities:

  Built-in LED indicators offer real-time status monitoring, aiding in quick troubleshooting and maintenance efficiency.

• Durable Build:

  Engineered with rugged industrial-grade materials for extended operational lifespan in harsh industrial environments.

• Backward Compatibility:

  Supports legacy systems, allowing for cost-effective upgrades and system expansions without overhauling existing infrastructure.

Frequently Asked Questions (FAQ)

1. What is the main function of the PHBAIN2000C100?

It serves as an analog input base module that processes signals from field instruments and transmits them to the ABB control system.

2. How many analog input channels does this unit support?

It typically supports up to 16 analog input channels, depending on the attached signal modules.

3. Can the PHBAIN2000C100 be used in legacy systems?

Yes, it is fully compatible with ABB’s Bailey INFI 90 legacy systems and ideal for upgrade or expansion projects.

4. Is this module hot-swappable?

While the base itself is not hot-swappable, modules connected to it can be managed without system-wide shutdown, depending on rack setup.

5. What kind of input signals are accepted?

It accepts standard industrial analog signals like 4–20 mA and 0–10 V, depending on module configuration.

6. How does the module help in troubleshooting?

Integrated LED indicators provide diagnostics on signal and module status for quick fault isolation.

7. Is this model still actively supported by ABB?

Although it is part of a legacy series, ABB continues to provide limited support and spare parts for the PHBAIN2000C100.

8. What materials are used in its construction?

It is built with an industrial-grade printed circuit board and features an aluminum housing for durability.

9. Can it operate in harsh environments?

Yes, it operates reliably in industrial conditions with wide temperature and humidity tolerances.

10. Does the unit require calibration?

The analog input module may require periodic calibration to maintain precision, depending on usage and application requirements.
