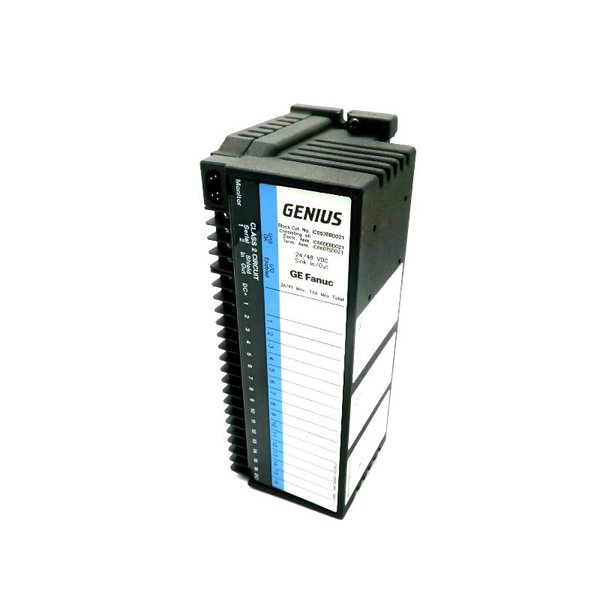

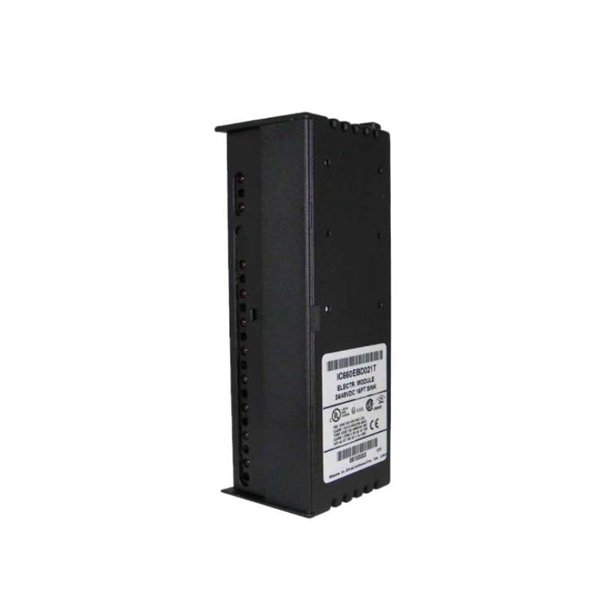

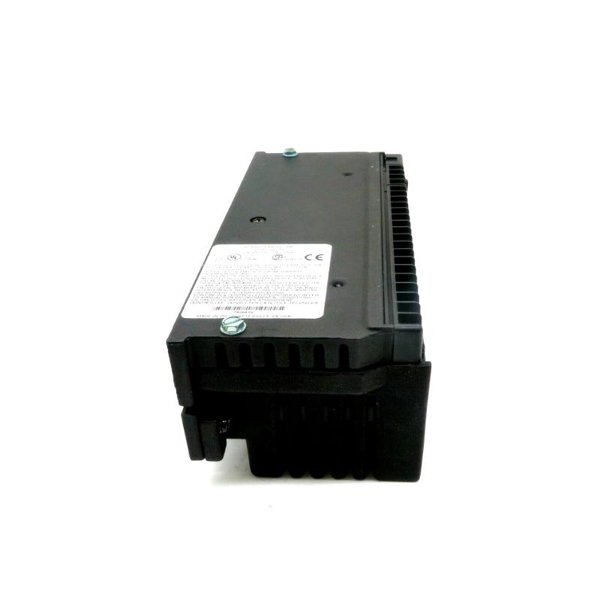

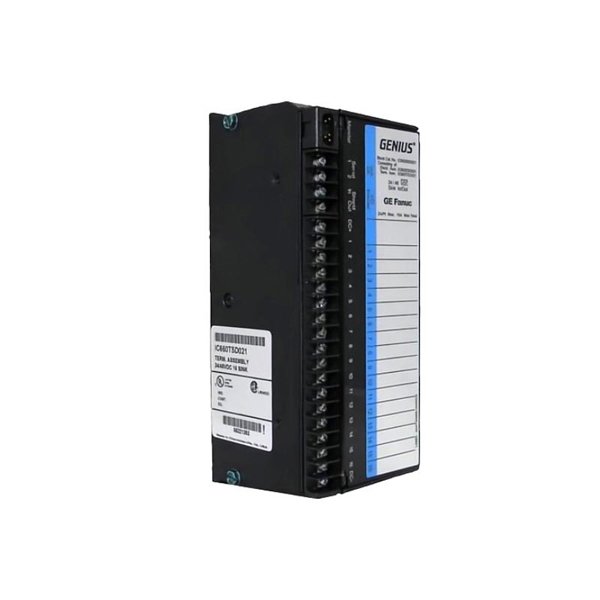

General Electric IC660EBD021 I/O Module Electronics

The GE IC660EBD021 I/O Module Electronics is a component of the renowned GE Genius I/O system, designed for replacement and maintenance of discrete I/O block electronics without having to replace the entire block assembly. This electronics module controls discrete input blocks and enables high-performance communication and processing on Genius I/O networks.

Engineered for rugged industrial environments, the IC660EBD021 provides a reliable, efficient solution to extend the life of distributed control systems. It supports a wide range of discrete applications, offering durability, flexibility, and built-in diagnostics to meet the critical demands of manufacturing, energy, and process industries.

Product Specifications

Product Applications

The IC660EBD021 module is broadly deployed in mission-critical and harsh industrial environments where discrete input management and durability are paramount. Key application areas include:

• Automotive manufacturing production lines

• Oil and gas exploration and refining control systems

• Packaging and material handling automation

• Water and wastewater treatment plant operations

• Food and beverage processing facilities

• Pharmaceutical manufacturing and quality control systems

• Mining and heavy equipment control panels

• Energy and utility distributed control networks

This module’s compatibility with existing Genius I/O infrastructures enables seamless system expansions and upgrades.

Product Advantages

• Extended Asset Life: By replacing only the electronics portion, users maximize the service life of the existing block installations, minimizing capital expenditure.

• Rapid Troubleshooting: LED status indicators and internal diagnostics speed up problem detection and resolution.

• Flexible Network Integration: Supports different baud rates and flexible addressing for Genius Bus network applications.

• Industrial-Grade Durability: Designed to withstand vibration, shock, temperature extremes, and environmental stress.

• Space-Efficient Design: Slim profile allows integration into compact control panels.

• Hot-Connect Ready (with Power Down): Enables quick replacement with minimal process disruption when properly powered down.

• Cost-Effective Maintenance: Simplifies system maintenance and reduces the need for full block replacement.

• Trusted Quality: Backed by GE’s rigorous quality standards and global industry certifications.

FAQ

1. What type of I/O does the IC660EBD021 support?

   It is designed for discrete input operations, supporting 16 isolated channels.

2. Can the IC660EBD021 be replaced without replacing the whole I/O block?

   Yes, it replaces just the electronics portion, leaving the mechanical block intact.

3. What communication protocol is used?

   It operates over the Genius Bus network, based on RS-485 standards.

4. Is the module hot-swappable?

   No, you must power down the block before replacing the electronics.

5. What industries commonly use this module?

   Industries such as automotive, energy, food and beverage, and manufacturing frequently deploy it.

6. What diagnostics features are available?

   Built-in diagnostics monitor input channel status and block health, visible via LED indicators.

7. What is the operating temperature range?

   The module is rated for operation from 0°C to 60°C.

8. Does it support redundant communication setups?

   Redundancy depends on system design, but Genius Bus can be engineered for redundant layouts.

9. What is the approximate weight of the IC660EBD021?

   It weighs about 1.43 kg.

10. What mounting method is used for this electronics module?

    It mounts directly onto the corresponding discrete input block.
