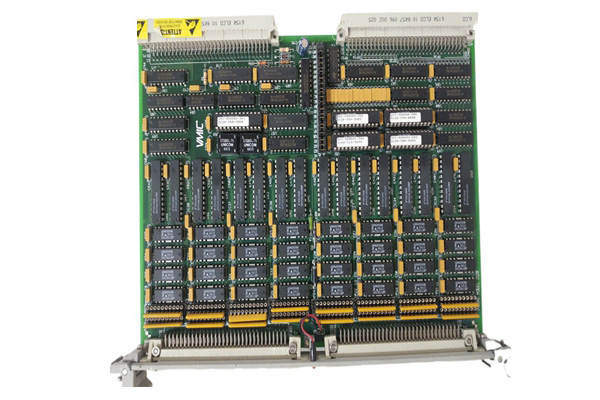

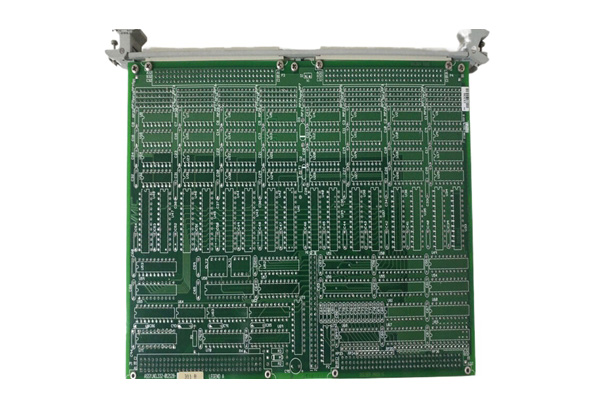

General Electric VMIVME-2128 High-Voltage Digital Output Board

The General Electric VMIVME-2128 module is an input and output module designed and produced by General Electric Fanuc (now produced by Abaco Systems). It is commonly used in industrial automation and control systems to achieve data input and output functions. The following is a detailed analysis of the General Electric VMIVME-2128 module:

Product Overview

Brand and model: General Electric Fanuc (currently produced by Abaco Systems), model VMIVME-2128.

Product type: Input/output module, which is part of the VMIC series of devices and also includes CPU modules, analog-to-digital converters, and other equipment.

Main functions and characteristics

Multi channel input/output:

The General Electric VMIVME-2128 module is equipped with multiple digital input and output channels, which can process multiple signals simultaneously and improve the parallel processing capability of the system.

This module also supports the input and output of analog and digital signals, ensuring accurate data acquisition and control operations.

High voltage and high current output:

As a high-voltage digital output board, VMIVME-2128 provides 128 channels of high-voltage and high current absorption output, equipped with a collector open circuit output driver, supporting a minimum DC output voltage of 5 to 48 volts.

High reliability:

This module adopts a highly reliable design and materials, which can operate stably in harsh industrial environments, reduce failure rates and maintenance costs.

It has a series of protective capabilities, such as automatic surge current shutdown protection and overheating protection, to prevent damage caused by overvoltage or overheating.

Multiple interfaces and communication protocols:

Support multiple communication protocols, such as Modbus, Profibus, etc., to facilitate integration and interconnection with other industrial automation equipment.

Strong scalability:

Multiple channels can be expanded as needed to support more digital signal inputs/outputs, improving the system’s processing power and response speed.

Easy to maintain and use:

Provides a user-friendly human-machine interface and diagnostic functions, facilitating user maintenance and use, reducing difficulty and maintenance costs.

Equipped with built-in self-test and diagnostic analysis functions, allowing operators to verify the functionality of each channel through software control.

Application field

The General Electric VMIVME-2128 module is widely used in industrial automation, data acquisition, testing and measurement fields that require high-speed digital input and output, such as high-speed data acquisition, high-speed control, high-speed signal processing, and other applications.

Environmental conditions

Working temperature range: 0 ° C to 70 ° C.

Storage temperature range: -40 ° C to 85 ° C.

In summary, the General Electric VMIVME-2128 module is a powerful, stable and reliable digital input and output module that is easy to integrate and expand, suitable for various industrial automation and control system application scenarios.
