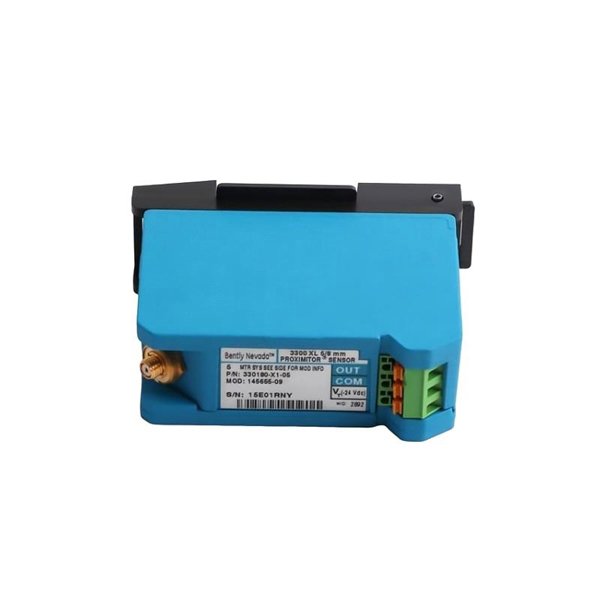

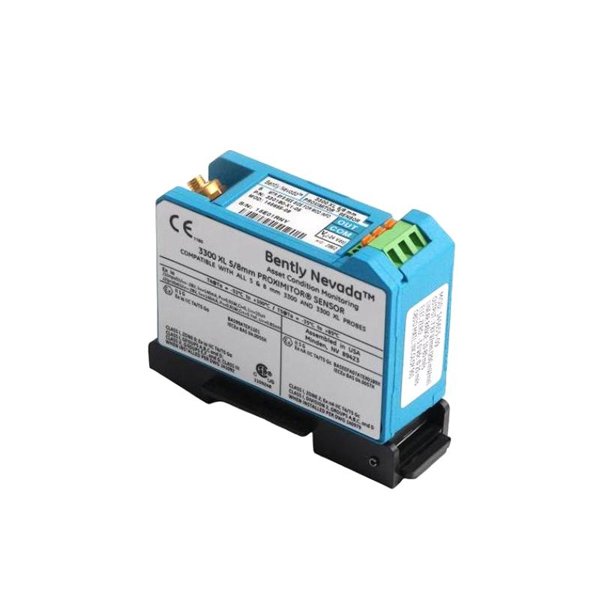

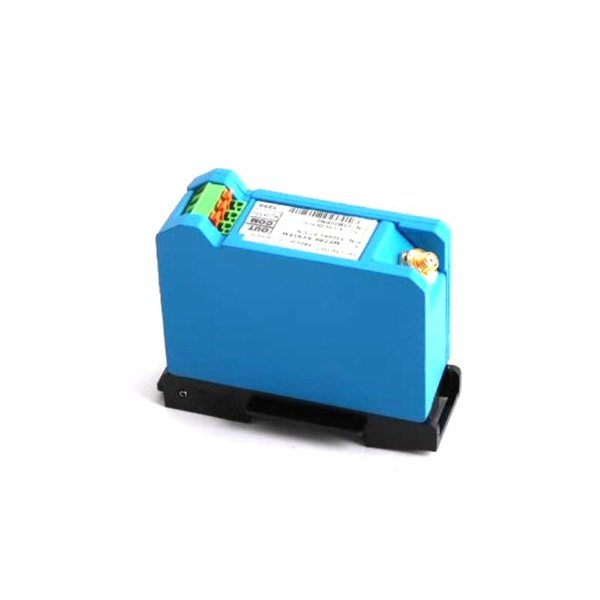

Bently Nevada 330180-52-CN 3300 XL 8mm Proximitor Sensor

The 330180-52-CN Proximitor Sensor is an integral component of Bently Nevada’s 3300 XL 8mm Proximity Transducer System, which includes a probe, extension cable, and the Proximitor sensor itself. This system is engineered to measure the distance between the probe tip and a conductive surface, providing critical data for assessing machine health. The 3300 XL series is renowned for its high performance, durability, and compliance with industry standards, making it a trusted solution for condition monitoring and machinery protection.​

Product Specifications

The following table outlines the key specifications of the Bently Nevada 330180-52-CN 3300 XL 8mm Proximitor Sensor:​

Applications

The 330180-52-CN Proximitor Sensor is utilized in a wide range of industrial applications, including:​

• Rotating Equipment Monitoring: Measures shaft position and vibration in turbines, compressors, pumps, and motors.​

• Thrust Position Monitoring: Assesses axial displacement in thrust bearing applications.​

• Eccentricity Measurement: Evaluates shaft eccentricity in large rotating machinery.​

• Condition Monitoring Systems: Integrates with Bently Nevada’s 3500 series machinery protection systems for continuous monitoring.​

• Hydrocarbon Processing Industries: Suitable for use in environments with hazardous gases and liquids.​

Advantages

The Bently Nevada 330180-52-CN offers several notable advantages:​

• High Accuracy and Linearity: Provides precise measurements essential for effective machine diagnostics.​

• Robust Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.​

• Enhanced RFI/EMI Immunity: Minimizes interference from radio frequency and electromagnetic sources, allowing installation in various enclosures without special shielding.​

• Ease of Installation and Maintenance: ClickLoc™ connectors facilitate secure connections without the need for special tools.​

• Interchangeability: Supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.​

• Compliance with Industry Standards: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.​

FAQ

1. What is the primary function of the 330180-52-CN Proximitor Sensor?

   • It measures the distance between the probe tip and a conductive surface, providing data on vibration and position for machinery monitoring.​

2. Can the 330180-52-CN be used in high-temperature environments?

   • Yes, it operates effectively in temperatures ranging from -35°C to +177°C (-31°F to +350°F).​

3. Is the sensor compatible with other Bently Nevada systems?

   • Yes, it is designed to integrate seamlessly with Bently Nevada’s 3500 series monitoring systems.​

4. What type of machinery is the sensor typically used with?

   • It is commonly used with turbines, compressors, pumps, and motors for monitoring shaft position and vibration.​

5. Does the sensor require special shielding against electromagnetic interference?

   • No, it has enhanced RFI/EMI immunity, allowing installation without special shielded conduit or metallic housings.​

6. How is the sensor installed?

   • It features ClickLoc™ connectors for secure, tool-free installation.​

7. What is the linear measurement range of the sensor?

   • It has a linear range of 2 mm (approximately 80 mils).​

8. Is the sensor resistant to corrosive environments?

   • Yes, it is designed with materials and construction that withstand corrosive industrial environments.​

9. Can the sensor be used in hazardous locations?

   • Yes, it is suitable for use in environments with hazardous gases and liquids, common in hydrocarbon processing industries.​

10. What maintenance is required for the sensor?

    • It requires minimal maintenance; however, regular inspections are recommended to ensure optimal performance.
