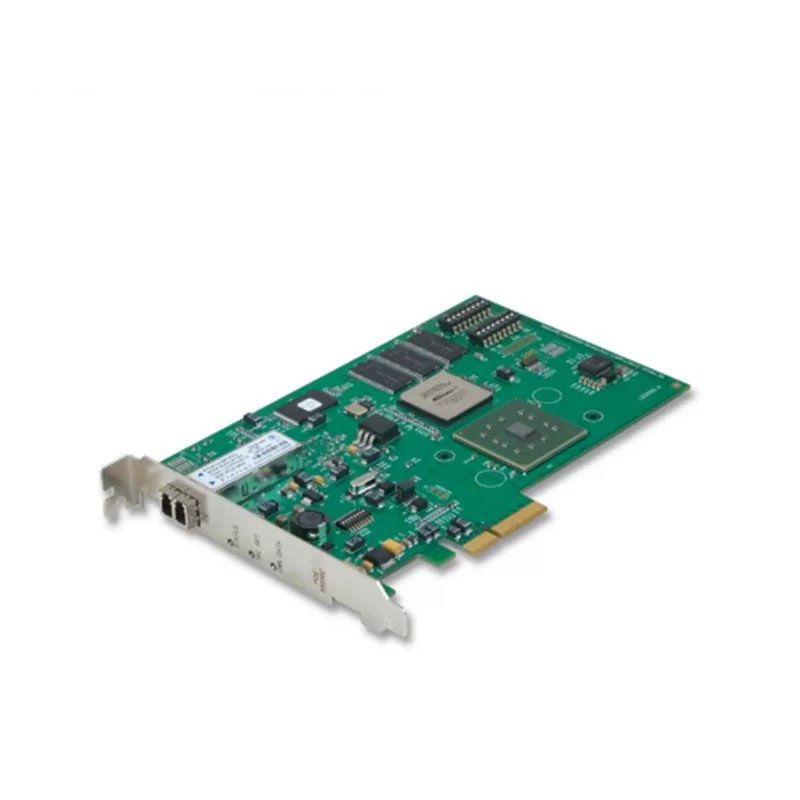

GE PMC-5565 Optic Reflective Memory Card

The GE PMC-5565 is a high-performance, ultra-high-speed fiber optic reflective memory card. It transfers data between nodes in real-time systems, making it ideal for demanding applications in defense, aerospace, and industrial control.

Key Features

• High-Speed Data Transfer: Transfers data at up to 2.125 Gbps over fiber optic cable.
• Long Reach: Supports up to 300 meters with multimode fiber and up to 10 km with single-mode fiber.
• Low Latency: Offers less than 1 microsecond latency.
• Small Form Factor: Fits as a PMC module.
• Rugged Construction: Designed for harsh environments.
• Multi-OS Support: Compatible with Windows, Linux, and VxWorks.

Available Models

The GE PMC-5565 comes in two models:

• PMC-5565: Basic reflective memory card.
• PMC-5565PIORC: Reflective memory card with interrupts, suitable for low-latency data transfer with guaranteed delivery.

Applications

The GE PMC-5565 excels in several applications:

• Defense: Radar, sonar, electronic warfare.
• Aerospace: Flight control systems, navigation systems, dataloggers.
• Industrial Control: SCADA systems, robotic controllers, machine vision systems.

Additional Specifications

• Memory Capacity: Available in 128 MB or 256 MB.
• Data Bus Width: 32 bits.
• Power Consumption: Consumes 5 watts.
• Operating Temperature: Functions between 0°C and 60°C.
• Storage Temperature: Can be stored between -40°C and 85°C.
