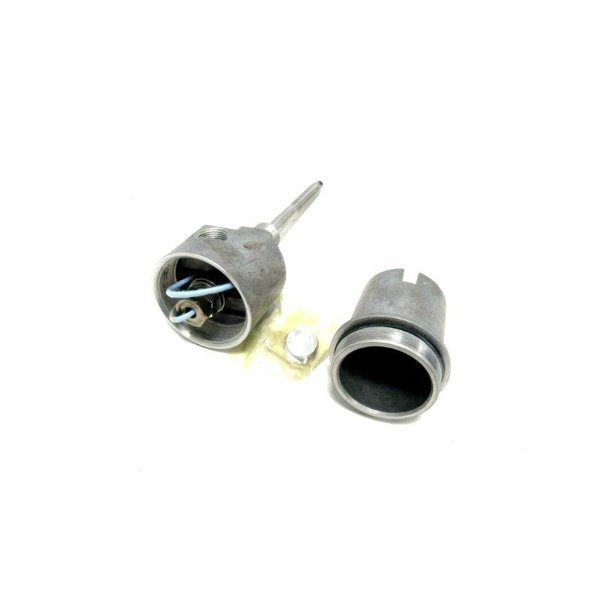

Bently Nevada 21000-16-10-00-114-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-10-00-114-03-02 Proximity Probe Housing Assembly is a precision-engineered component designed to provide secure and reliable mounting for proximity probes used in the condition monitoring of rotating machinery. This housing assembly is a critical element in ensuring the accurate measurement of shaft vibration and displacement by protecting the sensitive probe components from mechanical damage, environmental contaminants, and extreme operating conditions.

Manufactured from high-quality 316L stainless steel, this housing assembly exhibits exceptional resistance to corrosion and wear, making it suitable for harsh industrial environments such as power generation, oil and gas, petrochemical, and heavy manufacturing. The model 21000-16-10-00-114-03-02 stands out due to its robust design, flexibility in mounting, and proven reliability, helping plants achieve consistent machine health monitoring and reducing the risk of unplanned downtime.

Product Specifications

Product Applications

The 21000-16-10-00-114-03-02 housing assembly is widely used across industries where accurate and durable shaft vibration and position sensing is required. Typical applications include:

• Power Generation: Monitoring turbine shaft vibration in steam, gas, and hydro turbines.

• Oil & Gas Industry: Installed on compressors and pumps to ensure operational integrity.

• Petrochemical Plants: Withstands harsh chemical environments while providing reliable sensor protection.

• Heavy Industrial Machinery: Applied in motors, gearboxes, and blowers where vibration analysis is critical.

• Water Treatment and Hydroelectric Plants: Suitable for environments exposed to moisture and water spray.

• Manufacturing Plants: Used to monitor rotating equipment, preventing mechanical failures through early detection.

Product Advantages

• Durability: Constructed from 316L stainless steel for excellent corrosion and wear resistance.

• Reliable Protection: Provides dust-tight and splash-resistant sealing (IP65 standard, IP67 optional).

• Flexible Mounting: Threaded design allows installation in a variety of orientations to fit different machinery.

• Harsh Environment Suitability: Certified for hazardous locations with ATEX and IECEx options.

• Vibration Resilience: Engineered to tolerate intense vibration, maintaining sensor stability.

• Easy Maintenance: Designed for simple installation and servicing, reducing downtime.

• Broad Probe Compatibility: Supports a wide range of Bently Nevada proximity probes for ease of integration.

• Signal Integrity Assurance: Firm housing ensures accurate and consistent proximity measurements.

Frequently Asked Questions (FAQ)

1. Which probes are compatible with this housing?

   It supports Bently Nevada 3300 XL, 7200 series, and similar proximity probes.

2. What is the housing material?

   The housing is made from 316L stainless steel for high corrosion resistance.

3. What protection rating does this housing offer?

   Standard protection is IP65, with an option for IP67 for enhanced environmental sealing.

4. Can this housing be used in explosive atmospheres?

   Yes, it is available with certifications such as ATEX and IECEx for hazardous environments.

5. What temperature range can it operate in?

   The operating temperature range is -55°C to +200°C (-67°F to +392°F).

6. How resistant is the housing to vibration?

   It can handle vibrations up to 20 g in the frequency range of 10 to 2000 Hz.

7. What are the dimensions and weight of the housing?

   Diameter is 50 mm (1.97 in),weight 1.1 kg

8. Is epoxy potting mandatory for installation?

   No, epoxy potting is optional. The housing uses an O-ring seal by default.

9. What type of cable entry does the housing use?

   It has a ½” NPT threaded side cable entry.

10. Can this housing be customized for specific applications?

    Yes, customization options include sealing type, certifications, and cable entry variations.
