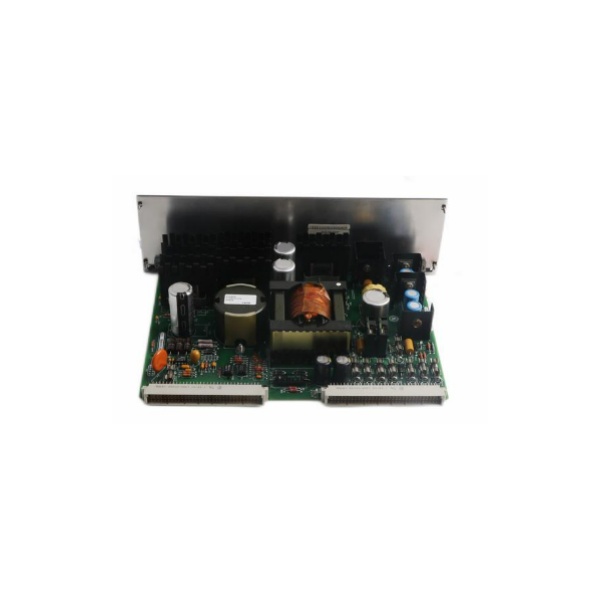

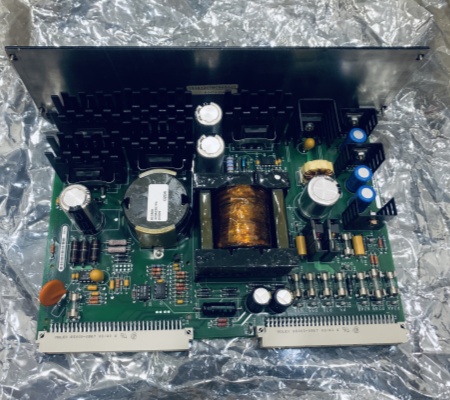

General Electric IS200EPSMG1A EX2100 Exciter Power Supply Module

The EPDM provides power for the control, I/O, and protection boards. It is mounted on the body of the EPBP and accepts a 125 V DC supply from the station battery, and one or two 115 V AC supplies. All power inputs are analog. Each AC supply is regulated to a 125 V DC supply via an AC-DC converter (DACA). The two or three DC voltages generated are coupled together differentially to form DC power sources, named P125V and N125V. Due to the center ground, the ground values ​​of these voltages are +62.5 V and -62.5 V to ground. The individual power supply outputs provided to the excitation board are fused. They have an on/off toggle switch, and a green LED spindle to show the power supply availability. These outputs can supply up to three EGPA boards, one EXTB board, and three EPSM modules serving three controllers.

Frequently asked questions about the product are as follows:

-What is GE IS200EPSMG1A?

IS200EPSMG1A is an exciter power module designed by General Electric (GE) for EX2100 excitation control system. It provides power to the exciter system in turbine control applications.

-What is the main function of GE IS200EPSMG1A?

Provide regulated power to the exciter system to ensure stable and reliable operation of the excitation control system.

-Where is it usually used?

Used in gas and steam turbine control systems, especially in power generation applications.
