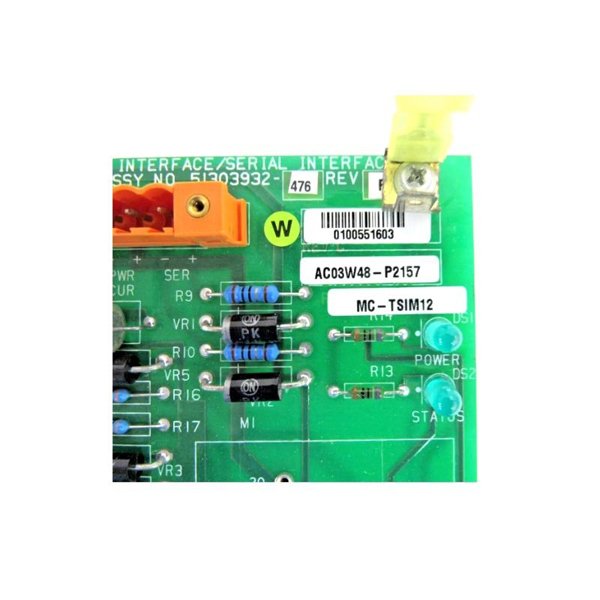

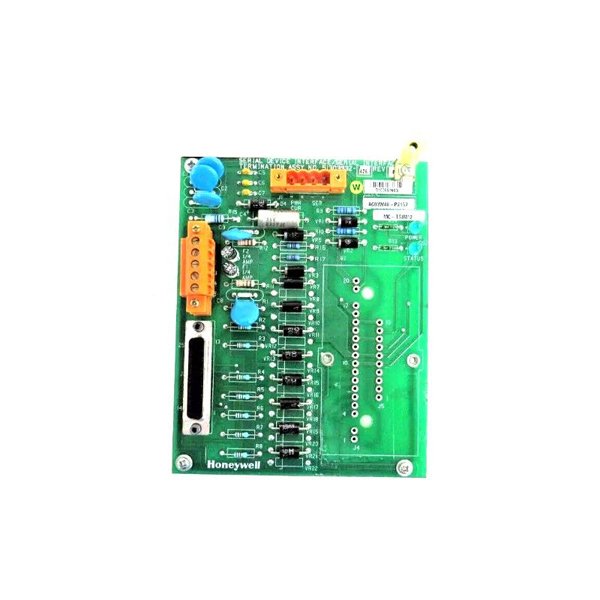

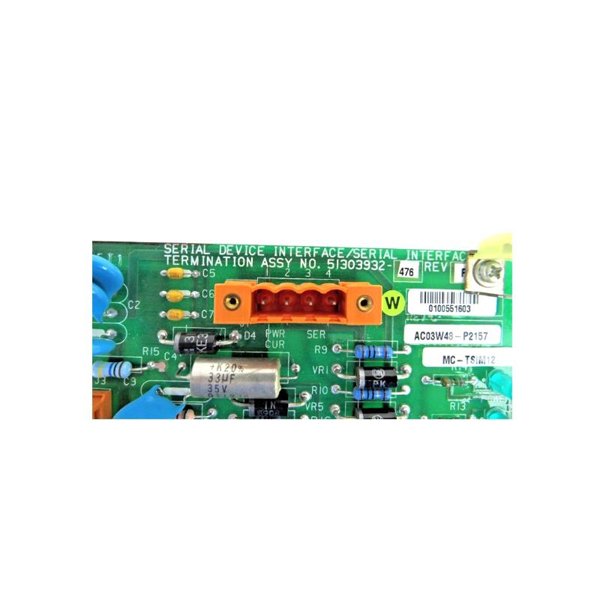

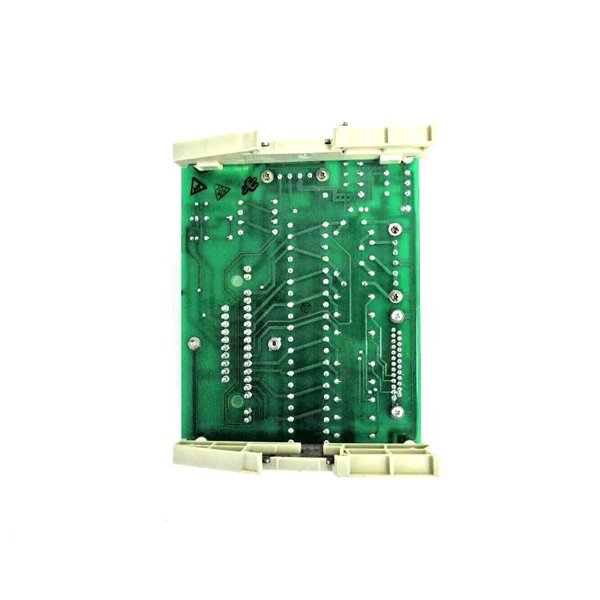

Honeywell MC-TSIM12 51303932-476 Modbus Serial Interface FTA

The Honeywell MC-TSIM12 51303932-476 is a Modbus Serial Interface FTA designed for industrial automation and control systems. This device provides a reliable and efficient means for integrating Modbus RTU/ASCII compatible devices into Honeywell’s Experion Process Knowledge System (PKS) or other distributed control systems (DCS). The module enables seamless communication between Modbus-enabled devices and control systems, ensuring a smooth flow of data for process monitoring and control applications.

The MC-TSIM12 is part of Honeywell’s Modbus series, designed to support high-speed data communication and robust error handling in demanding industrial environments. By utilizing the Modbus RTU/ASCII protocol, the module can handle multiple devices, allowing for greater flexibility and scalability within industrial systems.

With simple configuration and installation, the MC-TSIM12 makes it easier to integrate existing equipment without the need for complex software upgrades or infrastructure changes. The FTA (Field Termination Assembly) design makes it a versatile solution for multiple applications across various sectors.

Product Specifications

Applications

The Honeywell MC-TSIM12 51303932-476 Modbus Serial Interface FTA is designed for use in a wide range of industrial automation and process control systems. Key applications include:

1. Oil & Gas Industry: Used to connect pressure transmitters, flow meters, and temperature sensors to control systems for remote monitoring and data collection.

2. Power Generation: Enables communication between turbines, generators, and monitoring systems, ensuring seamless integration into DCS/SCADA systems.

3. Water Treatment: Facilitates data exchange between flow meters, pumps, and control systems, helping optimize water distribution and treatment processes.

4. Manufacturing: Allows integration of sensors, PLCs, and other Modbus devices in production lines, improving process automation.

5. Building Automation: Integrates with HVAC systems, energy meters, and security devices, enabling better control and efficiency in facility management.

6. Chemical Processing: Supports communication with chemical analyzers, actuators, and batch controllers, helping maintain process stability and accuracy.

7. Automotive Manufacturing: Connects sensors, controllers, and assembly line devices to central control systems, ensuring continuous production monitoring.

8. Renewable Energy: Helps integrate solar inverters, wind turbine controllers, and battery storage systems for better data acquisition and system performance analysis.

Advantages

The MC-TSIM12 51303932-476 Modbus Serial Interface FTA offers several advantages for industrial applications, including:

1. Modbus RTU/ASCII Compatibility: Supports Modbus communication for easy integration with a variety of industrial devices and equipment.

2. High-Speed Data Transfer: Capable of handling baud rates of up to 115200 bps, ensuring fast and efficient communication.

3. Multiple Channels: Provides 2 independent Modbus serial channels, allowing for flexible connection options.

4. Error Detection: Equipped with CRC and parity checking for reliable data transmission and integrity.

5. Versatile Mounting: Can be easily mounted in a rack or on a DIN rail, providing flexibility for different installation environments.

6. Compact and Lightweight: With dimensions of 160mm x 100mm x 35mm and weighing just 0.85 kg, it is ideal for applications where space is limited.

7. Low Power Consumption: Consumes less than 5W, making it energy-efficient for long-term operations.

8. Wide Temperature Range: Operates effectively in environments with temperatures ranging from -10°C to +60°C, suitable for harsh industrial conditions.

9. Easy Integration: Simplifies the integration of Modbus devices into Honeywell control systems, ensuring a smooth deployment process.

10. Industry-Compliant: Meets international standards such as CE, FCC, RoHS, and ISO 9001, ensuring safety and reliability.

Frequently Asked Questions (FAQ)

1. What is the primary function of the MC-TSIM12 51303932-476?

   It facilitates Modbus RTU/ASCII communication between industrial devices and control systems, enabling data exchange and process monitoring.

2. How many Modbus channels does the MC-TSIM12 support?

   It supports 2 independent Modbus serial channels.

3. What is the maximum baud rate supported by the module?

   The module supports baud rates up to 115200 bps.

4. What power supply does the MC-TSIM12 require?

   It operates on a 24V DC power supply with a consumption of less than 5W.

5. What is the operating temperature range?

   The module operates between -10°C to +60°C.

6. Can the MC-TSIM12 be mounted on a DIN rail?

   Yes, the module can be mounted on a DIN rail or in a rack-mounted configuration.

7. Is the MC-TSIM12 compatible with other Honeywell control systems?

   Yes, it is fully compatible with Honeywell Experion PKS and other Honeywell DCS platforms.

8. Does it support error detection?

   Yes, it supports CRC and parity checking for reliable communication.

9. What is the weight and size of the MC-TSIM12?

   The module has dimensions of 160mm x 100mm x 35mm and weighs 0.85 kg.

10. Is the MC-TSIM12 certified for international standards?

    Yes, it complies with CE, FCC, RoHS, and ISO 9001 standards.
