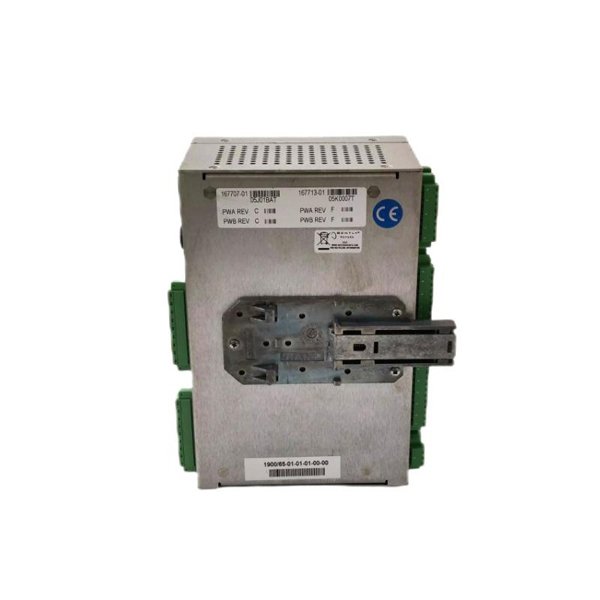

Bently Nevada 1900/65A 167699-02 General Purpose Equipment Monitor Display Module

The Bently Nevada 1900/65A 167699-02 is a General Purpose Equipment Monitor Display Module designed to provide a user-friendly interface for monitoring the operational status of critical industrial machinery. This display module integrates seamlessly with the Bently Nevada 1900/65A General Purpose Equipment Monitor to deliver real-time data, such as vibration readings, temperature, and machine health status, directly to operators and maintenance teams. The 1900/65A Display Module is an essential component for any condition monitoring system, providing immediate visual feedback and allowing for quick intervention in case of anomalies.

This display module is particularly suitable for industries where downtime due to equipment failure can be costly, such as power generation, oil and gas, and manufacturing. With the 1900/65A, operators can monitor machine health from a distance, reducing the need for frequent onsite inspections and ensuring that maintenance is performed proactively.

Product Specifications

Applications

The Bently Nevada 1900/65A 167699-02 Display Module is designed for use in industries where machinery uptime is critical. Its applications include:

1. Condition Monitoring: Used in combination with the 1900/65A Equipment Monitor, the display module provides real-time data on the operational health of machinery.
2. Vibration Analysis: It offers continuous monitoring of vibration data, helping to detect early signs of wear and tear in machinery such as motors, turbines, and pumps.
3. Temperature Monitoring: The display module allows operators to monitor temperature levels and receive alerts for any abnormal readings.
4. Process Industries: Ideal for oil & gas, power plants, and manufacturing sectors, where high-value assets need constant monitoring.
5. Predictive Maintenance Systems: Integrated into predictive maintenance strategies, helping companies plan maintenance before a failure occurs.
6. Safety and Alarm Management: Provides alarms and status indicators, which are essential for ensuring the safety of critical equipment.

Advantages

• User-Friendly Display: The 7-segment LED display offers clear, readable status information and alerts, even in challenging lighting conditions.
• Real-Time Monitoring: The module offers continuous, real-time monitoring of machinery, alerting operators to any deviations from normal operating conditions.
• Seamless Integration: It integrates seamlessly with the Bently Nevada 1900/65A General Purpose Equipment Monitor, providing a centralized view of machinery health.
• Improved Efficiency: By providing immediate data, it allows operators to make faster decisions, leading to more efficient maintenance processes and reduced downtime.
• Durable and Reliable: Built to withstand harsh industrial environments with a wide operating temperature range and robust protection rating.
• Cost-Effective: Enhances the value of the equipment monitoring system without requiring additional complex hardware.
• Remote Access: With its communication capabilities (RS-485 and Modbus RTU), the display module can be connected to remote monitoring systems, providing flexibility in operation.
• Compact Design: Its compact size allows for easy installation in control rooms or on machinery panels, without taking up much space.

FAQ

1. What is the Bently Nevada 1900/65A 167699-02 Display Module?

   • The Bently Nevada 1900/65A Display Module is a user-friendly display system that integrates with the Bently Nevada 1900/65A General Purpose Equipment Monitor to provide real-time machine health data.

2. How does the display module work with the 1900/65A Equipment Monitor?

   • It displays operational data, including vibration and temperature readings, and provides alarm indications, making it easier for operators to monitor the equipment’s health.

3. What kind of display does the module use?

   • It features a 7-segment LED display with multi-color indicators, ensuring clear and immediate recognition of equipment status.

4. What are the primary functions of the Bently Nevada 1900/65A Display Module?

   • The module shows machine status, alarms, and operational parameters such as vibration and temperature, helping operators monitor and protect machinery.

5. Is the 1900/65A Display Module compatible with other Bently Nevada products?

   • Yes, it is specifically designed to integrate with the 1900/65A Equipment Monitor and can also be used in conjunction with other Bently Nevada monitoring systems.

6. How is the 1900/65A Display Module mounted?

   • It can be mounted on a panel or a DIN rail, providing flexibility in installation.

7. What are the communication options for the display module?

   • The module supports RS-485 and Modbus RTU communication, making it suitable for integration with remote monitoring systems.

8. What industries can benefit from the 1900/65A Display Module?

   • It is ideal for industries like oil and gas, power generation, and manufacturing, where machinery uptime and reliability are critical.

9. Can the display module be used in harsh environments?

   • Yes, it is designed to operate in challenging industrial environments, with a wide operating temperature range and an IP20 protection rating.

10. What is the power requirement for the Bently Nevada 1900/65A Display Module?

    • The module operates with a 24V DC power supply.
