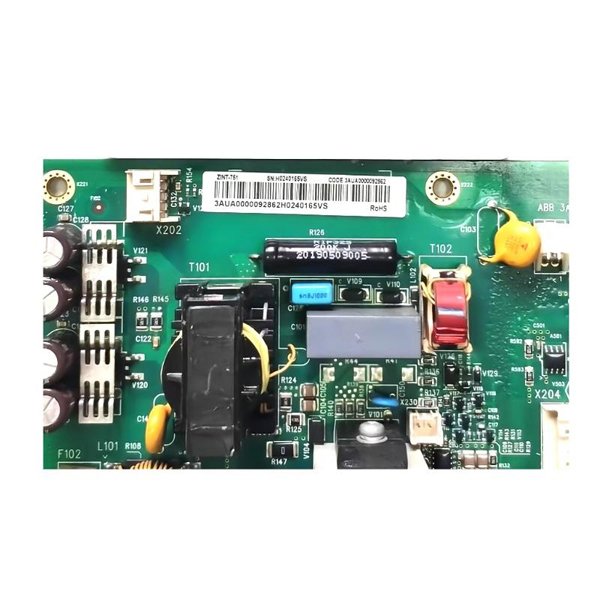

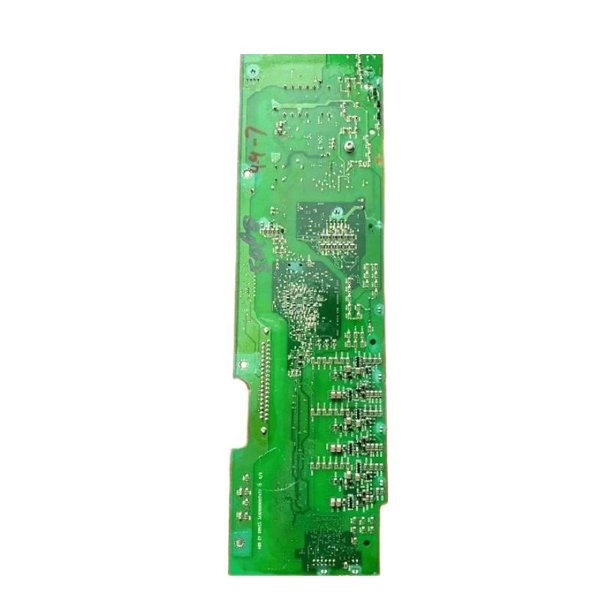

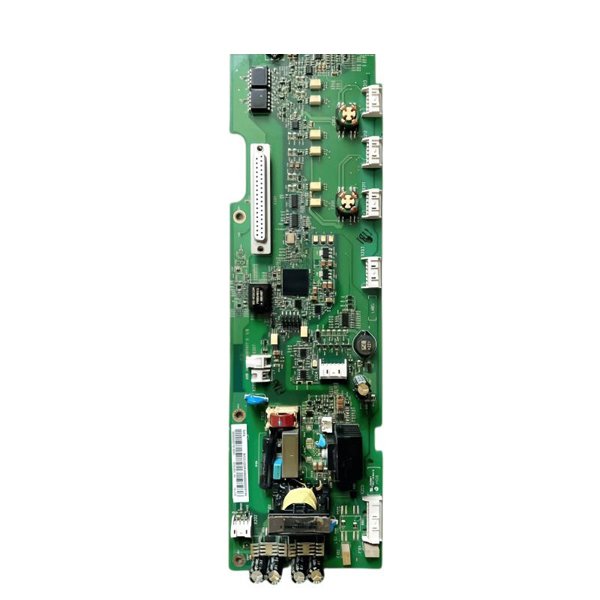

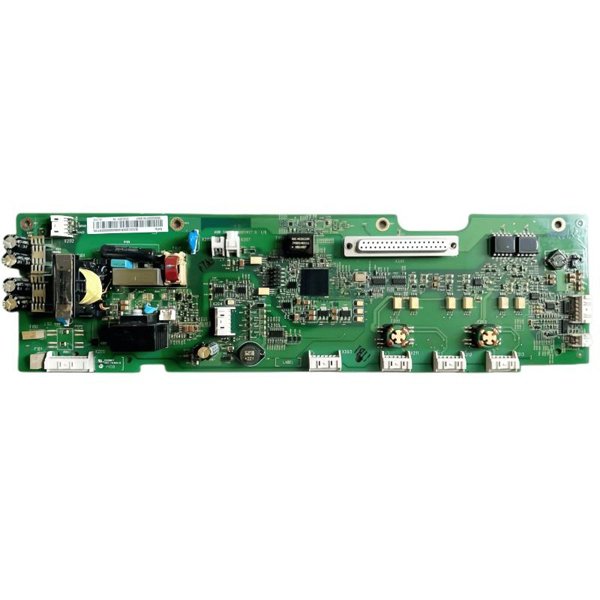

ABB ZINT-751 Driver Board
Manufacturer:ABB
Product Number:ZINT-751
Product Type:Driver Board
Origin:Sweden
Dimensions:180 × 130 × 25 mm
Weight:0.35 kg
Views:18
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB ZINT-751 Driver Board is a highly reliable and precision-engineered circuit board used in ABB’s advanced control systems, particularly within its Industrial Drives and Power Electronics platforms. Serving as a core interface module, the ZINT-751 is designed to manage and amplify control signals between central processors and power components such as IGBTs, gate drivers, and power converters.
This board plays a critical role in ensuring safe switching operations, electrical isolation, and timely signal transmission within medium and high-voltage drive systems. Known for its robust design, high-temperature endurance, and fault-tolerant features, the ZINT-751 is widely used in ABB’s ACS and DCS product families, particularly where signal reliability and operational stability are non-negotiable.
Whether integrated into drive cabinets for industrial motors, or in converter systems for renewable energy, the ZINT-751 ensures long-term performance and dependable operation in even the harshest electrical environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ZINT-751 Driver Board |
| Manufacturer | ABB |
| Product Type | Signal Driver/Interface Board |
| Application Platform | ABB ACS / DCS Drive Systems |
| Function | Signal interfacing, amplification, isolation |
| Input Voltage | 15–24 VDC (typical control power input) |
| Signal Type | PWM signal control, gate triggering |
| Control Interface | Fiber-optic or electrical (depending on version) |
| PCB Type | Multi-layer industrial-grade circuit board |
| Cooling Method | Passive (board-mounted) |
| Mounting Type | Screw-mounted or slotted bracket (varies by version) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| ESD Protection | Integrated |
| Status Indicators | Onboard LEDs (diagnostic/fault) |
| Dimensions (W × H × D) | 180 × 130 × 25 mm |
| Weight | 0.35 kg |
| Compliance | CE, RoHS, UL Recognized |
Applications
The ABB ZINT-751 Driver Board is utilized in high-reliability industrial systems where precise electrical control and robust signal interfacing are essential. Key application areas include:
Industrial Motor Drives
Used in ABB ACS drives to ensure accurate IGBT gate control and motor switching operations.
Power Conversion Systems
Interfaces between control units and power semiconductors in rectifier and inverter circuits.
Renewable Energy
Supports energy inverters and grid converters in wind, solar, and battery energy storage systems.
Metals & Mining Equipment
Provides signal protection and fault management in heavy-load motor control systems.
Pulp & Paper Automation
Controls synchronized drive signals in roller and conveyor systems.
Transportation Infrastructure
Deployed in railway traction and tunnel ventilation systems for high-voltage signal switching.
Product Advantages
High Signal Integrity
Ensures minimal interference and maximum fidelity in high-frequency control signals.
Enhanced Isolation Protection
Protects main control systems from high-voltage disturbances using galvanic isolation.
Long Lifecycle Reliability
Industrial-grade materials and thermal resilience ensure performance over extended operational cycles.
Plug-and-Play Compatibility
Engineered for seamless integration into ABB ACS and DCS systems without modification.
Diagnostic LEDs
Simplifies troubleshooting by indicating operational or fault states visually.
Compact and Lightweight
Designed to fit within constrained industrial enclosures while remaining thermally efficient.
Frequently Asked Questions (FAQ)
1. What is the main function of the ZINT-751 driver board?
It acts as an interface for control signals, managing and isolating signal pathways between the CPU and power switching elements.
2. Is the ZINT-751 compatible with all ABB drives?
It is primarily compatible with ABB’s ACS and DCS drive series; compatibility with other models should be verified case by case.
3. Can this board be replaced in the field?
Yes, the ZINT-751 is field-replaceable, although ABB recommends trained service personnel perform the operation.
4. What type of cooling does this board require?
It typically relies on passive cooling through the drive enclosure and airflow design.
5. Are there onboard diagnostics?
Yes, it includes LED indicators for operational status and fault diagnostics.
6. Does it offer electrical isolation?
Yes, it provides galvanic isolation between control signals and power circuitry.
7. What is the standard voltage input range?
Most versions operate within a 15–24 VDC input control voltage range.
8. Is the ZINT-751 board RoHS compliant?
Yes, it meets RoHS and CE standards for environmental compliance.
9. Can it be used in inverter-based renewable energy systems?
Yes, it is suitable for integration into inverters and converters in solar, wind, and battery applications.
10. What tools are required for installation?
Standard screwdrivers and antistatic tools are sufficient; follow ABB installation protocols for safety.
