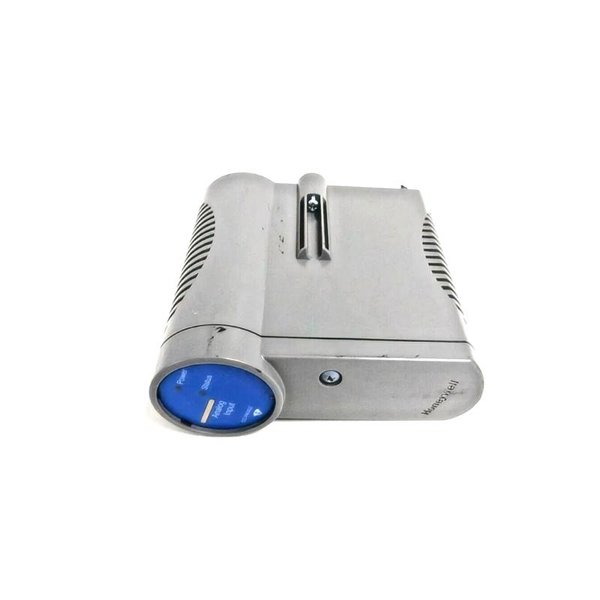

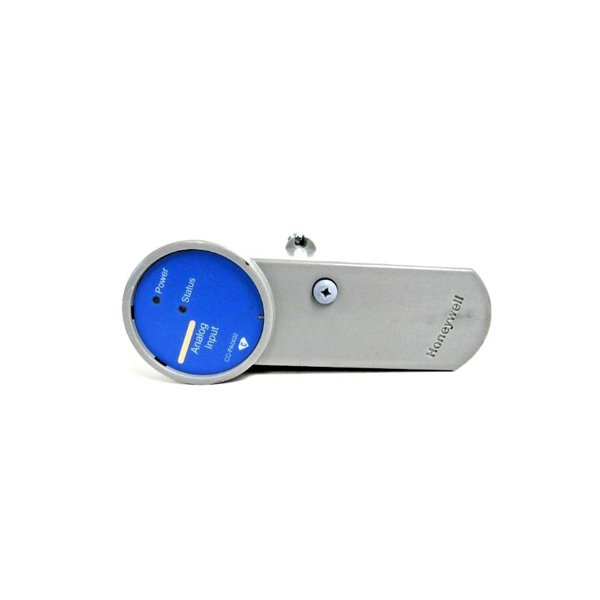

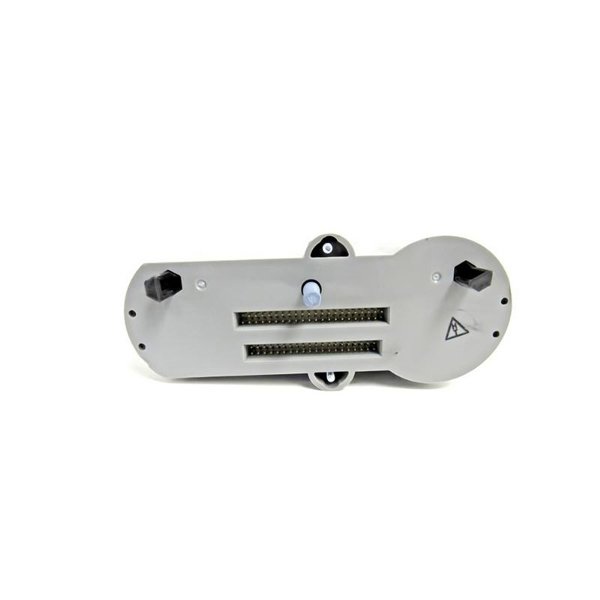

Honeywell CC-PAIX02 51405038-475 Analog Input Module

The Honeywell CC-PAIX02 51405038-475 Analog Input Module is an advanced component designed to provide precise and reliable data acquisition within Honeywell’s Experion Process Knowledge System (PKS) and other automation platforms. This module specifically supports various analog inputs including thermocouples and resistance temperature detectors (RTDs), making it ideal for temperature measurement and other process variable monitoring.

With robust signal conditioning and noise filtering, the CC-PAIX02 ensures accurate, stable inputs that enhance the control system’s responsiveness and reliability. The module’s design emphasizes ease of installation and maintenance, fitting seamlessly into Honeywell’s modular control racks. This unit is particularly valued for its role in environments demanding exact temperature data and stable performance under industrial conditions.

The CC-PAIX02 supports high channel density and fault diagnostics, which facilitate streamlined wiring and fast troubleshooting, ultimately improving plant uptime and operational efficiency.

Product Specifications

Product Applications

• Temperature Monitoring: Precise acquisition of temperature signals from thermocouples and RTDs in industrial processes.

• Chemical and Petrochemical Plants: Critical for maintaining safe operating temperatures and monitoring reaction conditions.

• Power Generation: Ensures accurate temperature readings in turbines, boilers, and cooling systems.

• Pharmaceutical Manufacturing: Controls environment and process temperatures for quality assurance.

• Food and Beverage Industry: Monitors process temperatures to maintain product safety and consistency.

• Water Treatment Facilities: Tracks temperature changes to optimize chemical dosing and process control.

Product Advantages

• Wide Input Compatibility: Supports multiple thermocouple types and RTDs, providing versatility in sensor choice.

• High Accuracy: Ensures precise temperature measurement with ±0.1% accuracy of span.

• Reliable Signal Conditioning: Advanced filtering reduces noise for stable readings even in electrically noisy environments.

• Compact and Modular Design: Saves cabinet space and allows easy integration into Honeywell rack systems.

• Diagnostic Capabilities: Built-in fault detection helps identify wiring and sensor issues quickly.

• Robust Industrial Performance: Designed to withstand harsh environmental conditions including temperature and humidity variations.

• Seamless Integration: Fully compatible with Honeywell Experion PKS and other process control systems.

• Improved Maintenance: Modular plug-and-play design enables quick replacement and minimal downtime.

Frequently Asked Questions (FAQ)

1. What sensor types does the CC-PAIX02 module support?

   It supports thermocouples of types J, K, T, E, R, S, B, N and RTDs like Pt100 and Pt1000.

2. How many analog input channels does the module have?

   The module provides 8 analog input channels.

3. What is the temperature measurement range?

   Thermocouples: -200°C to 1820°C; RTDs: -200°C to 850°C.

4. What level of accuracy can I expect from this module?

   The accuracy is ±0.1% of the signal span.

5. Is this module compatible with Honeywell Experion PKS?

   Yes, it is fully compatible with Honeywell Experion PKS and similar systems.

6. Can the module detect wiring or sensor faults?

   Yes, it includes built-in diagnostics for fault detection.

7. What are the physical dimensions of the module?

   The dimensions are 63.5 x 124.46 x 307.34 mm.

8. What power supply does the module require?

   It operates on 24 V DC supplied from the mainframe rack.

9. Is the module suitable for use in harsh industrial environments?

   Yes, it is designed to operate reliably within 0°C to 60°C and withstand high humidity (up to 95%).

10. Can this module be used in safety-critical applications?

    While the module is reliable, safety system certification depends on the overall system design and additional safety components.
