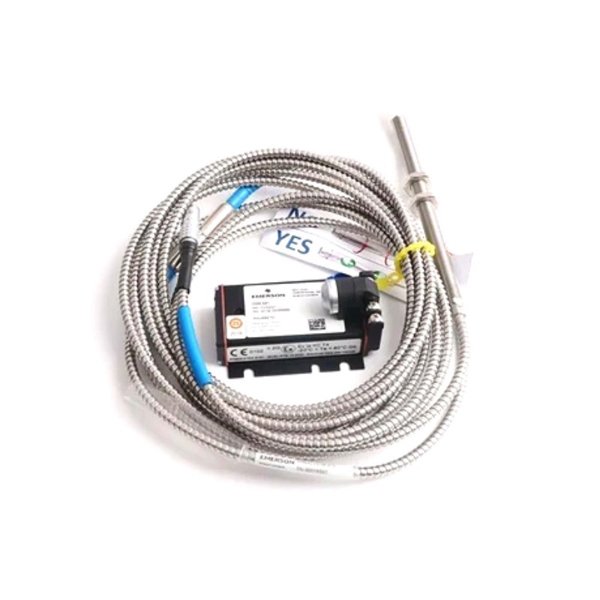

Epro PR6424/001-010 16mm Eddy Current Sensor

The Epro PR6424/001-010 is a high-precision eddy current sensor designed specifically for non-contact displacement measurement in industrial environments. Manufactured by Epro, a trusted brand in condition monitoring and vibration measurement technology, this sensor offers robust performance and reliability in demanding applications such as turbines, compressors, pumps, and other rotating machinery.

With a 16mm probe diameter, the PR6424/001-010 delivers precise monitoring of axial and radial shaft displacement, vibration, and eccentricity. When paired with the CON021 converter, the system provides a complete signal conditioning and data acquisition solution.

This sensor plays a crucial role in protecting critical machinery from damage by detecting early signs of misalignment, shaft bending, and imbalance—making it an essential component for predictive maintenance systems.

Product Specifications

Applications

The Epro PR6424/001-010 sensor is utilized across various industries where real-time machine condition monitoring is critical. Typical applications include:

• Gas and Steam Turbines – Measuring shaft displacement and vibration to avoid unplanned downtime.

• Centrifugal Compressors – Monitoring radial movement for dynamic balancing.

• Large Motors and Generators – Ensuring optimal alignment and detecting eccentric rotation.

• Pumps and Fans – Observing vibration levels to prevent bearing damage or cavitation.

• Gearboxes – Identifying misalignment or gear tooth wear.

• Hydroelectric Equipment – Ensuring operational stability through vibration tracking.

Product Advantages

• High Precision and Sensitivity

  Provides extremely accurate displacement measurement, ensuring early fault detection.

• Rugged Design for Industrial Use

  Built with stainless steel housing and IP68 protection, ideal for harsh environments.

• Non-Contact Measurement

  Ensures no physical wear on the probe or machinery, prolonging sensor lifespan.

• Wide Temperature Range

  Operates efficiently in both high and low-temperature industrial settings.

• Long Cable Integration

  Standard 10-meter cable simplifies installations in hard-to-reach areas.

• Excellent Compatibility

  Seamless integration with the Epro CON021 converter and MMS monitoring systems.

Frequently Asked Questions (FAQ)

1. What is the primary use of the PR6424/001-010 sensor?

   It is used for non-contact measurement of shaft displacement, vibration, and positioning in rotating machinery.

2. What type of signal does the sensor output?

   The sensor outputs an analog voltage signal when connected through a CON021 converter.

3. Can this sensor be used in explosive environments?

   Yes, versions with ATEX and IECEx certifications are available for hazardous areas.

4. What is the maximum temperature the sensor can withstand?

   The sensor can operate at temperatures up to +180°C.

5. Is this sensor suitable for marine or wet environments?

   Yes, the IP68 rating makes it suitable for immersion and wet environments.

6. How is the sensor mounted?

   It features an M14 x 1.5 threaded housing for easy mounting into standard fittings.

7. Does it require a separate converter for signal processing?

   Yes, it is designed to work with the Epro CON021 signal converter.

8. Can it detect both radial and axial shaft movement?

   Yes, depending on the installation orientation and system configuration.

9. What kind of maintenance is required?

   Minimal maintenance is needed, but periodic visual inspection and signal verification are recommended.

10. Is the cable length customizable?

    The standard model includes a 10-meter cable, but custom lengths may be available upon request.
