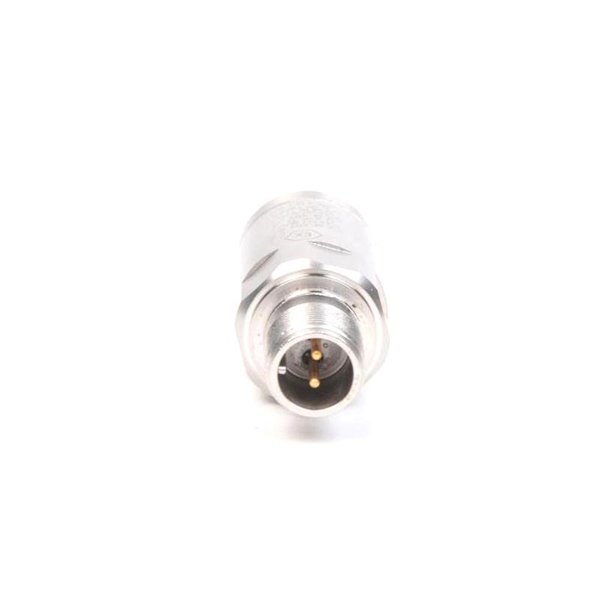

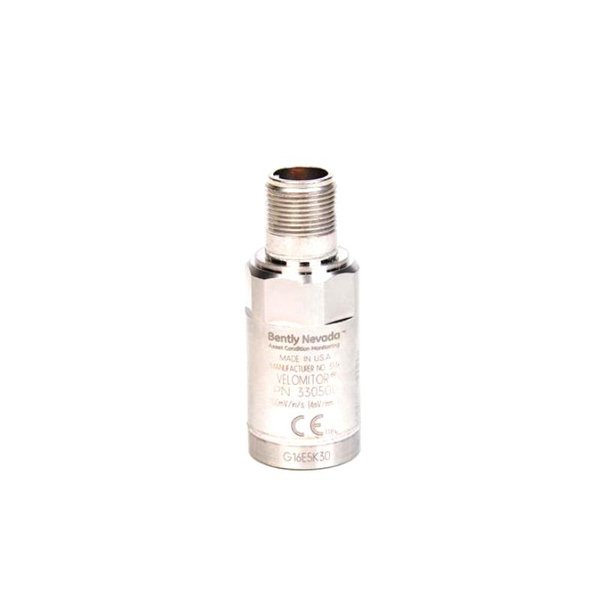

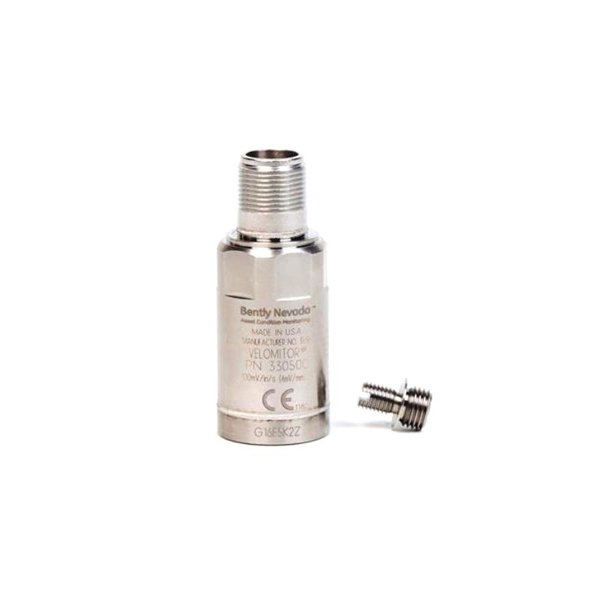

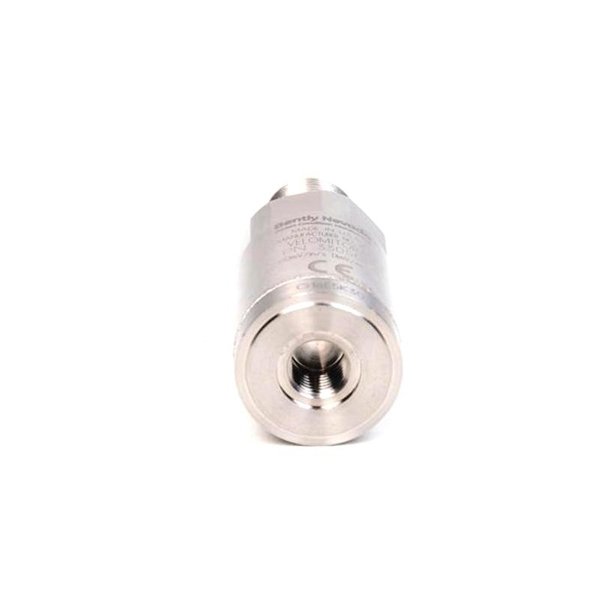

Bently Nevada 330500-03-00 Accelerometer
Manufacturer:Bently Nevada
Product Number:330500-03-00
Product Type:Accelerometer
Origin:USA
Diameter:23 mm
Weight:0.1 kg
Views:97
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330500-03-00 Velomitor Piezo-Velocity Sensor is a rugged, solid-state vibration sensor designed for monitoring absolute (relative to free space) bearing housing, casing, or structural vibrations. Utilizing integrated piezoelectric technology, it provides accurate velocity measurements, making it ideal for machinery condition monitoring and predictive maintenance applications.
Product Specifications
| Parameter | Details |
| Model Number | 330500-03-00 |
| Sensor Type | Piezoelectric Velocity Sensor |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Range | 4.5 Hz to 5 kHz ±3.0 dB or 6.0 Hz to 2.5 kHz ±0.9 dB |
| Output Signal | Voltage (proportional to velocity) |
| Power Supply | Self-powered (two-wire system) |
| Mounting Thread | 1/4 – 28 UNF |
| Connector Type | 2-pin MIL-C-5015, hermetically sealed |
| Housing Material | 316L Stainless Steel |
| Operating Temperature | -55°C to +121°C (-67°F to +250°F) |
| Diameter | 23 mm |
| Weight | 0.1 kg |
| Approvals | CSA, ATEX, IECEx |
Product Applications
The 330500-03-00 sensor is ideal for monitoring:
-
Rotating machinery with rolling-element bearings
-
Bearing housing and casing vibrations
-
Structural health monitoring
-
Predictive maintenance programs
Product Advantages
Solid-State Design: Eliminates mechanical degradation and wear.
Wide Frequency Range: Captures a broad spectrum of vibration data.
High Sensitivity: Provides accurate velocity measurements.
Robust Construction: 316L stainless steel housing ensures durability in harsh environments.
Ease of Installation: Standard mounting threads and connectors simplify setup.
Frequently Asked Questions (FAQ)
What is the primary function of the 330500-03-00 sensor?
-
It measures absolute vibration velocity of machinery components, aiding in condition monitoring.
-
Can this sensor be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -55°C to +121°C.
-
Is the sensor suitable for outdoor installations?
-
Yes, its robust stainless steel housing and sealed connector make it suitable for harsh environments.
-
What type of output does the sensor provide?
-
It provides a voltage output proportional to the measured vibration velocity.
-
Does the sensor require external power?
-
No, it is self-powered using a two-wire system.
-
What are the mounting options for this sensor?
-
It features a 1/4 – 28 UNF mounting thread for secure attachment.
-
Is the sensor compatible with standard monitoring systems?
-
Yes, it integrates seamlessly with most vibration monitoring equipment.
-
What certifications does the sensor have?
-
It holds CSA, ATEX, and IECEx approvals.
-
Can the sensor be used for both vertical and horizontal installations?
-
Yes, it can be mounted in any orientation without affecting performance.
-
What is the expected lifespan of the sensor?
-
With no moving parts, it offers a long operational life with minimal maintenance.
-
