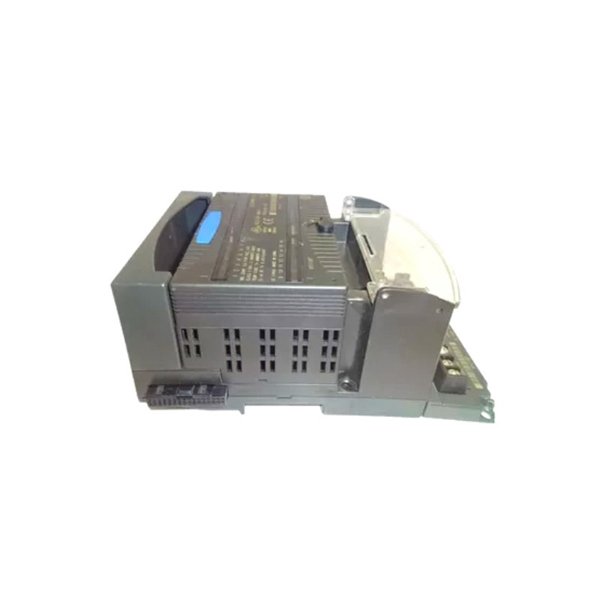

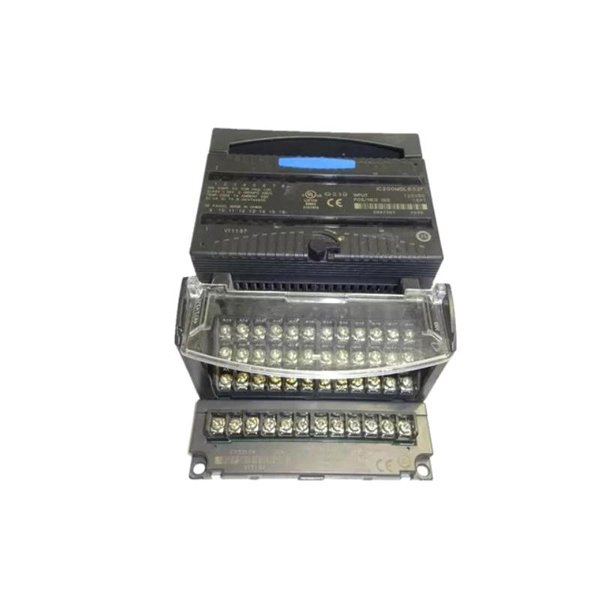

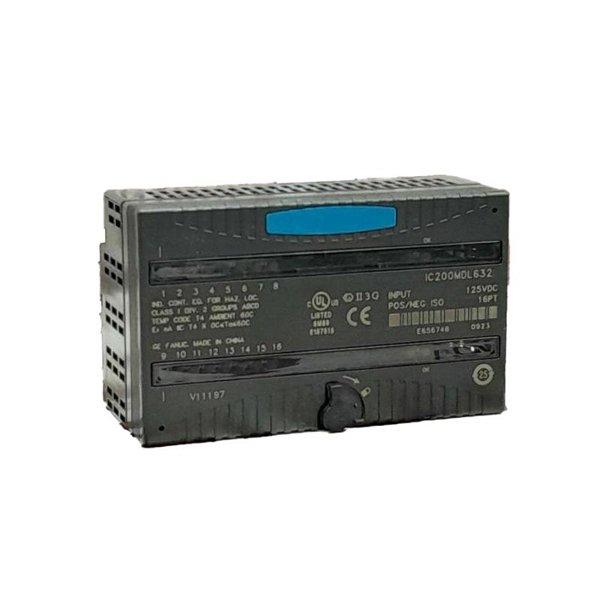

General Electric IC200MDL632D VersaMax Discrete Input Module
Manufacturer:GE
Product Number:IC200MDL632D
Product Type:VersaMax Discrete Input Module
Origin:USA
Dimensions:66.8 × 163.5 × 70 mm
Weight:0.136 kg
Views:56
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC200MDL632D is a robust and reliable Discrete Input Module from the VersaMax series by General Electric (GE). Designed specifically for 120V AC input applications, it provides 16 input points organized in two isolated groups of eight. Each input can independently detect the presence of a discrete signal and report its status back to the PLC.
Part of the highly modular and space-efficient VersaMax I/O system, this module excels in factory automation and industrial environments where AC signal acquisition is required. It supports positive logic, and each point is equipped with LED indicators for real-time status monitoring. The IC200MDL632D ensures easy installation, durable performance, and seamless integration into a GE automation system.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Automation (General Electric) |
| Product Series | VersaMax |
| Model Number | IC200MDL632D |
| Module Type | Discrete Input Module |
| Input Type | AC (120V, Sourcing) |
| Number of Input Points | 16 (2 isolated groups of 8) |
| Input Voltage Range | 74 to 132V AC, 50/60Hz |
| Nominal Voltage | 120V AC |
| Input Threshold | ON ≥ 74V AC, OFF ≤ 20V AC |
| Input Delay | OFF to ON: 45 ms typical, ON to OFF: 45 ms typical |
| Current Draw per Point | 6 mA at 120V AC |
| Input Impedance | 20 kΩ typical |
| Isolation | 1500V AC (field to logic and between groups) |
| LED Indicators | 16 (1 per input channel) |
| Backplane Current | 60 mA |
| Wiring Type | Removable terminal block |
| Wiring Gauge | 18–22 AWG |
| Mounting | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95%, non-condensing |
| Dimensions (W x H x D) | 66.8 × 163.5 × 70 mm |
| Weight | 0.136 kg |
| Compliance | UL, CE, CSA, RoHS |
Product Applications
The IC200MDL632D is widely used across multiple industries due to its flexibility and solid build quality. It is ideal for applications involving AC-powered field devices:
Industrial Automation – Collecting inputs from AC limit switches, sensors, and push-buttons.
Building Management Systems (BMS) – Monitoring door contacts, ventilation switches, and occupancy controls.
Material Handling – Detecting positions of mechanical arms, conveyors, and packaging machines.
Water and Wastewater – Monitoring float switches, AC solenoids, and pump status signals.
Oil and Gas Facilities – Interface with explosion-proof or intrinsically safe AC devices.
Energy and Utilities – Inputs from grid interface components, breaker positions, and manual reset switches.
Product Advantages
AC Signal Compatibility – Designed specifically for 120V AC inputs, ideal for legacy systems and industrial controls.
Isolated Input Groups – Two isolated 8-point groups reduce the risk of signal interference and ground loops.
Durable Construction – Built for industrial-grade environments with wide operating temperature and humidity tolerance.
Diagnostic LEDs – Real-time visual monitoring of each input channel simplifies maintenance and commissioning.
Easy Installation – Removable terminal blocks and DIN rail mounting support fast, clean installation.
Seamless Integration – Fully compatible with the VersaMax I/O platform and GE PLC systems.
Efficient Performance – Optimized input response time and consistent signal recognition.
Compact Size – Fits into tight control panels with high-density input requirements.
High Electrical Isolation – Enhanced safety with 1500V AC isolation between logic and field wiring.
Global Certification – Approved for use in international applications under UL, CE, and CSA standards.
Frequently Asked Questions (FAQ)
What type of input signals does the IC200MDL632D accept?
It accepts standard 120V AC signals, typically from switches, relays, or sensors.
Is the module compatible with 24V DC signals?
No, this module is designed for 120V AC only. Use a DC input module for 24V DC applications.
Can this module be used in hazardous environments?
It can be used in industrial environments, but for hazardous areas, ensure proper enclosure and certifications.
Are the input points individually isolated?
No, they are grouped into two sets of eight, each group being isolated from the other and from logic.
Is external power required?
The input devices must supply the 120V AC signal. The module itself draws power from the backplane.
How do I know if an input is active?
A dedicated LED for each input will illuminate when the point is ON.
Can I mix different voltage signals on this module?
No, all inputs must conform to the 120V AC range.
What’s the input delay for signal processing?
45 ms for both ON and OFF transitions.
How many modules can be installed on one VersaMax rack?
This depends on power and I/O limits, but up to 8–10 is typical in a standard configuration.
What happens if an input exceeds the voltage rating?
It may damage the input circuitry. Always ensure inputs are within the 74–132V AC range.
