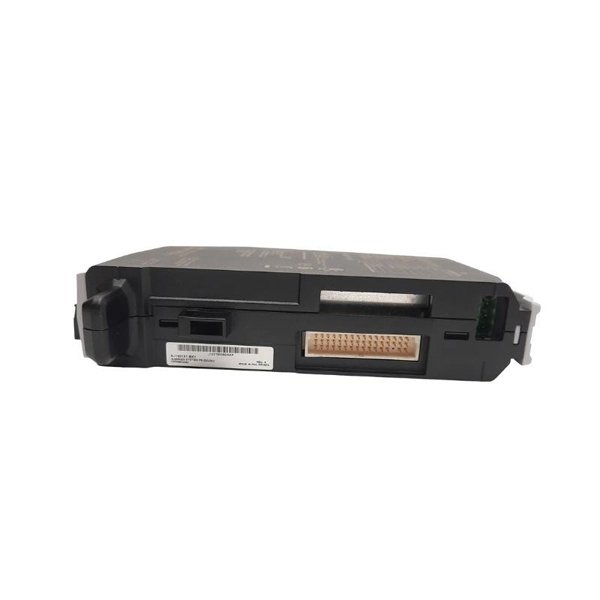

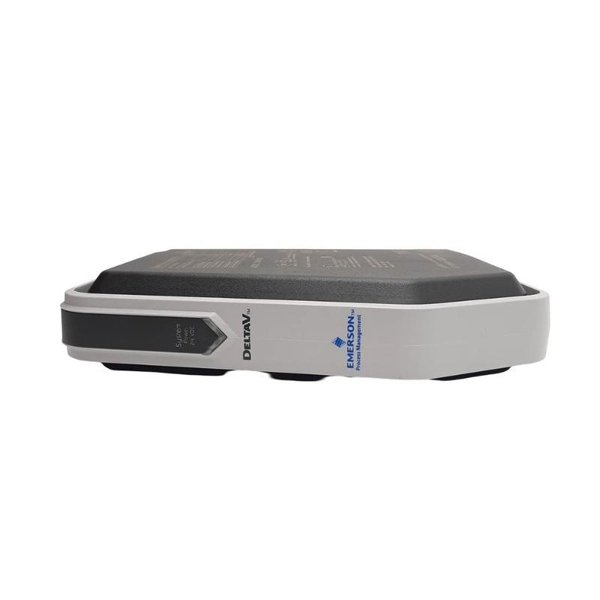

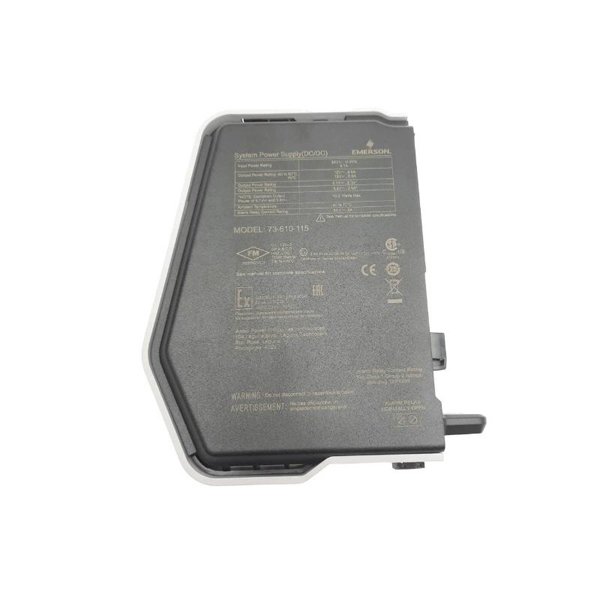

Emerson KJ1501X1-BK1 Power Module

The Emerson KJ1501X1-BK1 Power Module is a high-performance, reliable power supply module designed for use in the Emerson DeltaV™ distributed control system (DCS). It delivers stable and efficient power to system components such as I/O cards, controllers, and communication modules within the DeltaV architecture. Known for its high reliability, compact design, and robust construction, the KJ1501X1-BK1 ensures minimal system downtime and is suitable for mission-critical industrial automation applications.

This module is hot-swappable and includes LED indicators for status diagnostics, allowing for convenient maintenance without disrupting system operation.

Key Features

• Designed specifically for Emerson DeltaV™ systems

• Hot-swappable for uninterrupted system operation

• LED status indicators for power and health diagnostics

• Provides stable DC output power to DeltaV backplane components

• Built with over-voltage and short-circuit protection

• Compact and rugged design suitable for industrial environments

• Supports redundant power configurations for enhanced system availability

• Improved system reliability with redundancy and diagnostic features

• Seamless integration into DeltaV systems for efficient power distribution

• Quick replacement with hot-swappable capability reduces downtime

• Energy-efficient design reduces overall system power consumption

• Industrial-grade durability ensures long-term performance in harsh environments

• Compact form factor allows for space-efficient installation

Frequently Asked Questions (FAQ)

1. Is the KJ1501X1-BK1 compatible with all DeltaV systems?

   Yes, it is fully compatible with standard DeltaV system chassis and power distribution configurations.

2. Can this module be installed while the system is running?

   Yes, it is hot-swappable, allowing for replacement without shutting down the system.

3. What type of input voltage does the KJ1501X1-BK1 accept?

   It operates with a nominal input voltage of 24 VDC (range 19–30 VDC).

4. Does the module support redundancy?

   Yes, it can be used in redundant configurations to ensure continuous operation.

5. Are there built-in protection features?

   Yes, it includes over-voltage, over-current, and short-circuit protection.

6. How do I know the status of the module?

   LED indicators on the front panel display power and fault statuses.

7. What is the typical operating temperature range?

   The module operates reliably between -40°C and +70°C.

8. Can the module be mounted on a DIN rail?

   Yes, it supports both DIN rail and chassis mounting.

9. Is the KJ1501X1-BK1 RoHS compliant?

   Yes, it is compliant with RoHS and other international standards.

10. How much power does the module supply?

    It can deliver up to 100 W, with a maximum output current of 4.2 A.
