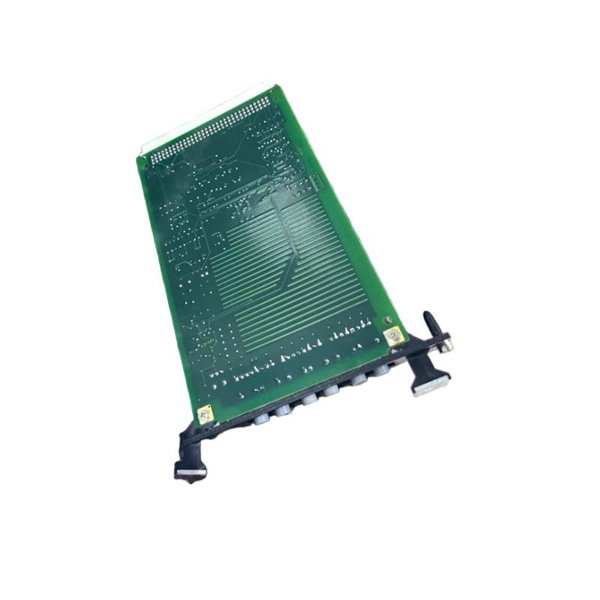

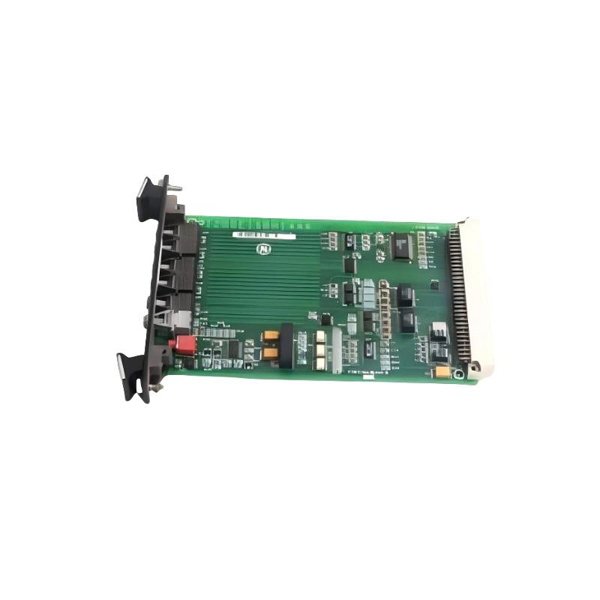

General Electric IS200EISBH1A Excitation Machine ISBus Board

The GE IS200EISBH1A is an essential component in excitation systems, specifically designed for ISBus communication. This excitation machine ISBus board is a highly specialized device that facilitates communication between various components in electrical generators and power control systems. The IS200EISBH1A provides efficient signal processing, ensuring reliable control of the excitation system to optimize the performance of generators.

Built with precision engineering, this board plays a pivotal role in maintaining a stable electrical output by managing excitation currents. It is widely used in power plants, energy generation systems, and industrial automation for systems requiring controlled excitation and accurate signal processing.

With dimensions of 82.6 × 41.9 mm and a weight of 0.5 kg, the IS200EISBH1A is compact yet powerful, designed to integrate seamlessly into complex control systems. It operates in harsh industrial environments and ensures reliable, continuous performance.

Technical Parameters

Product Applications

The GE IS200EISBH1A Excitation Machine ISBus Board is designed for use in various systems that require precise control of excitation signals. Here are some common applications:

1. Excitation Control Systems: The board amplifies and manages excitation signals, maintaining generator voltage stability and ensuring optimal power output in electrical generation systems.

2. Power Generation Plants: In power plants, the IS200EISBH1A is used to control and monitor the excitation of generators, ensuring the smooth operation of turbines and generators.

3. Industrial Automation: This board facilitates communication between excitation control devices in industrial automation systems, ensuring consistent system operation.

4. Energy Monitoring Systems: The board supports energy monitoring systems by maintaining the proper excitation of equipment, ensuring energy efficiency and consistent performance.

5. Hydropower Plants: In hydropower systems, the board optimizes the excitation of generators, helping maintain voltage stability for efficient energy production.

6. Marine Power Systems: The IS200EISBH1A is used in marine generators, where it helps manage excitation signals to ensure reliable power generation on vessels.

Advantages

1. Compact and Lightweight: With its 82.6 × 41.9 mm size and 0.5 kg weight, the IS200EISBH1A board is compact and easy to integrate into existing systems without taking up significant space.

2. High Reliability and Durability: Designed for harsh industrial environments, the board operates within a wide temperature range of -40°C to +70°C, ensuring consistent performance even in challenging conditions.

3. Efficient Signal Processing: The board ensures precise signal amplification, allowing for optimal control of excitation currents and stable power generation.

4. Seamless Integration: The IS200EISBH1A integrates easily with other GE industrial control systems, making it an ideal choice for complex power control setups.

5. Energy Efficiency: The board plays a crucial role in energy management, improving the efficiency of power generation systems by ensuring the proper excitation levels.

6. Wide Application Range: It is suitable for a variety of applications, from power plants and industrial control systems to marine power systems.

7. CE, UL, and RoHS Certification: With CE, UL, and RoHS certifications, the board meets international standards for safety, quality, and environmental compliance.

8. Robust Design: Constructed with industrial-grade materials, the board is built to last, providing long-term reliability and minimizing the risk of failure.

9. Flexible Connectivity: The board uses ISBus connectors, providing secure and reliable communication between different components in an excitation system.

10. Cost-Effective Solution: Offering excellent performance at a competitive price, the IS200EISBH1A provides a cost-effective solution for excitation control systems.

Frequently Asked Questions (FAQ)

1. What is the operating temperature range of the GE IS200EISBH1A?

   • The board operates within a temperature range of -40°C to +70°C.

2. What is the size of the IS200EISBH1A?

   • The board has dimensions of 82.6 × 41.9 mm.

3. How much does the IS200EISBH1A board weigh?

   • The board weighs 0.5 kg.

4. What is the power supply requirement for the IS200EISBH1A?

   • The board operates on a 24 V DC power supply.

5. What type of signal does the IS200EISBH1A process?

   • The board processes pulse signals for precise excitation control.

6. How is the IS200EISBH1A board mounted?

   • The board is designed for rack-mounted installations.

7. What type of connectors does the IS200EISBH1A use?

   • The board uses ISBus connectors for secure signal communication.

8. Can the IS200EISBH1A be used in marine power systems?

   • Yes, the IS200EISBH1A is suitable for use in marine power systems, ensuring reliable excitation control in maritime applications.

9. What are the key benefits of using the IS200EISBH1A board?

   • The board provides reliable excitation control, ensuring stable power generation and improved energy efficiency.

10. Is the IS200EISBH1A compatible with other GE systems?

    • Yes, the IS200EISBH1A is designed to integrate seamlessly with other GE industrial control systems, making it an ideal choice for GE-powered systems.
