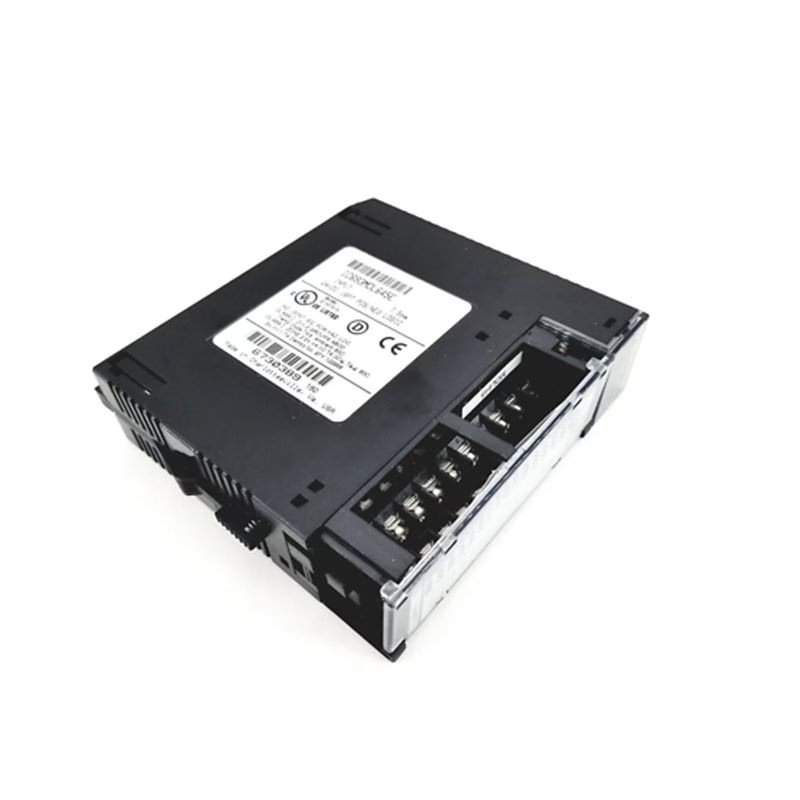

GE Fanuc IC693MDL645E Input Module

The GE Fanuc IC693MDL645E is a 24 VDC input module designed for use in GE Fanuc Series 90-30 programmable logic controller (PLC) systems. It provides 16 non-isolated input points for receiving signals from field devices. The module is versatile, supporting both positive and negative logic, which allows for flexible wiring and compatibility with various sensors and switches.

Key Features

• 16 Input Points: The module provides 16 non-isolated input points, enabling the PLC to receive signals from various field devices.
• Positive/Negative Logic: It supports both positive and negative logic, enhancing flexibility for wiring and sensor compatibility.
• Single Input Group: All 16 inputs share a common power input terminal, simplifying wiring.
• 24 VDC Operation: Designed to operate with a 24 VDC power supply, ensuring stable performance.

Technical Specifications

• Input Voltage Range: 0 to +30 VDC
• Input Current: 7 mA
• Isolation: Non-isolated
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5 to 95% non-condensing
• Response Time: 7 ms (on), 7 ms (off)
