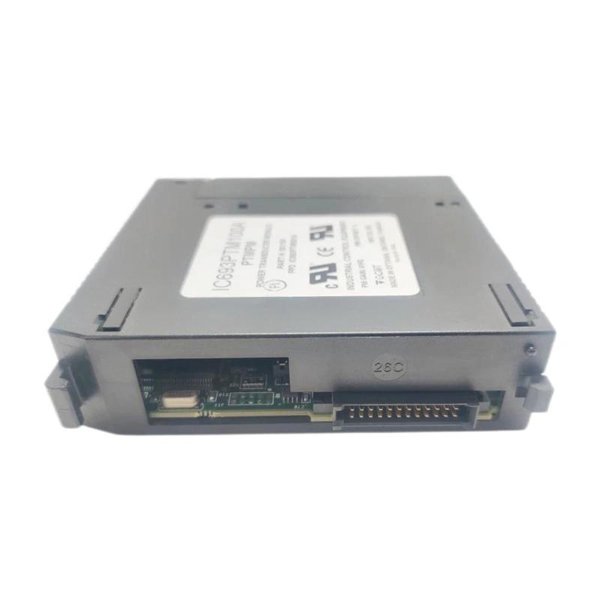

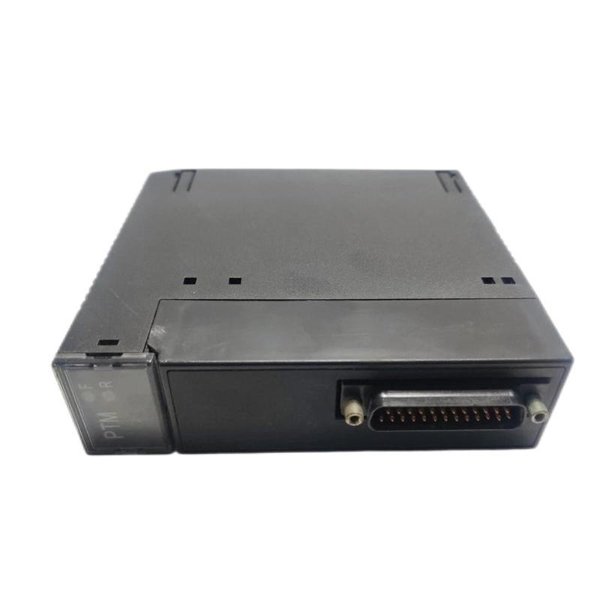

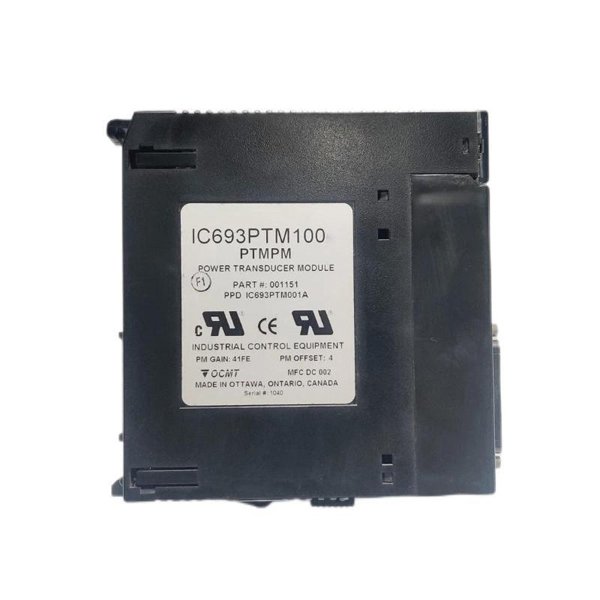

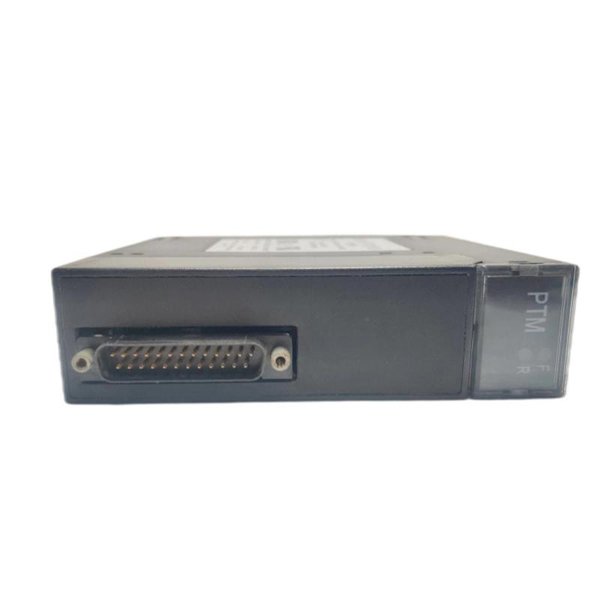

General Electric Fanuc IC693PTM100 Power Sensor Module
Manufacturer:GE Fanu
Product Number:IC693PTM100
Product Type:Power sensor module
Origin:USA
Dimensions:120 x 100 x 30 mm
Weight:0.25kg
Views:64
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE Fanuc IC693PTM100 is a Power Sensor Module designed for use with the Series 90-30 programmable logic controllers (PLCs). This module is primarily used to measure electrical power parameters, including voltage, current, and power for monitoring and controlling industrial automation processes. It enables precise real-time measurement and feedback of electrical power consumption, providing operators with critical information to optimize system performance, reduce energy costs, and maintain the reliability of electrical systems.
The IC693PTM100 is essential in applications where accurate energy monitoring is required, such as in motors, drives, pumps, and other electrical devices in industrial plants. The module is compatible with Series 90-30 PLCs, enabling seamless integration into existing control systems for continuous monitoring and control.
Key Features
Real-Time Power Monitoring: Measures voltage, current, and power for electrical devices and systems
Wide Voltage Range: Compatible with a broad range of input voltages for flexibility in various applications
Compact Design: Saves space in control cabinets while offering powerful monitoring capabilities
High Accuracy: Provides precise measurements for energy optimization and system diagnostics
Direct Interface to PLC: Easily integrates with Series 90-30 PLCs via dedicated communication ports
Field Calibration: Allows for adjustments to ensure measurement accuracy over time
Diagnostics Support: Offers data collection and diagnostic feedback for system troubleshooting
Energy Efficiency: Provides essential data for energy-saving measures and monitoring overall system performance
Operating Temperature Range: Designed to operate in a wide temperature range to accommodate industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC693PTM100 |
| Product Type | Power Sensor Module |
| Input Voltage Range | 0–400 VAC |
| Current Measurement | 0–5 A (AC) |
| Power Measurement | Active power (kW), reactive power (kVAR) |
| Accuracy | ±1% of reading |
| Interface | Direct connection to Series 90-30 PLCs |
| Mounting | DIN rail mountable (35 mm) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Power Supply | 24 VDC nominal |
| Dimensions | 120 x 100 x 30 mm |
| Weight | 0.25 kg |
| Compliance | CE, UL, RoHS, CSA |
Industry Applications
Energy Management: Monitors power consumption across industrial equipment to optimize energy efficiency
Manufacturing: Provides real-time feedback for machinery and assembly lines requiring precise energy control
HVAC Systems: Measures and monitors the power usage of heating, ventilation, and air conditioning systems
Motors & Drives: Measures current and voltage to optimize the performance of industrial motors and drives
Renewable Energy: Used for monitoring electrical power systems in solar or wind energy applications
Pumps & Compressors: Enables accurate energy monitoring of pumps and compressors in critical processes
Product Advantages
Accurate Power Measurements: Enables precise monitoring of both active and reactive power to improve system efficiency
Compact & Efficient: Saves space in control cabinets, making it ideal for systems with limited panel space
Enhanced Diagnostics: Provides valuable data for troubleshooting power-related issues and ensuring uptime
Cost-Efficient Energy Management: Helps reduce energy costs by offering insights into energy consumption and system performance
Rugged Industrial Design: Built to withstand harsh conditions commonly found in industrial settings
Simple Integration: Easy integration with Series 90-30 PLCs, minimizing setup time and maximizing system performance
Reliability in Harsh Environments: Operates in a wide range of environmental conditions, ensuring reliable operation in varying temperatures and humidity levels
Frequently Asked Questions (FAQ)
Q: What types of power does the IC693PTM100 measure?
A: It measures active power (kW) and reactive power (kVAR) for efficient system monitoring.
Q: What is the input voltage range for the IC693PTM100?
A: The module supports an input voltage range of 0 to 400 VAC.
Q: What is the maximum current measurement supported by the module?
A: The IC693PTM100 can measure up to 5 A AC.
Q: Can the module be integrated with other PLCs besides the Series 90-30?
A: The module is designed specifically for Series 90-30 PLCs, and compatibility with other PLCs may require additional interface equipment.
Q: How does the module handle field calibration?
A: The IC693PTM100 supports field calibration, allowing adjustments for more accurate readings over time.
Q: Does the IC693PTM100 offer real-time diagnostics?
A: Yes, it offers real-time diagnostics and feedback for quick troubleshooting and maintenance.
Q: What is the power supply requirement for this module?
A: The IC693PTM100 operates on a 24 VDC nominal power supply.
Q: What are the operating conditions of the module?
A: It operates in a temperature range from -20°C to +60°C and can handle 5% to 95% RH.
Q: Is the module suitable for energy-saving applications?
A: Yes, it is ideal for energy management systems where accurate power measurement is required to optimize energy use.
Q: What are the installation requirements for the IC693PTM100?
A: It can be easily installed on a DIN rail with standard mounting dimensions (35 mm).
