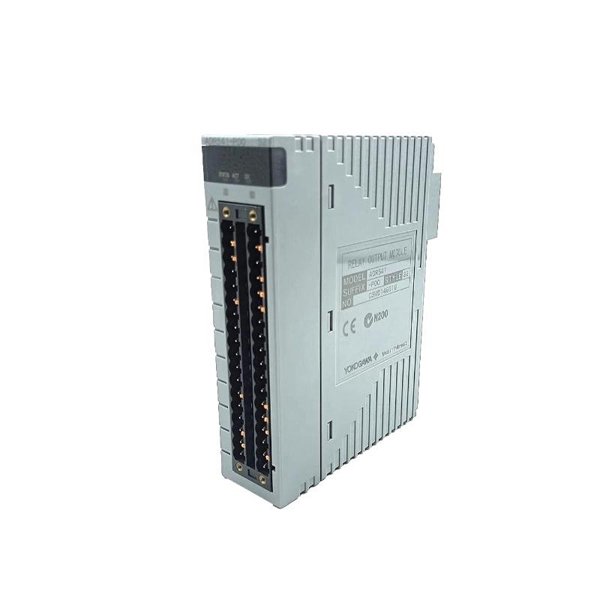

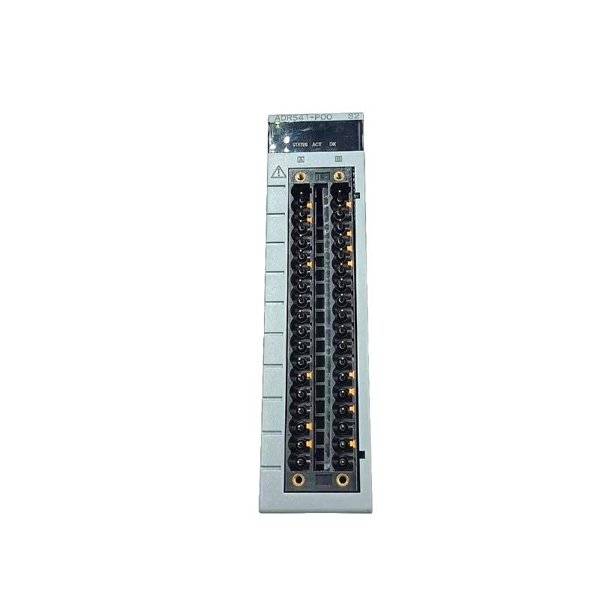

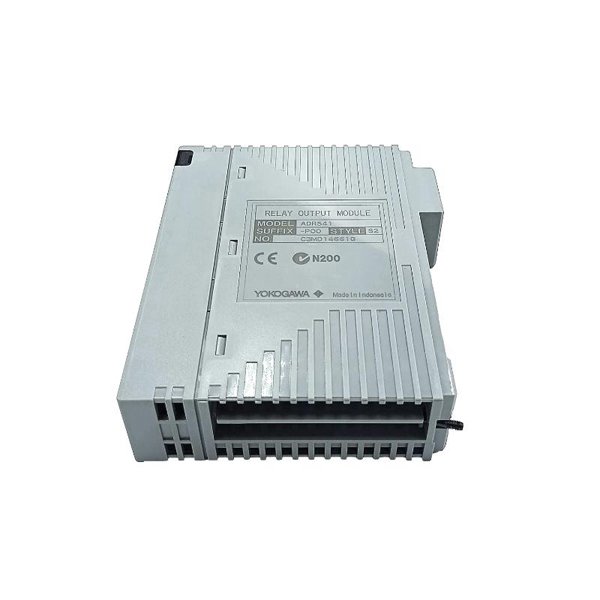

Yokogawa ADR541-S00 Relay Output Module

The Yokogawa ADR541-S00 is a high-performance Relay Output Module designed for use within the Yokogawa CENTUM VP and ProSafe-RS control systems. Known for its reliability and precision, the ADR541-S00 is tailored for discrete output applications, allowing control systems to activate or deactivate devices such as solenoids, motors, lamps, and alarms. Each channel in the module operates through electromechanical relays, ensuring safe isolation and robust switching capabilities, even under demanding industrial conditions.

This module is built with Yokogawa’s renowned quality standards, making it suitable for applications requiring strict safety and performance compliance. With ease of integration and long operational life, the ADR541-S00 plays a critical role in automation infrastructure across power plants, petrochemical facilities, and manufacturing sectors.

Product Specifications

Product Applications

The ADR541-S00 is widely used across industries where reliable control of external devices is critical. Its applications include:

• Process Automation in oil & gas, chemical, and petrochemical industries.

• Power Generation facilities requiring discrete signal handling and alarm triggering.

• Manufacturing Systems for activating actuators, solenoids, and motor contactors.

• Emergency Shutdown Systems (ESD) when deployed in ProSafe-RS safety systems.

• Building Automation for large-scale HVAC and fire suppression systems.

Its modular design and isolation features make it ideal for high-integrity system environments where equipment control and signal separation are essential.

Product Advantages

• High Reliability: Industrial-grade relay outputs ensure consistent performance under stress.

• Safety-Certified: Compatible with Yokogawa’s SIL-rated safety systems (when used accordingly).

• Isolation Protection: Prevents crosstalk and electrical faults between channels.

• Flexible Configuration: Supports fail-safe and normal operation modes.

• Real-Time Monitoring: LED indicators provide clear visual status of output channels.

• Longevity: Long relay life reduces maintenance needs and operational downtime.

• Seamless Integration: Fully compatible with CENTUM VP and ProSafe-RS platforms.

• Compact Footprint: Designed for easy installation in dense control cabinets.

Frequently Asked Questions (FAQ)

1. What is the main function of the ADR541-S00?

   The ADR541-S00 provides relay output channels to control field devices such as lamps, relays, or actuators in process automation systems.

2. Can the ADR541-S00 be used in safety systems?

   Yes, when integrated with Yokogawa’s ProSafe-RS system, it can be used in SIL-rated safety applications.

3. What is the difference between ADR541-S00 and a transistor output module?

   The ADR541-S00 uses mechanical relays, suitable for switching higher voltages or AC loads, while transistor modules are typically limited to DC and fast-switching tasks.

4. How many channels are available in one ADR541-S00 module?

   The module offers 8 isolated relay output channels.

5. Is the module hot-swappable?

   No, for safety and system stability, the power should be turned off before replacing the module.

6. What is the maximum switching capacity per channel?

   Each relay can handle up to 250 VAC or 24 VDC at 2 A (resistive load).

7. Does the ADR541-S00 support channel diagnostics?

   While it has status indicators, advanced diagnostics are managed through the system’s engineering software.

8. What type of loads can be controlled by this module?

   It supports resistive and some inductive loads like solenoid valves, indicator lamps, and small motors.

9. What is the expected lifetime of the relays?

   Mechanically, the relays are rated for over 10 million operations; electrically, around 100,000 operations under rated load.

10. Can it be mounted on any rack?

    It must be installed in Yokogawa’s specified system rack or mounting base to ensure proper operation.
