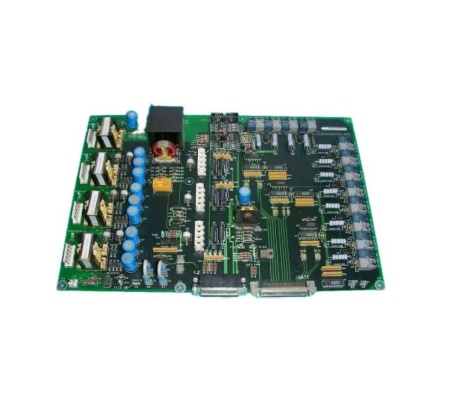

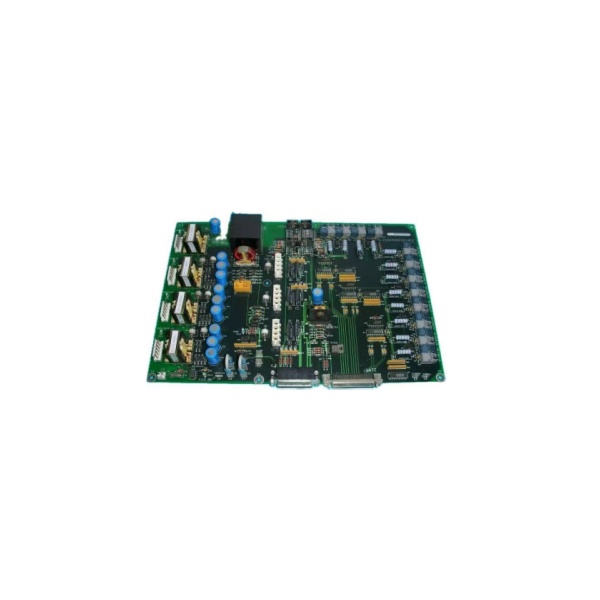

General Electric IS200GGXIG1A Speedtronic Turbine Control PCB Board

The IS200GGXIG1A can be used with the Innovation Series Board Rack in the Mark VI System and is also a component of the Mark VI System, part of the Speedtronic Gas/Steam Turbine Management Series.

The GGXI board includes nine LED indicators, thirteen plug connectors, nine pin connectors, twelve fiber optic connector pairs, and fourteen user test points as part of the board. There are no fuses or adjustable hardware devices on the GGXI board. Refer to Figure 3, the GGXI board layout diagram, for the location of these items.

The IS200GGXIG1A board is part of the Speedtronic turbine control system, which is used to control and manage the operation of turbines in power plants. It monitors various parameters such as speed, temperature, pressure and vibration to control the performance of the turbine.

Frequently asked questions about the product are as follows:

-What are the main functions of the IS200GGXIG1A board?

The IS200GGXIG1A is responsible for controlling turbine operation, including speed regulation, load control, and system synchronization.

-How does the IS200GGXIG1A board ensure safe turbine operation?

It monitors various parameters such as speed, temperature, and pressure in real time. If the turbine operates outside of safe limits, it triggers protective measures to avoid damage or unsafe conditions.

-Is the IS200GGXIG1A compatible with other components of the Speedtronic system?

The IS200GGXIG1A integrates seamlessly with other Speedtronic control components to achieve coordinated control of the turbine and ensure optimal performance and safety.
