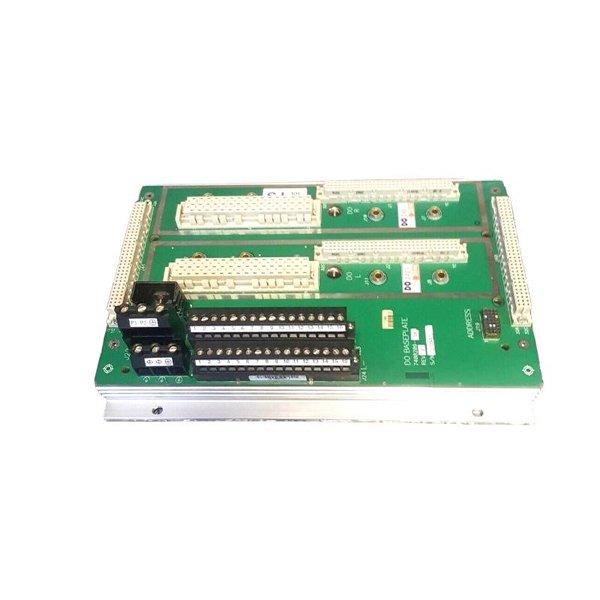

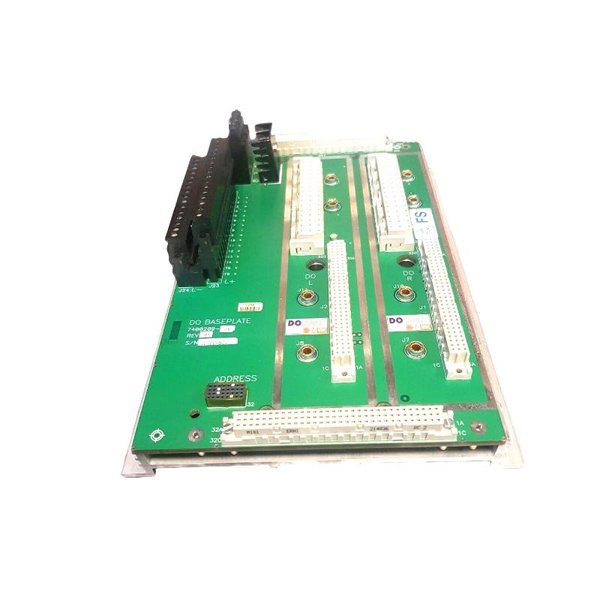

Triconex DO2401 7400209-030 Digital Output Baseplate

Name: Triconex DO2401 7400209-030 Digital Output Baseplate
Brand: Triconex
Availability: InStock

Manufacturer:Triconex

Product Number:DO2401 7400209-030

Product Type:Digital Output Baseplate

Origin:USA

Dimensions:166.7 x 247.9 x 62.4 mm

Weight:1 kg

Views:26

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Triconex DO2401 7400209-030 Digital Output Baseplate is a high-reliability output interface module designed for use in Triconex safety and control systems. It serves as the physical mounting and connection platform for digital output modules, providing robust connectivity and secure signal transmission to field devices. This baseplate is engineered for critical control applications where stability, fault tolerance, and long service life are required.

Technical Specifications

Parameter	Value
Model Number	DO2401 7400209-030
Product Type	Digital Output Baseplate
Function	Mounting and signal interface for digital output modules
Dimensions	166.7 × 247.9 × 62.4 mm
Weight	1 kg
Mounting Type	Rack/Chassis mount
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5–95% non-condensing
Compatibility	Triconex Digital Output Modules
Certification	Industrial and safety approvals

Applications

Safety Instrumented Systems (SIS)
Emergency Shutdown (ESD) systems
Process control and automation in oil, gas, and petrochemical industries
Power plant control and protection
Critical infrastructure monitoring and control
Industrial machinery control

Advantages

High Reliability – Built for continuous operation in demanding industrial environments.
Secure Signal Handling – Ensures accurate and stable digital output transmission.
Rugged Design – Resistant to vibration, electrical noise, and harsh conditions.
Easy Integration – Fully compatible with Triconex system architectures.
Service-Friendly – Facilitates quick replacement and maintenance.
Long Operational Life – Designed for extended use without degradation in performance.

FAQ

Q1: What is the primary function of the DO2401 baseplate?

A1: It provides the physical and electrical interface for Triconex digital output modules.

Q2: Can the DO2401 be used with analog output modules?

A2: No, it is specifically designed for digital output modules.

Q3: What is the operating temperature range?

A3: The range is 0°C to 60°C.

Q4: Is the baseplate hot-swappable?

A4: No, it should be replaced with the system powered down for safety.

Q5: Does it require specific mounting hardware?

A5: Yes, it is intended for rack or chassis mounting within a Triconex system.

Q6: Can it operate in high-vibration environments?

A6: Yes, it is engineered to withstand industrial vibration and noise.

Q7: What industries typically use this baseplate?

A7: Oil & gas, petrochemical, power generation, and other critical process industries.

Q8: Is it compatible with all Triconex controllers?

A8: It is compatible with controllers that support the DO2401 digital output interface.

Q9: How much does the DO2401 weigh?

A9: It weighs 1 kg.

Q10: Does it require regular maintenance?

A10: Minimal maintenance is needed, typically limited to periodic inspection.
