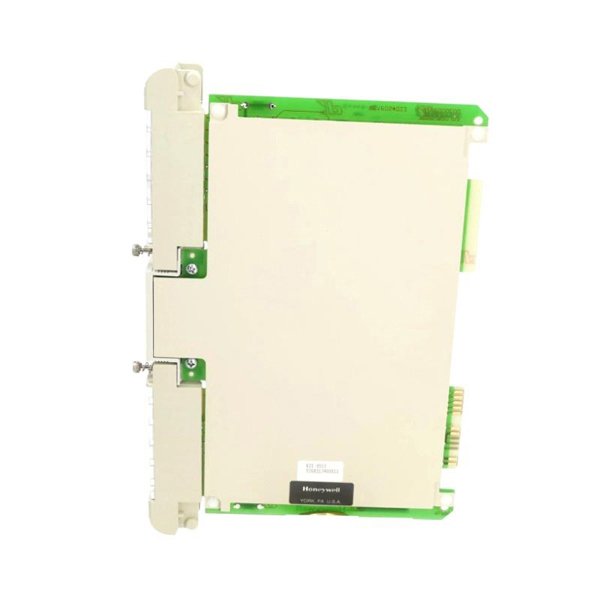

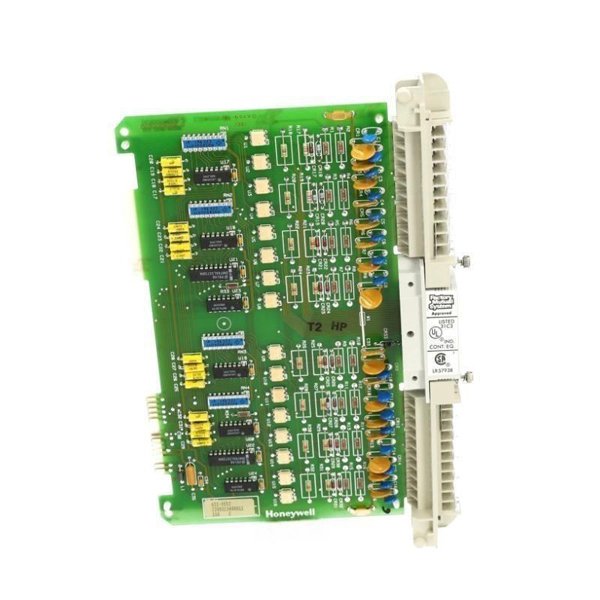

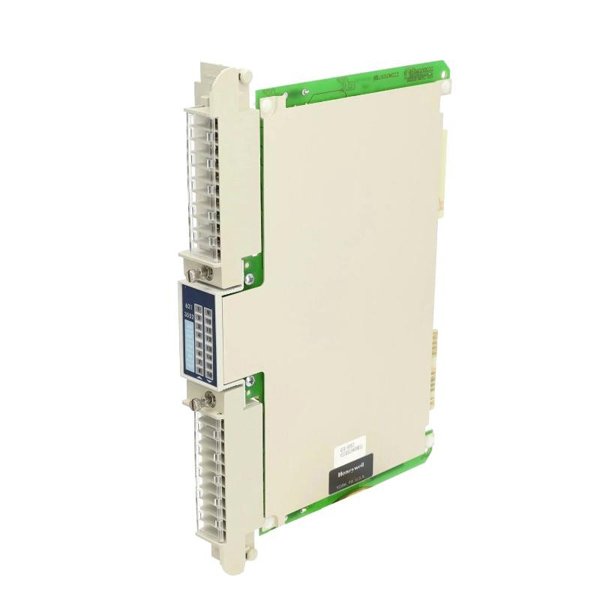

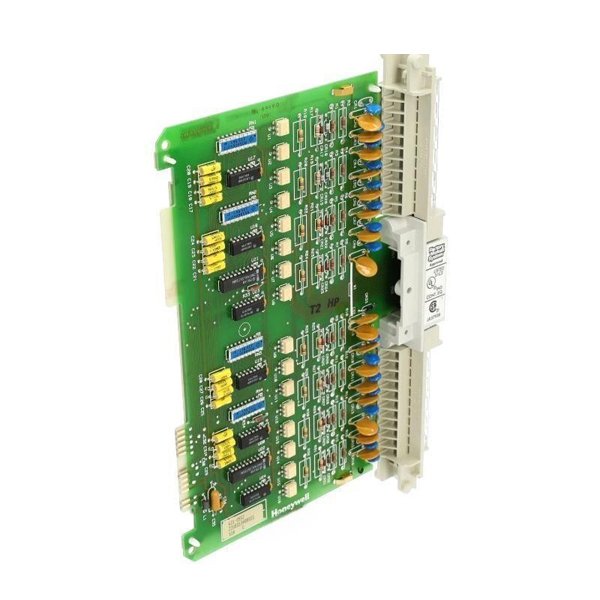

Honeywell 621-3552RC Input Module

The Honeywell 621-3552RC Input Module is a highly reliable analog input device designed for use within Honeywell’s TDC 3000 Distributed Control System (DCS). This module specializes in acquiring precise analog signals from various field sensors and instrumentation, converting them into digital data for real-time processing and monitoring.

Built to withstand industrial environments, the 621-3552RC supports a broad range of analog input types with high accuracy and electrical isolation to ensure signal integrity. It features advanced diagnostic capabilities to quickly identify wiring issues or sensor faults, helping to maintain continuous operation and reduce downtime.

Its modular design fits neatly into standard Honeywell racks, enabling easy installation, maintenance, and system expansion. This module plays a critical role in process control systems across industries such as oil and gas, chemical processing, power generation, and water treatment.

Technical Specifications

Applications

The Honeywell 621-3552RC Input Module is widely used across industrial sectors requiring accurate analog measurements:

• Oil & Gas Industry: Monitors pressure, temperature, and flow measurements to support safe and efficient extraction and processing.

• Power Generation: Tracks boiler and turbine parameters for optimal plant performance.

• Chemical Processing: Provides accurate input for control of reactors, distillation columns, and batch operations.

• Water and Wastewater Treatment: Controls pumping stations, chemical dosing, and filtration based on analog sensor data.

• Pharmaceutical Manufacturing: Maintains precise environmental and process conditions to meet quality standards.

• Pulp and Paper Mills: Monitors moisture, temperature, and other critical variables to improve product quality.

Product Advantages

• High Precision: Accurate analog signal conversion supports tight process control.

• Channel Isolation: Galvanic isolation protects against noise and electrical interference.

• Flexible Input Types: Accepts a range of current and voltage signals, configurable through software.

• Robust Diagnostics: Quickly detects wiring and sensor faults, minimizing troubleshooting time.

• Compact and Modular: Designed for easy integration and maintenance within Honeywell TDC 3000 racks.

• Industrial Grade: Certified to meet strict industry standards for reliability and safety.

Frequently Asked Questions (FAQ)

1. What analog signals can the 621-3552RC module accept?

It supports 4-20 mA, 0-20 mA current signals, and 0-10 V voltage signals configurable via software.

2. How many channels are included on the module?

There are 8 analog input channels available.

3. Is there isolation between input channels?

Yes, each channel is galvanically isolated to prevent electrical interference and protect the system.

4. Can the module be used with newer Honeywell systems?

It is primarily designed for the TDC 3000 platform; compatibility with other systems may require additional equipment.

5. What diagnostics features does it provide?

The module detects wiring faults, sensor failures, and out-of-range signals, reporting these issues to the control system.

6. What is the signal conversion speed?

The module converts signals within 10 milliseconds per channel.

7. How is the module physically installed?

It is mounted in a Honeywell rack system within an industrial control cabinet.

8. What power supply voltage is required?

A regulated 24 VDC power source is necessary for operation.

9. What environmental conditions can the module tolerate?

The module operates reliably between 0°C and 60°C with up to 95% non-condensing humidity.

10. How do I troubleshoot if a channel is not responding?

Use the system diagnostics to identify the faulty channel, then check wiring and sensor connections before replacing the module if needed.
