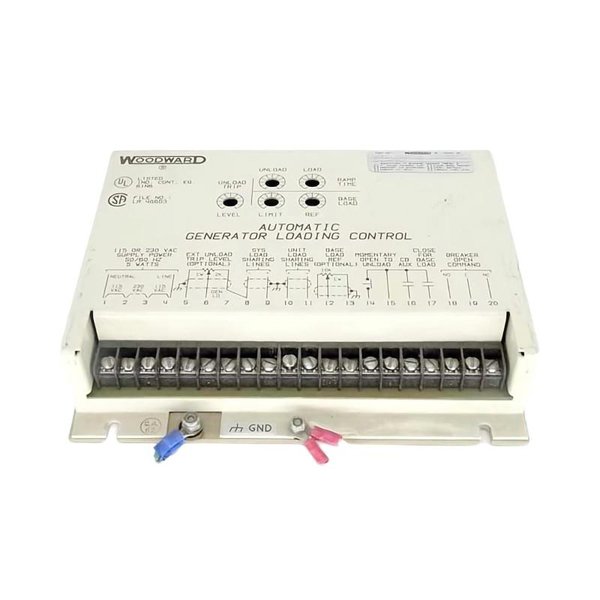

Woodward 9905-096 Automatic Generator Loading Control Module

The Woodward 9905-096 Automatic Generator Loading Control Module is a precision-engineered device designed to manage the automatic loading and unloading of generators in power generation systems. This control module plays a critical role in systems where synchronized operation, load stability, and fuel efficiency are paramount. It ensures that generators are brought online or taken offline smoothly, without disrupting power quality or causing overload conditions.

Part of Woodward’s well-established 9905 series, the 9905-096 module is especially suitable for applications requiring continuous operation, quick response to load changes, and minimal human intervention. The unit automates decisions about when to connect or disconnect generators based on load demand, frequency regulation, and system conditions, making it essential in multi-generator environments.

Housed in a robust enclosure, the 9905-096 is built to withstand harsh operating conditions found in industrial, marine, and utility settings. It seamlessly interfaces with governors, synchronizers, and other control equipment, allowing full integration into modern or legacy generator control systems.

Technical Specifications

Applications

• Power Plants with Multiple Generators: Ensures efficient load distribution and generator operation during variable demand.

• Marine Power Management: Automatically balances onboard power generation to prevent overloading or inefficient fuel use.

• Industrial Facilities: Controls generator loading based on factory process demands or equipment startup conditions.

• Microgrid and Off-Grid Installations: Maintains power balance in systems without utility backup.

• Data Centers: Manages backup generators for uninterrupted power and smooth transitions during utility failure.

• Emergency Standby Systems: Prevents unnecessary generator wear by only loading what is needed when required.

Advantages

• Automated Load Management: Reduces the need for manual intervention, increasing operational efficiency and reducing errors.

• System Integration Ready: Interfaces easily with Woodward and third-party synchronizers, governors, and protection systems.

• Fast Response Time: Quickly responds to changes in load, enabling stable voltage and frequency control.

• High Load Accuracy: Keeps generator loading within precise limits, preventing overloads and extending equipment life.

• Manual Override Functionality: Allows operators to bypass automatic logic when needed for maintenance or system changes.

• Energy Efficiency: Reduces fuel consumption by optimizing the number of generators in operation based on load demand.

• Reliable Construction: Industrial-grade design for dependable operation in severe environmental conditions.

• Compact Form Factor: Easy to retrofit into existing systems or new installations without major redesign.

• Enhanced Safety: Built-in protections prevent inadvertent connection/disconnection under unsafe conditions.

• Global Compliance: Certified to meet international safety and reliability standards.

Frequently Asked Questions (FAQ)

1. Q: What does the Woodward 9905-096 control module do?

   A: It automatically controls the connection and disconnection of generators based on load demand and system conditions.

2. Q: Can this unit be used with different types of generators?

   A: Yes, it is compatible with various generator types and governors as long as standard interface signals are used.

3. Q: Is manual control possible if automation fails?

   A: Yes, the module features manual override options for direct operator control.

4. Q: How does it know when to load or unload a generator?

   A: It monitors system load and frequency to determine the optimal time to add or shed generator capacity.

5. Q: Can it be used in marine applications?

   A: Absolutely. It’s designed to operate in harsh environments including marine and offshore installations.

6. Q: Is the 9905-096 compatible with PLC systems?

   A: Yes, it can interface with PLCs for remote monitoring and logic integration.

7. Q: What is the physical size of this unit?

   A: It measures 215.9 x 190.5 x 50.8 mm and weighs 1.02 kg.

8. Q: Does it support redundant power inputs?

   A: Redundant power may be configured externally; the device itself supports 18–32 VDC input.

9. Q: Can this controller be used in an off-grid microgrid system?

   A: Yes, it’s ideal for controlling generator loading in isolated power systems.

10. Q: How is the unit mounted in a control panel?

    A: It is panel-mounted using standard fasteners and fits into existing generator control setups.
