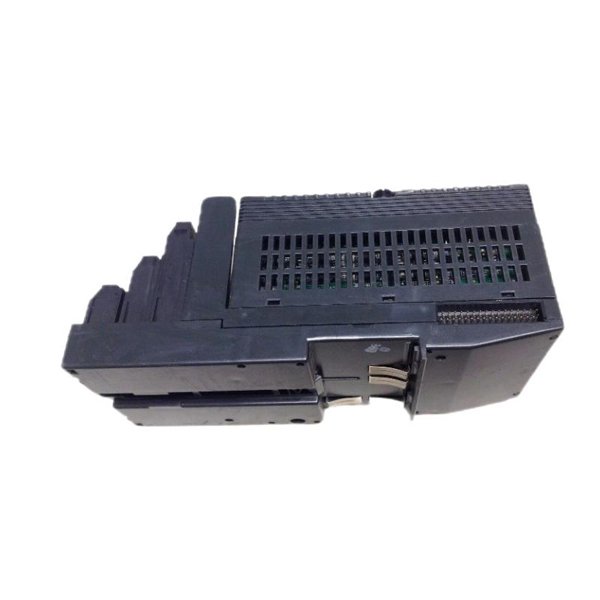

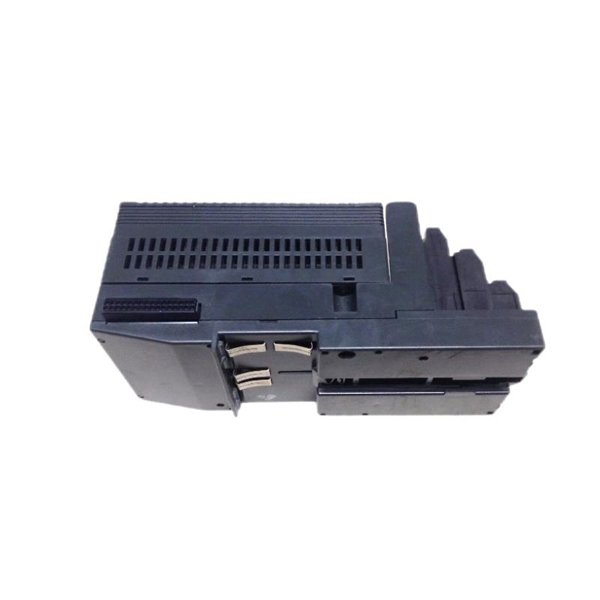

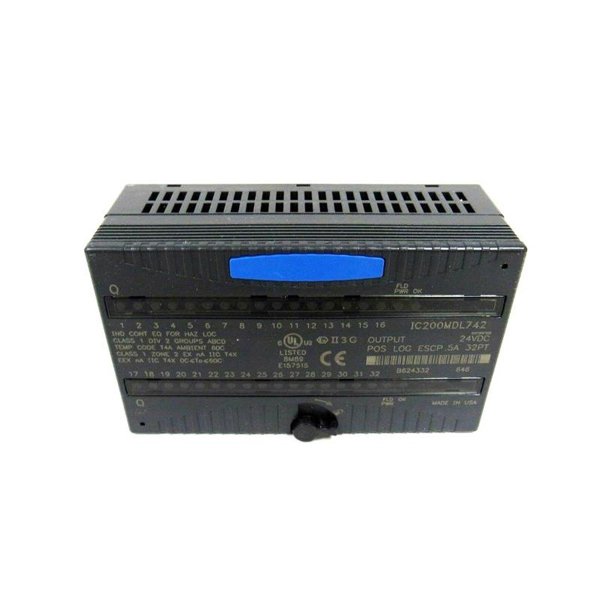

General Electric IC200MDL742H VersaMax Discrete Output Module

The GE IC200MDL742H VersaMax Discrete Output Module is a high-performance component from the VersaMax I/O series, specifically designed to provide reliable and efficient discrete output control within industrial automation systems. This module is engineered to control devices such as actuators, relays, and solenoids by providing a 120 VAC output. It integrates seamlessly into GE’s VersaMax PLC system, offering flexibility, reliability, and scalability in a wide range of applications.

The IC200MDL742H module is built with ruggedness and efficiency in mind, ensuring that it operates reliably in harsh industrial environments. With a compact design, it supports 16 discrete output channels, each capable of handling up to 1.0 A of current, making it ideal for high-power applications. The module is easy to integrate, mount, and maintain, which ensures that system downtime is minimized and productivity is maximized.

Product Specifications

Below is a detailed table outlining the specifications of the GE IC200MDL742H VersaMax Discrete Output Module:

Product Applications

The GE IC200MDL742H VersaMax Discrete Output Module is ideal for various industrial applications where high-power control is required. These include:

• Manufacturing Plants: The module is used to control industrial equipment, such as conveyors, robotic arms, and other automated machinery.

• Automated Assembly Lines: It provides discrete control for controlling machines and devices that handle material and parts during the assembly process.

• Power Generation: The module can control the activation of relays, circuit breakers, and other safety-critical devices within power generation systems.

• Process Control: In chemical, food, and pharmaceutical industries, it is used to control pumps, actuators, and other devices that handle the flow of materials.

• Energy Management: Used in systems to control energy-related equipment such as heating elements, cooling units, and large motors.

• Water Treatment Plants: Controls pumps, valves, and actuators to regulate the flow and treatment of water.

Product Advantages

The GE IC200MDL742H offers a range of advantages that enhance the performance of automation systems:

1. High Output Capacity: With 1.0 A per output, it can handle higher power loads, making it suitable for demanding applications.

2. Flexibility in Integration: Easily integrates with VersaMax PLCs and can be adapted for various system configurations.

3. Compact and Durable: Its compact design and rugged construction ensure that it performs reliably in industrial environments with limited space.

4. Reliable Performance: Designed to work in challenging conditions, this module offers high operational reliability, even in extreme temperatures ranging from -20°C to 60°C.

5. Simple Mounting: The DIN rail mounting option ensures quick and straightforward installation, reducing downtime during setup.

6. Efficient Power Consumption: Consumes only 2.5 W of power, making it energy-efficient for long-term operation.

7. Enhanced Isolation: The module offers 1500 V AC isolation, ensuring the safety and reliability of connected devices.

8. Scalability: The modular design allows for easy system expansion, making it ideal for evolving automation needs.

FAQ

1. What is the input voltage of the GE IC200MDL742H?

   • The input voltage of this module is 120 VAC.

2. How many outputs does the IC200MDL742H module have?

   • The module features 16 discrete output channels.

3. What is the maximum output current per channel?

   • Each output can handle up to 1.0 A of current.

4. Can this module be used outdoors?

   • This module is designed for industrial use and should be protected from direct exposure to outdoor elements. It can be used in controlled environments.

5. What is the mounting type for the IC200MDL742H module?

   • The module is designed for DIN rail mounting.

6. What is the temperature range for the module’s operation?

   • The module operates in a temperature range of -20°C to 60°C.

7. Is the module isolated?

   • Yes, it provides 1500 V AC isolation for safety and reliable operation.

8. What are the dimensions of the module?

   • The dimensions are 66.8 × 163.5 × 70 mm .

9. What is the weight of the IC200MDL742H module?

   • The module weighs 0.15 kg.

10. What are the primary applications for this module?

    • It is used in manufacturing, process control, automated assembly lines, power generation, and water treatment systems.
