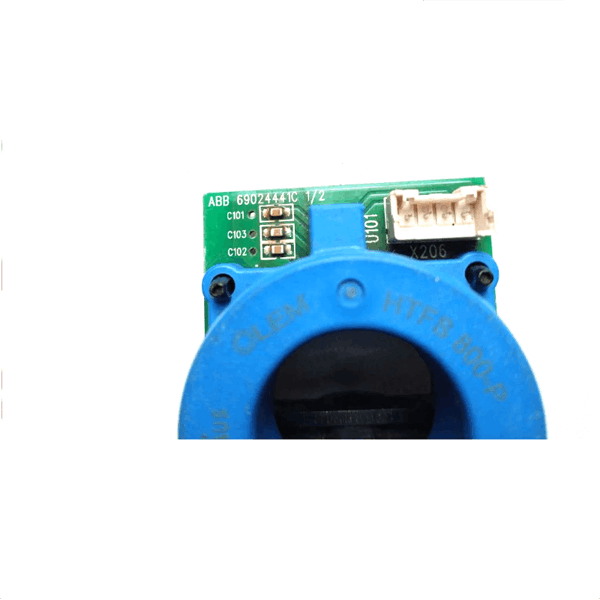

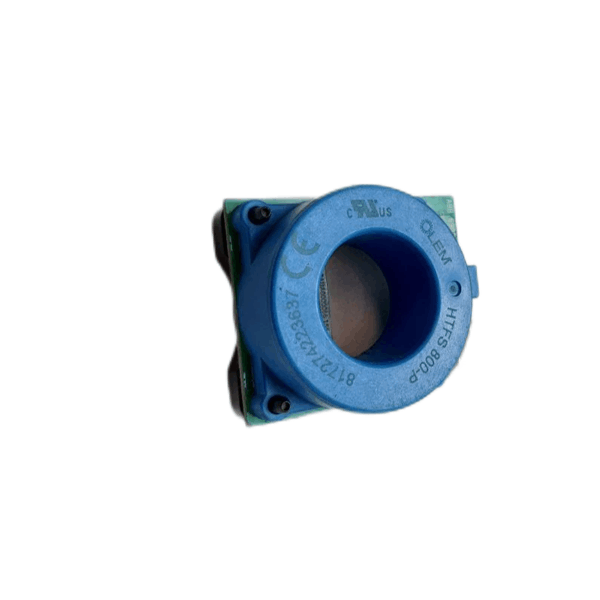

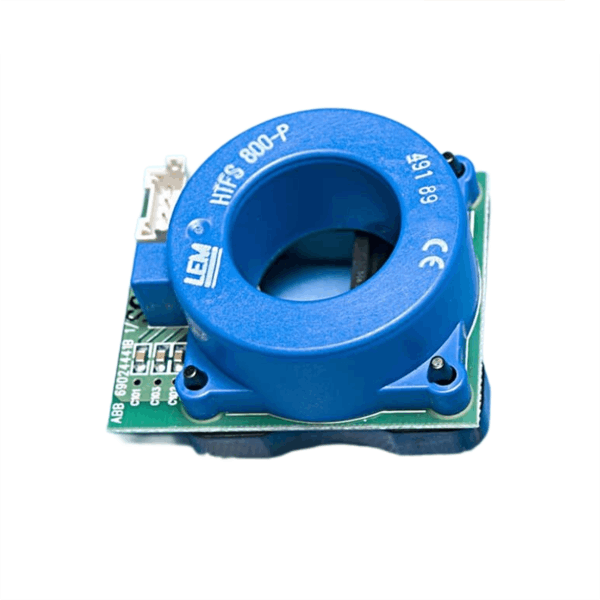

ABB ZCUR-791 3AUA0000071032D Current transformer board

The module is engineered to meet the demanding requirements of industrial environments, including temperature fluctuations, high vibration zones, and electromagnetic noise. With ABB’s stringent quality and compatibility standards, the ZCUR-791 is well-suited for both new installations and retrofit upgrades.

Technical Specifications

Product Applications

• Industrial Drives: Used in ACS800/ACS880 series drives for current feedback in VFD systems.

• Process Automation: Suitable for measuring motor load in continuous process control environments.

• Pulp and Paper Plants: Ensures accurate motor control for machinery like paper rollers and pumps.

• Chemical & Oil Industries: Critical for real-time current monitoring in hazardous environments.

• Renewable Energy Systems: Monitors and controls generator or inverter outputs.

• OEM Machinery: Integrated into proprietary systems for automation and protection feedback.

Product Advantages

• High Accuracy: Ensures precise current monitoring essential for safe motor operations.

• Compact Design: Slim module fits easily within ABB drive cabinets, aiding space optimization.

• Durability: Robust design withstands harsh industrial conditions such as vibrations and temperature fluctuations.

• Plug-and-Play Compatibility: Easy to integrate with ABB ACS800 and ACS880 drives without additional wiring complexity.

• Diagnostic Capabilities: Provides real-time current data which is essential for fault diagnosis and preventive maintenance.

• Extended Lifecycle Support: Backed by ABB’s long-term support policy for industrial automation parts.

FAQs

Q1: What is the main function of the ABB ZCUR-791 module?

A1: It measures the current in motor control systems and feeds this data back to the drive for monitoring and control.

Q2: Is the ZCUR-791 compatible with ACS880 drives?

A2: Yes, it is fully compatible with ACS800 and ACS880 drive series.

Q3: Can this module be used in outdoor installations?

A3: Not directly. It must be housed within a protected enclosure or panel, as its rating is IP20.

Q4: How is the ZCUR-791 mounted?

A4: It is a plug-in module and mounts directly into the drive’s internal slot.

Q5: What voltage does it operate at?

A5: It operates at 24 VDC, typically supplied from the drive’s control board.

Q6: Does it support redundant configuration?

A6: The module itself does not support redundancy, but it functions reliably within redundant system architectures.

Q7: What maintenance is required for this module?

A7: Routine inspection for dust and loose connections. No active maintenance is required.

Q8: Is firmware update required for ZCUR-791?

A8: No, the module functions independently of firmware updates. It has fixed hardware-based functionality.

Q9: What is the typical response time of the current sensing?

A9: It offers high-speed feedback, typically in the range of microseconds to milliseconds depending on system configuration.

Q10: Where can I purchase or replace the ABB ZCUR-791?

A10: It can be sourced through ABB distributors, authorized dealers, or ABB’s official spare parts platform.
