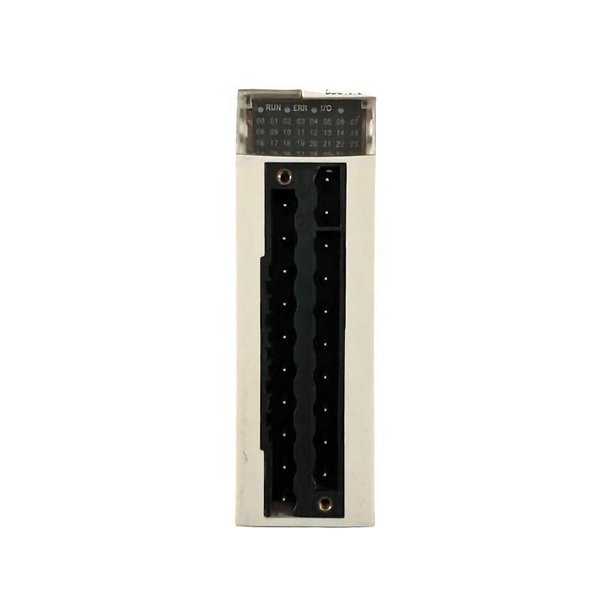

Schneider BMXDD01602 Discrete Output Module

The Schneider Electric BMXDD01602 is a discrete output module that belongs to the Modicon M340 series, which is widely used in industrial automation and control systems. This specific module provides 16 transistor outputs (sink type) designed for high-speed switching in 24 VDC logic control applications. As a compact and efficient digital output solution, the BMXDD01602 is engineered to ensure reliable communication between the controller and field devices in environments demanding fast response times and robust durability.

Its integration with the Modicon M340 platform enhances its capabilities in terms of flexibility, modular design, and system scalability. Whether deployed in discrete manufacturing, packaging, or infrastructure automation, this module provides accurate control and quick response across multiple outputs, making it a vital component in modern industrial PLC systems.

Product Specifications

Product Applications

The Schneider BMXDD01602 module is used in a variety of industrial environments that require fast, precise digital control. Typical application areas include:

• Automated production lines and discrete manufacturing

• Packaging machinery and material handling systems

• Municipal water treatment plants and pump control

• Automotive assembly operations

• Building automation and HVAC control

• Transportation infrastructure (e.g., traffic signal control)

• Food and beverage industry for packaging and sorting lines

Its compact design and fast response make it ideal for systems requiring high-speed output switching and centralized or distributed control systems.

Product Advantages

• High-density design: 16 outputs in a single compact module maximize cabinet space efficiency.

• Fast switching performance: Suitable for time-critical automation systems with low latency.

• Robust industrial compatibility: Designed to function reliably in harsh industrial environments.

• Seamless integration: Fully compatible with Modicon M340 PLCs and EcoStruxure™ systems.

• Diagnostic LEDs: Each output has its own LED for real-time diagnostics and easy troubleshooting.

• Protection features: Built-in short-circuit protection safeguards both module and connected loads.

• Modular system scalability: Easily expandable within a Modicon architecture with flexible I/O options.

Frequently Asked Questions (FAQ)

1. What type of output does the BMXDD01602 module support?

   It supports transistor-type (sink) outputs suitable for 24 VDC logic control systems.

2. Can this module be used in safety-critical applications?

   It is not safety-rated; for safety applications, Schneider offers SIL or PL-rated modules in a different category.

3. Is the BMXDD01602 hot-swappable?

   No, the module must be installed or removed with the power off to avoid system damage or unsafe operation.

4. How are the channels protected against overload?

   Each output includes short-circuit and thermal protection to prevent damage during overload conditions.

5. What is the maximum load per output channel?

   Each channel supports up to 0.5 A, with a total module current of 4 A.

6. Does this module support output diagnostics?

   Yes, each channel features an LED to indicate output status, simplifying real-time monitoring and maintenance.

7. What kind of wiring terminals does the module use?

   It uses removable terminal blocks for quick wiring and easy maintenance during replacements or upgrades.

8. Is the module compatible with other Modicon series PLCs?

   It is primarily designed for the M340 series but can interface with other Modicon platforms via communication modules.

9. Can I use inductive loads directly with this module?

   Yes, but it is recommended to use appropriate flyback diodes or protection circuits for inductive loads such as relays.

10. How often should this module be maintained or inspected?

    Routine inspection every 12–18 months is recommended to check for dust, corrosion, or loose wiring in harsh environments.
