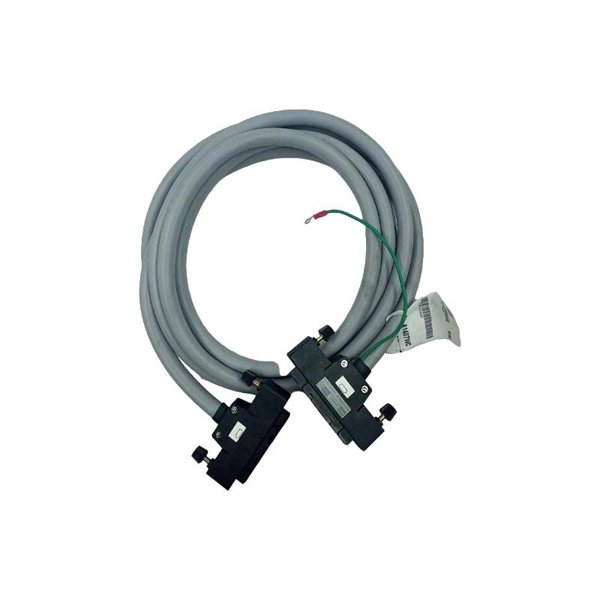

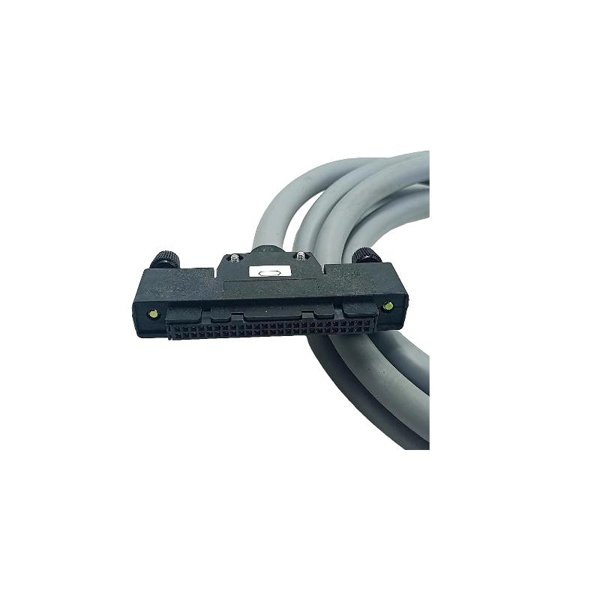

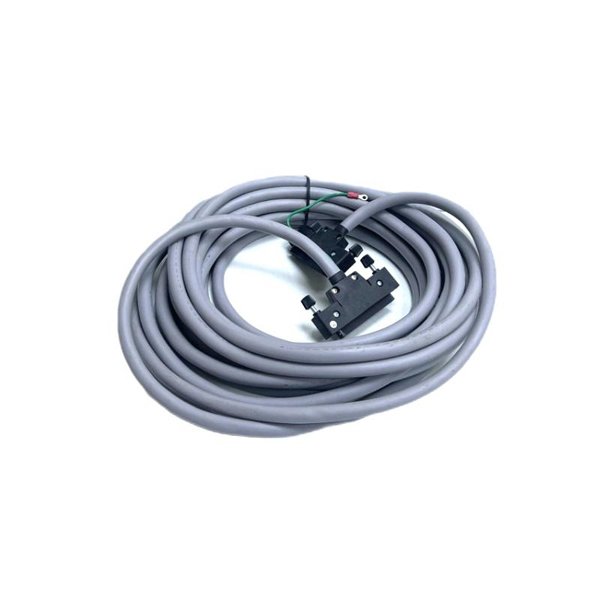

Yokogawa AKB331 Signal Cable

The Yokogawa AKB331 Signal Cable is a premium-grade industrial signal transmission cable engineered for compatibility with Yokogawa’s high-reliability process control and automation systems. Designed to ensure precise and low-noise transmission of analog and digital signals, the AKB331 is a vital interconnection component in control cabinets, distributed control systems (DCS), safety instrumented systems (SIS), and field device integration setups. Its robust shielding, flame-retardant insulation, and industrial durability make it suitable for mission-critical environments including petrochemical plants, power stations, and manufacturing automation systems.

Whether connecting I/O modules to control processors or sensors to field junction boxes, the AKB331 provides outstanding performance in noise immunity, flexibility, and long-term operational stability.

Technical Specifications

Applications

The AKB331 Signal Cable is designed for high-reliability communication and data transmission within Yokogawa’s instrumentation network. Its key application areas include:

• Control Cabinets: Connecting analog input/output modules to field terminals.

• Process Plants: Transmitting sensor data from temperature, flow, and pressure transmitters to control systems.

• DCS Systems (CENTUM VP, CS3000): Used for signal integrity between system modules and field I/O.

• Chemical and Oil Refineries: Resistant to EMI and environmental challenges in hazardous areas.

• Power Generation: Ideal for turbine control, boiler monitoring, and auxiliary process communication.

• SIS and ESD Systems: Ensures secure and noise-free data for safety shutdown signals.

Advantages

• High Noise Immunity: Aluminum shielding and twisted pair structure reduce electrical noise and interference.

• Durable Outer Jacket: Flame-retardant and oil-resistant PVC sheath enhances longevity in industrial environments.

• Flexible Installation: Compact diameter and multi-core construction enable easy cable routing and panel wiring.

• Reliable Performance: Maintains signal quality over long distances and in electrically noisy environments.

• System Integration: Fully compatible with Yokogawa DCS, PLCs, and SIS systems.

• Safety Standards Compliant: Meets global industrial standards for flame resistance and electrical insulation.

• Reduced Downtime: Designed for extended service life with minimal maintenance requirements.

• Multiple Length Options: Pre-cut and custom lengths reduce installation time and material waste.

Frequently Asked Questions (FAQ)

1. What is the primary use of the AKB331 Signal Cable?

   It is used to carry low-voltage analog and digital signals between Yokogawa control devices and field instruments.

2. Can the AKB331 be used in high-EMI environments?

   Yes, its shielded construction is specifically designed to perform well in EMI-prone industrial settings.

3. Is this cable suitable for outdoor installations?

   It can be used in protected outdoor environments, but for exposed applications, additional conduit or UV-resistant versions are recommended.

4. What conductor material is used in the AKB331?

   The cable uses annealed tinned copper for excellent conductivity and corrosion resistance.

5. Is the cable jacket oil-resistant?

   Yes, the outer PVC jacket is oil- and flame-resistant, suitable for most industrial environments.

6. Does it come in standard or custom lengths?

   Both. Standard lengths like 10m and 20m are available, and it can also be ordered in custom lengths.

7. Can this be used with non-Yokogawa systems?

   Technically yes, it can be used with any compatible voltage-rated device, but it’s optimized for Yokogawa systems.

8. What is the voltage rating of the AKB331?

   It is rated for up to 300V AC/DC.

9. What is the typical weight of a 20-meter cable?

   0.9 kg.

10. What safety certifications does the cable meet?

    It conforms to IEC standards for flame retardancy, electrical insulation, and industrial-grade durability.
